Chapter 2
OPERATIONS
2.11
MARKER SETTING
2-89
2
INSTRUCTION MANUA

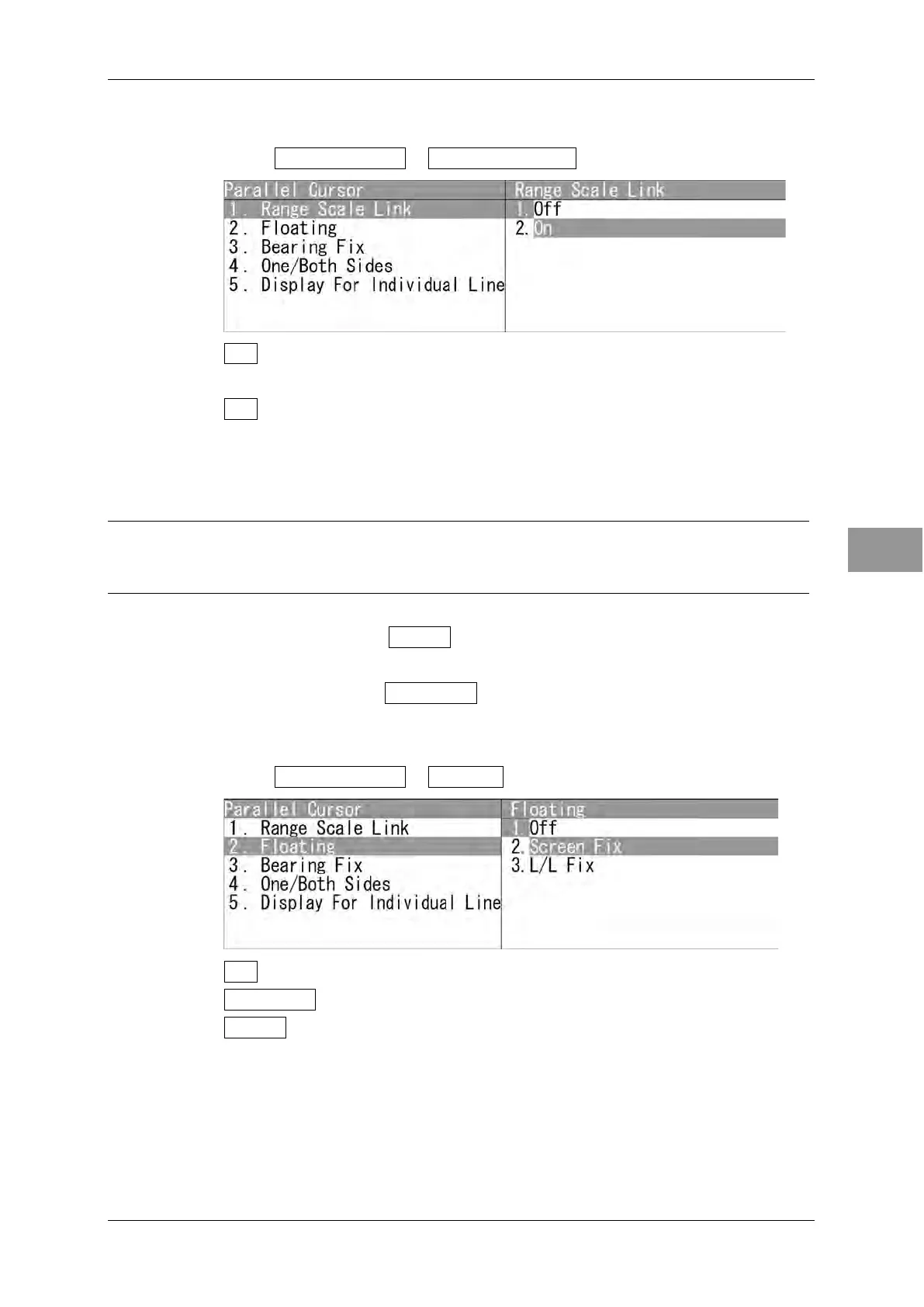

Range Scale Link
When a range is switched, parallel cursors link to a radar range scale for display.
1 Open Parallel Cursor - Range Scale Link .
Off : If the range is switched, the width between parallel index lines changes in
accordance with the radar range scale.
On : If the range is switched, the width between parallel index lines remains
fixed.
Setting the mode to move the starting point of parallel cursor (Floating setting)
Reference:
Course and latitude/longitude data input is required for floating setting.
When this function is set to L/L Fix and the starting point of a parallel cursor is moved
to a position, the starting point can be fixed at the latitude and longitude of that position.
When the function is set to Screen Fix , the starting point of a parallel cursor is fixed
on the radar display. The starting point is always indicated at the same position on the
radar display even when the own ship has moved.
1 Open Parallel Cursor - Floating .
Off : Floating mode is disabled.
Screen Fix : Fixes the start point of parallel cursor to the radar display.
L/L Fix : The starting point of parallel cursor is fixed at specific latitude and
longitude.
To Next Page
