Chapter 2
OPERATIONS
2.14
FUNCTION KEY SETTINGS
2-119
2
INSTRUCTION MANUA

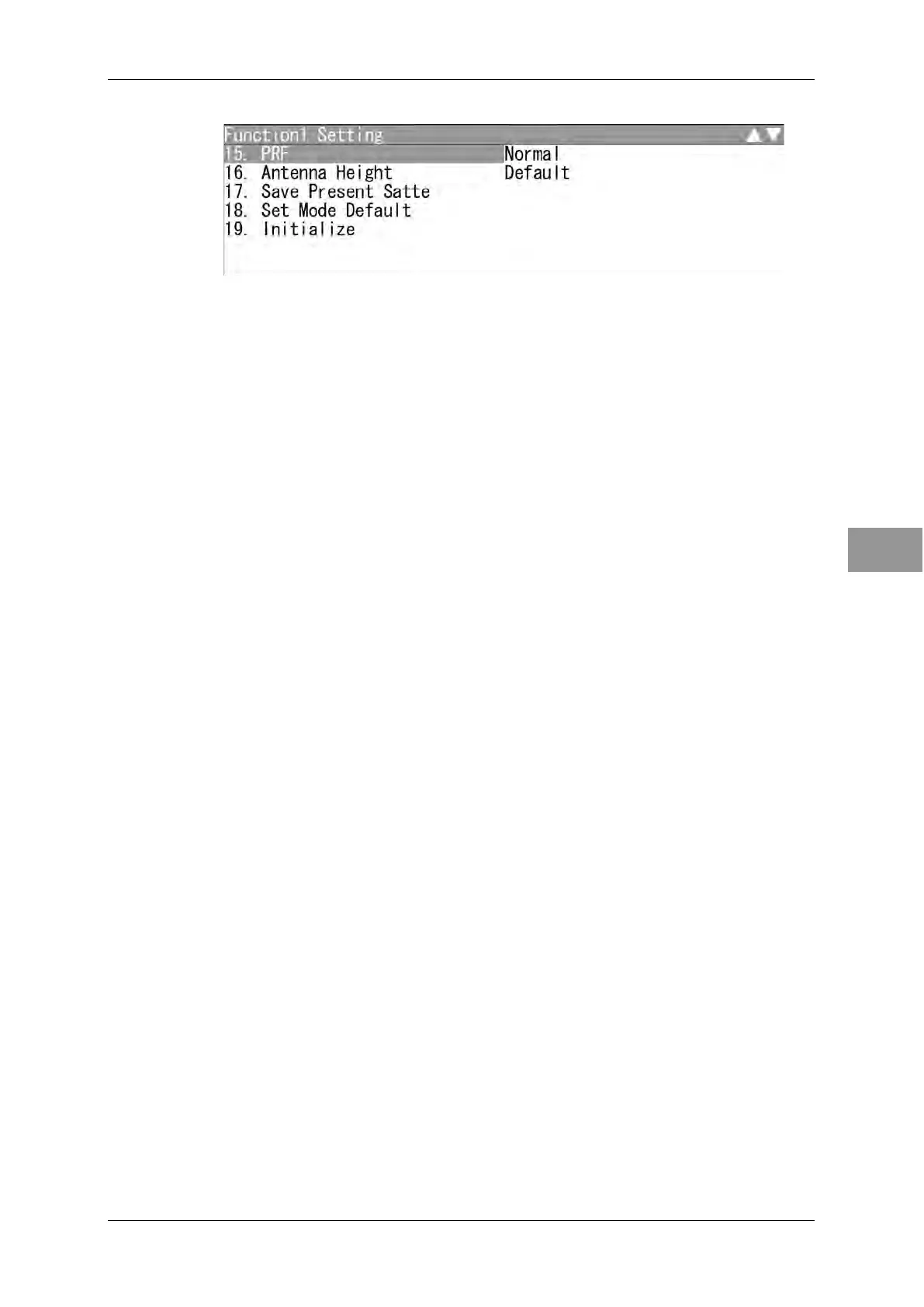

îš„ From "PRF" to "Initialize"

z PRF
Operate the same way for the scanner settings in Adjust Menu.
For details of operations, see Section "4.6 SCANNER" of INSTALLATION MANUAL.
z Antenna Height
y Changes the antenna height setting.
y The STC/FTC curve is changed.
Default: Activates the general signal processing mode.
-5m: Set the antenna height under 5 m.
5-10m: Set the antenna height 5m to 10m.
10-20m: Set the antenna height 10 m to 20 m.
20m-: Set the antenna height over 20 m.
z Save Present State
Registers the currently used settings as function settings.
z Set Mode Default
Sets the initial value of a selected function setting mode. Select this item to change the
current function mode to the initial value.
z Initialize
Sets the function settings to the factory-set values. Select this item to change all the
function settings to the factory-set values.
To Next Page
