Chapter 2
OPERATIONS
2.17
PLOTTER UNIT
2-149
2
INSTRUCTION MANUA
Loading Marks/Lines/Own Tracks
Loads marks, lines and own tracks from USB.

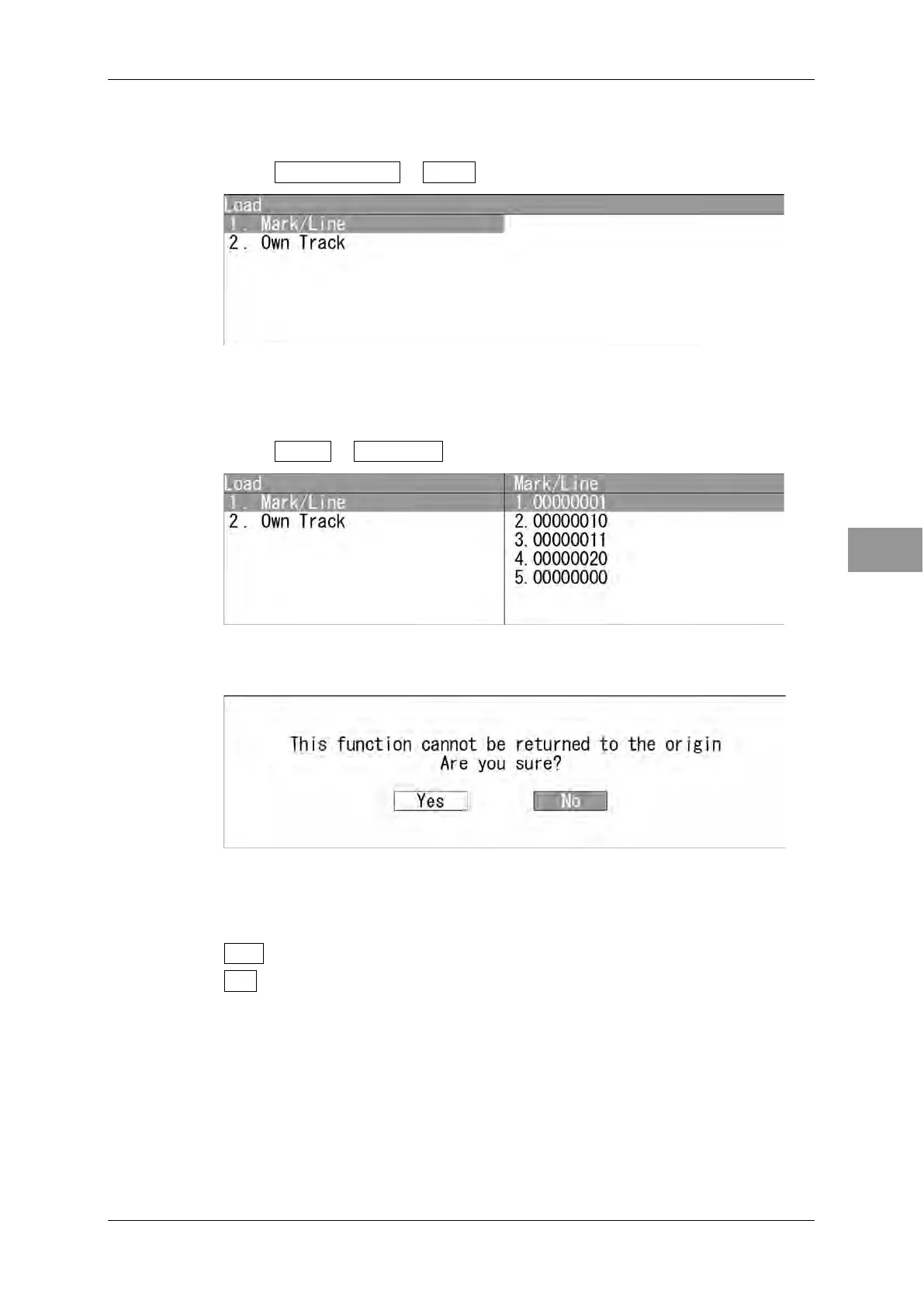

1 Open File Operation - Load .
"Load" menu appears.
z Loading Mark/Line
1 Open Load - Mark/Line .
"Mark/Line" menu appears.
Turn the [MULTI] control to select the file number.
When selecting the file, the dialog box "This function cannot be returned to the
origin. Are you sure?" appears.
Yes
: Loads data via USB.
No : Does not load data via USB.
When selecting "Yes", "Processing." appears on the radar screen.
After saving is finished, the screen returns to "Erase" menu.
When selecting "No", the screen returns to "Erase" menu.
To Next Page
