M1
7BDRD0042
HIGH SPEED MOTOR CBP-169
HIGH SPEED MOTOR
CONTROL CIRCUIT
CCB-665
MD1
HIGH SPEED MOTOR
DRIVE CIRCUIT
TD12900-244
2 BPE
1 BP
J501
B6B-PH-K-S(LF)(SN)
3 SPEED+
4 SPEED-
5 START+
6 START-
J503
B10B-PH-K-S(LF)(SN)
J1
B10P-SHF-1AA(LF)
J3
B2P-VH-B
J4
B3P-VH-B
J1
B6P-SHF-1AA(LF)
P501
P503
+5V 1
SGND 2
FG(BP) 3
SPEED 4
Vo1 GND 5
SGND 6
ALARM 7
CW/CCW 8
Start/Stop 9
Brake 10
MOTOR UNIT INTERCONNECTION CFS-1
W501 7ZCRD1651*
W503
7ZCRD1653*
W502
7ZCRD1652*
1 +5V
2 SGND
3 FG
4 SPEED
5 Vo1 GND
6 SGND
7 ALARM
8 CW/CCW
9 Start/Stop
10 Brake
1 MO+
2 MO-
P3P1
MO+ 1
MO- 2
1 MO+
2 MO-
J504
B2P-VH(LF)(SN)
J502
350428-1
P504
P502
W504 7ZCRD1654*
P101
1
2
1 2
7ZCRDＯＯＯＯ*
J101
1-480698-0
APPENDIX
APPENDIX-8

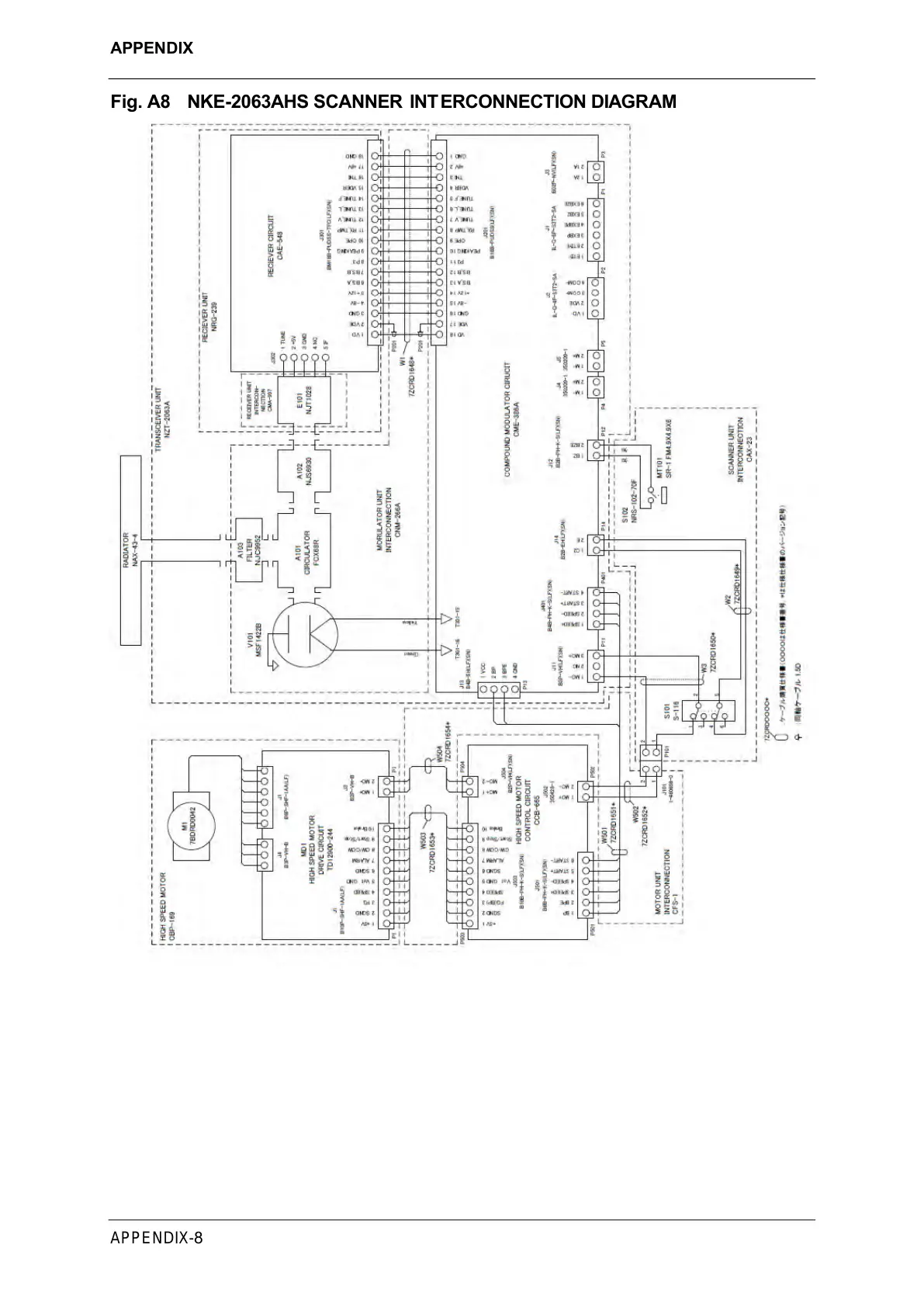

Fig.
A8
NKE-20
63AHS SCANNER
INTERCONNECTION DIAGRAM
