Chapter 5 VARIOUS FUNCTIONS

Reference:

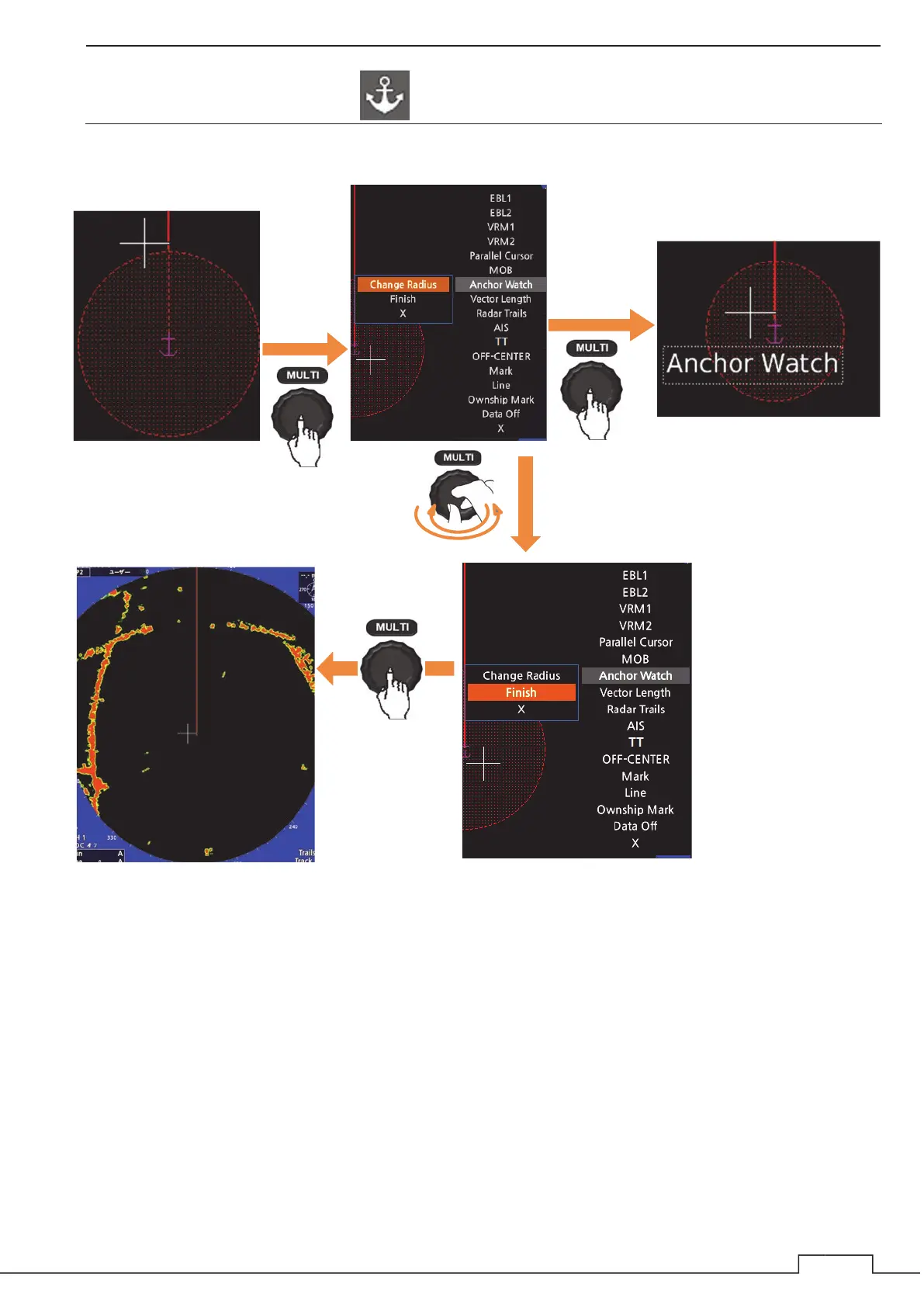

If running Anchor Watch, display icon on left of screen.

Finish Anchor Watch function

If select “Change Radius”, the radius of the

monitoring circle can be changed.

If select “Finish”, the monitoring circle is

removed.

Select "Anchor watch" from

the MULTI control menu.
