Chapter 5 VARIOUS FUNCTIONS

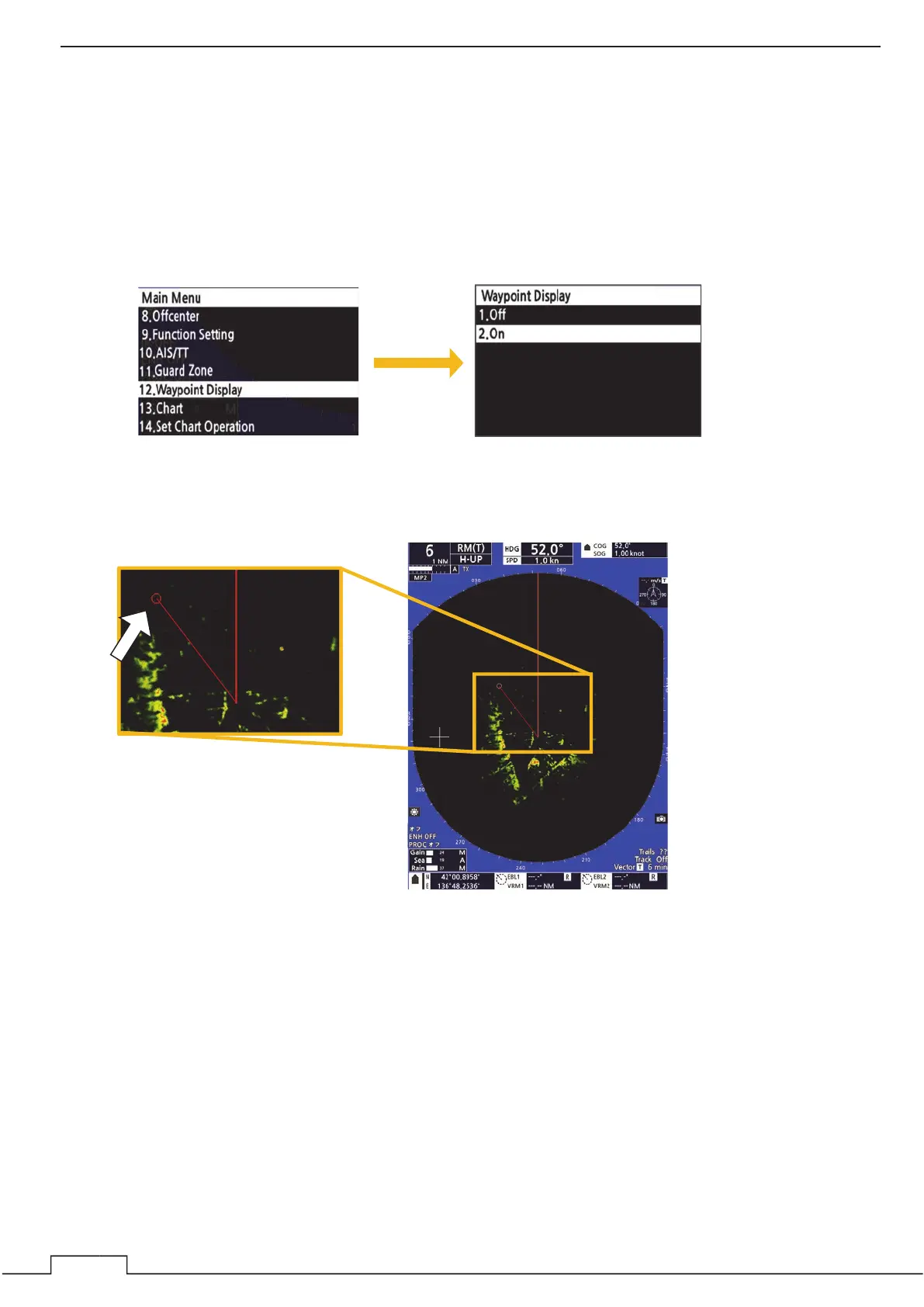

5.26 WAYPOINT DISPLAY

When waypoint information is received from the navigation equipment, the waypoint mark appears on the

radar display.

Set the display on/off.

When the function is turned on, the waypoint mark is displayed on the radar screen as red circle.

It is connected Onwship and a Waypoint with a straight red line.

䐟

Press the MENU button

to open the Main Menu.

䐠

Select “Waypoint Display.”
