EQUIPMENT APPEARANCE
xxviii
EQUIPMENT APPEARANCE
JMA-3400 is a series name.
Individual TYPE name is changed by combination of units.
TYPE JMA-3404 NCD-2364 + NKE-2043
TYPE JMA-3406 NCD-2364 + NKE-2063A/AHS
TYPE JMA-3411-4 NCD-2364 + NKE-2103-4/4HS
TYPE JMA-3411-6 NCD-2364 + NKE-2103-6/6HS

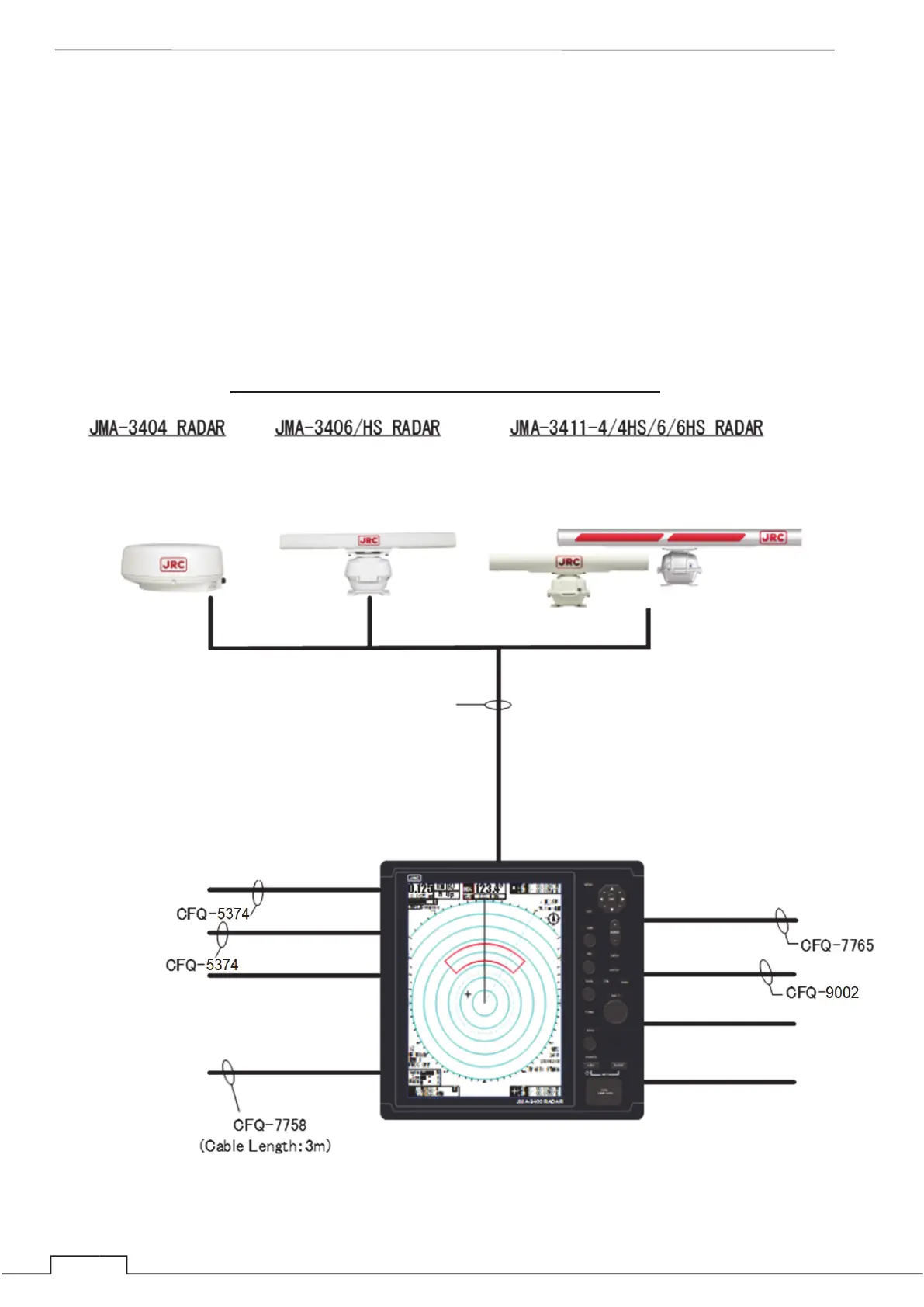

JMA-3400 Series system diagram
2feet Scanner Unit
(NKE-2043)
Radome diameter 620mm
12inch SVGA COLOR LCD DISPLAY
(NCD-2364)
(10.8-31.2VDC)
Installation cable (option):
H-CFQ-6912-5, H-CFQ6912-10,
CFQ-6912-15, H-CFQ6912-20,
H-CFQ6912-30
LENGTH: 5m/10m/15m/20m/30m
External Signal input
3.9feet Scanner Unit
(NKE-2063A/AHS)
Swing circle: ij1220mm
4feet, 6feet Scanner Unit
(NKE-2103-4/4HS/6/6HS)
4feet swing circle: ij1320mm
6feet swing circle: ij1910mm
Ship’s Main Power
LAN1 port
(echo output, etc.)
NMEA3 port
Alarm output 1ch
NMEA1,2 port
CAN 1port
JRC GPS 1port
DVI 1port (external monitor)
USB 1port (USB mouse, etc.)
