Chapter 6 OPTION AND OTHER FUNCTIONS
1
6.2 EXTERNAL MONITOR OUTPUT
If you installed the External monitor output, waterproofing (IPX5) of rear
side of display unit is no guaranteed.
Through the additional interface, you can lead out the video signal to an external monitor. Additional external
port is using a DVI connector. External monitor’s display pixels are 800x600 dots (SVGA). It is necessary that
power supply to the external monitor separately. Since the output screen is a vertical screen, use a monitor
that can hold the display vertically. DVI output signal can use 5m by driver IC specification but this length also
lay on the DVI cable kinds. (This is not guaranteeing the DVI cable length.)
6.3 RECTIFIER UNIT
The input voltage range is from DC +10.8V to DC +31.2V. (DC12-24V, -10%+30%).
The power consumption varies depending on the radar model name. Check the maximum power
consumption described in the "12.4 GENERAL SPECIFICATIONS."
If ship’s DC battery power supply is not enough to the operation of this radar, we strongly recommended that
to you use following option rectifier unit.
Rectifier unit NBA-5111: For JMA-3404, JMA-3406/HS and JMA-3412-4/4HS/6/6HS
Rectifier unit NBD-865: For JMA-3404 and JMA-3406

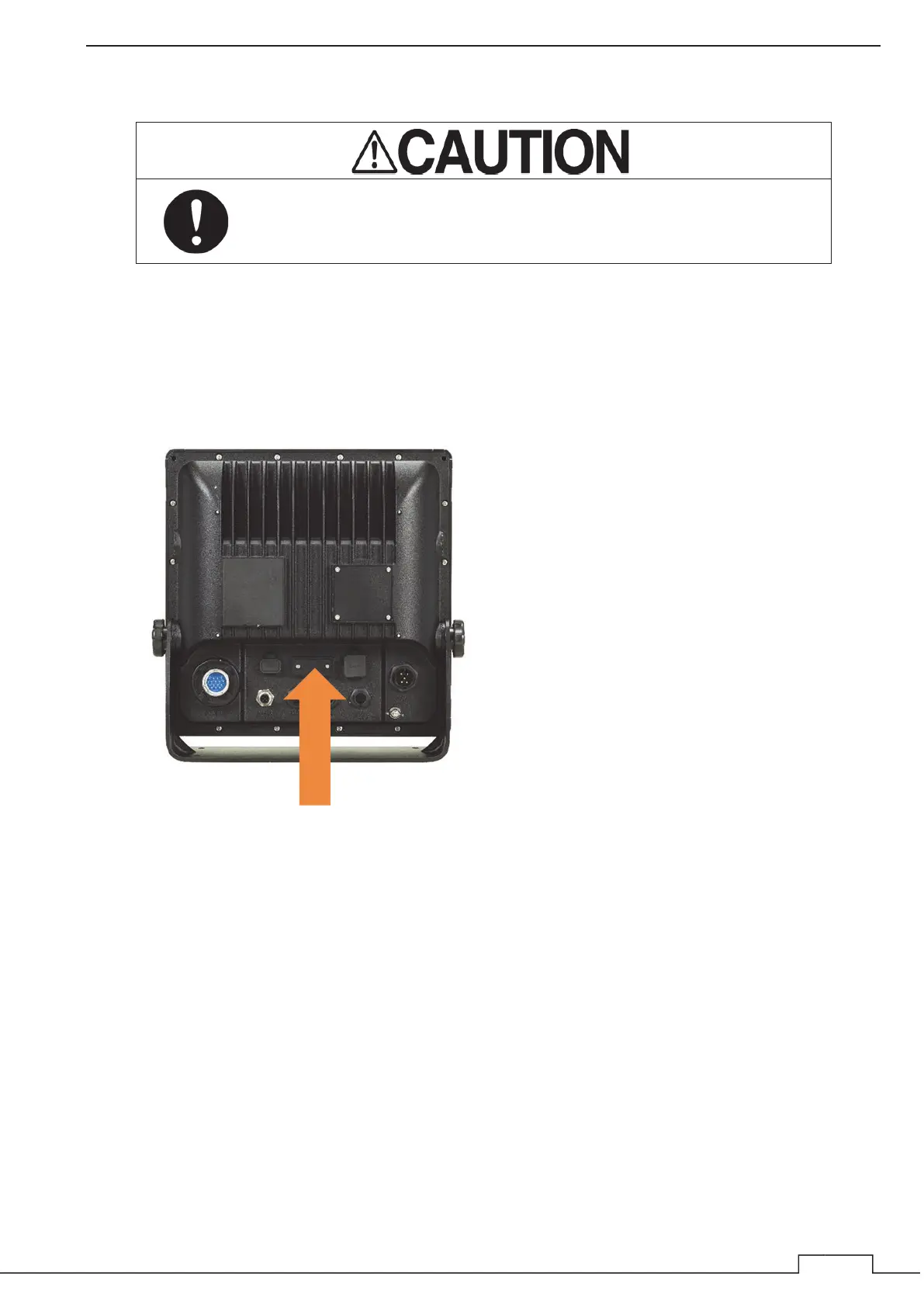

Loosen the screws (2 pcs.), and remove the cover.
Connect DVI cable.
External monitor mounting
