Chapter 5 VARIOUS FUNCTIONS
1
5.25.1 ZONE ALARM LEVEL
Detection levels of guard zone can be set to issue alarms.
Detection level can be set between 1 and 4. When setting to lower level of detection, the alarm operates for
weaker targets. When setting to higher level of detection, be careful because the alarm may not operate
properly.
࣭”Zone 1 Alarm Level” is setting for guard zone 1.
࣭”Zone 2 Alarm Level” is setting for guard zone 2.
5.25.2 ZONE MODE
Note:
The guard zone for which the Auto TT function can be set is only zone 1. An alarm function other than the
Auto TT function can be set in zone 2.
Set the mode of guard zone.
OFF: Function OFF.
Display:
Show the zone that you set. The alarm does not sound.
In: When a target entered the set zone, the alarm sounds.
Out: When a target went out of the set zone, the alarm sounds.
Auto TT: Target tracking automatically.

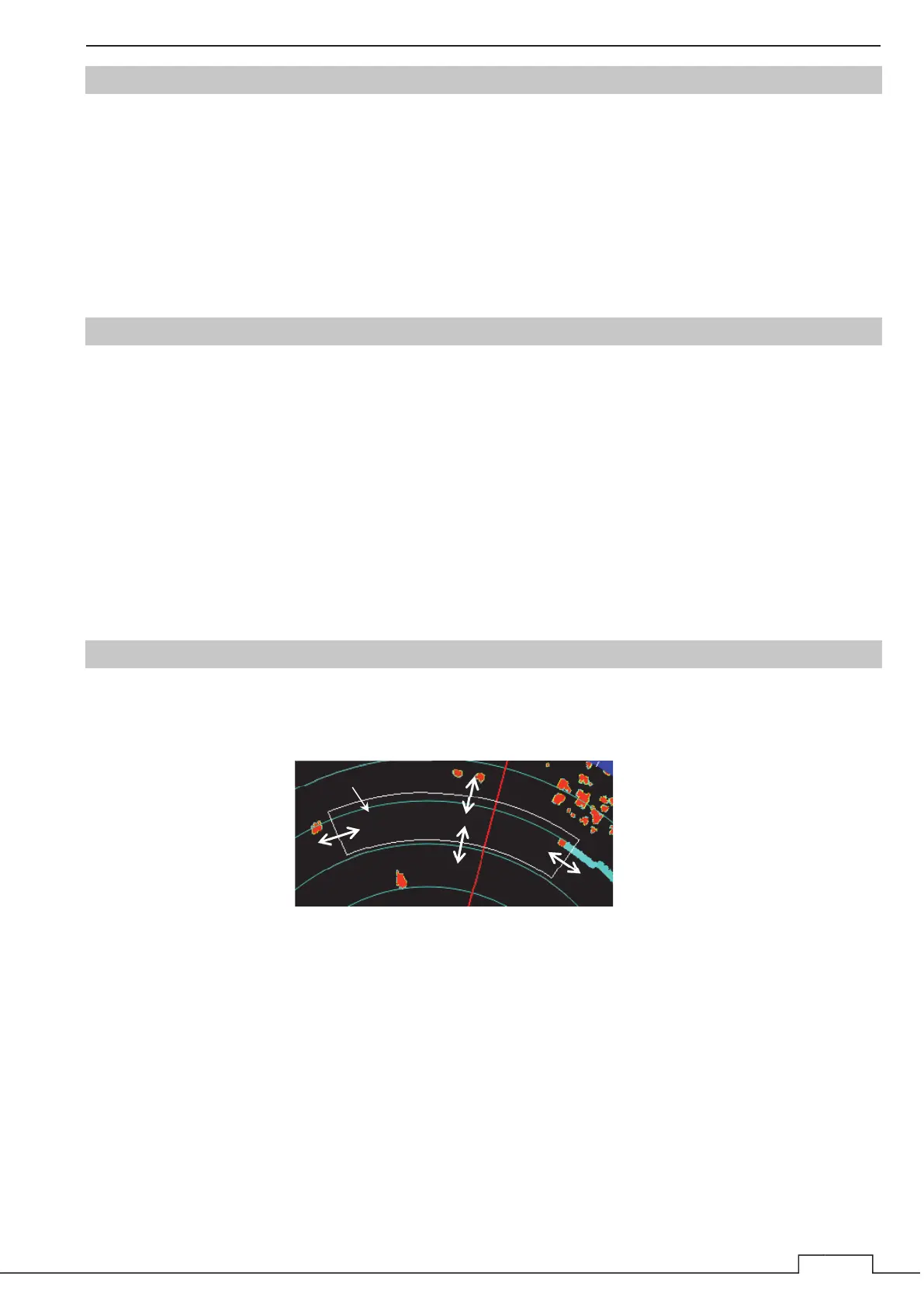

5.25.3 MAKE ZONE
Make the guard zone.
The mode of the zone is “Display” while making zone.
After you selected Make Zone1 or Make Zone2, appear “Guard Zone” below the cursor. This means in make
zone mode.
Procedure 1: Adjust to move ձside toward bearing by Multi. Press Multi and decide position.
2: Adjust to move ղside toward bearing by Multi. Press Multi and decide position.
3: Adjust to move ճside toward range by Multi. Press Multi and decide position.
4: Adjust to move մside toward range by Multi. Press Multi and decide position.
At the same time, the display of “Guard Zone” disappear and finish.
If you could not draw the guard zoon as you want, please one more time above procedure.
*XDUG=RQH
ᶅ
ᶆ
ᶇ
ᶈ
