Chapter 5 VARIOUS FUNCTIONS
5.19 SET OWN SHIP MOVEMENT
TM/RM: Switches between true and relative motion display modes. The bearing signal input is required
to display true motion.
In the true motion display mode, the own ship’s position on the radar screen moves
depending on its speed and course and the influence of the current. Land and other fixed
targets are fixed on the radar screen and only actually moving targets move on the radar
screen.
Bearing mode: Select the azimuth of the radar video.
The bearing signal input is required to display N-UP/C-UP.

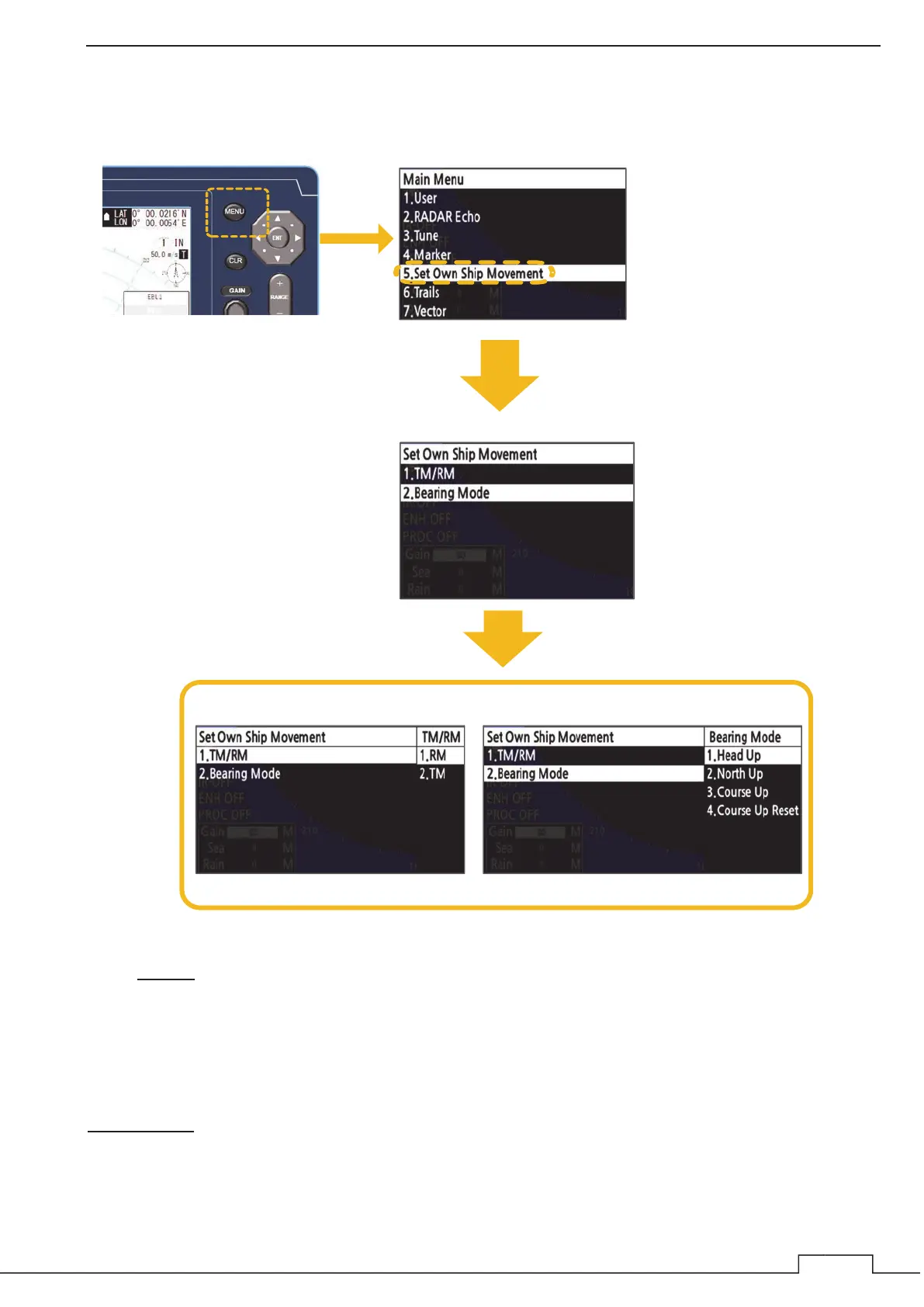

䐡 Select each menu.㻌
TM/RM
䐟 Press the MENU button.㻌䐠 Select “Set Own Ship Movement.”㻌
Bearing Mode
To Next Page
