Chapter 8 DETAIL PERFORMANCE SETTINGS

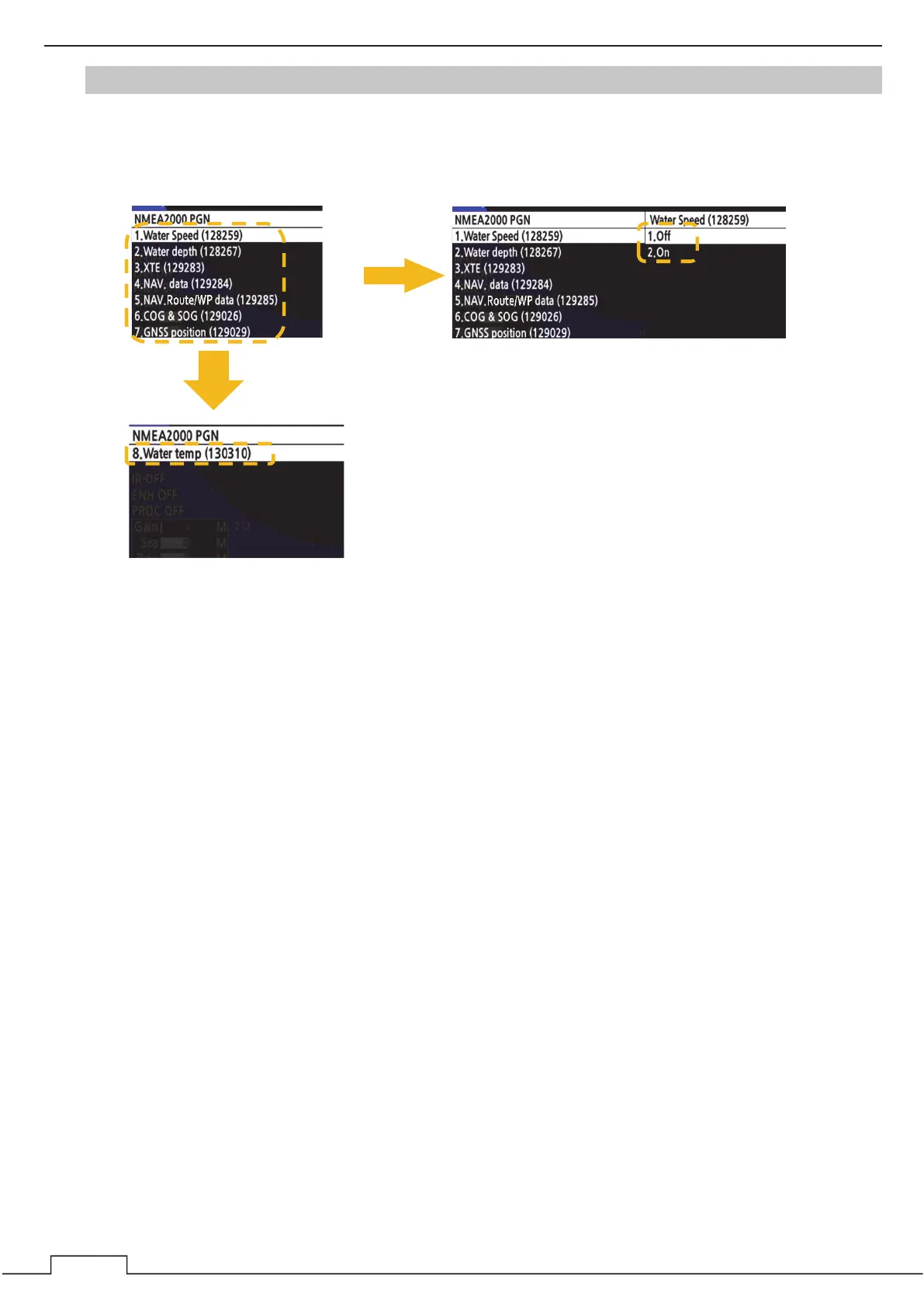

8.13.2 CAN PGN

Set whether to use this equipment for each CAN PGN.

For CAN PGN supported by this device, refer to 13.7 I/O SIGNALS.

Press the cross key (down)

or turn the

MULTI

control

to move to the next page.

㻌

*The setting items that are displayed are

the same even if you select something

other than “Water Speed.”

Select each setting item.㻌 Change ON / OFF.㻌
