Chapter 5 VARIOUS FUNCTIONS

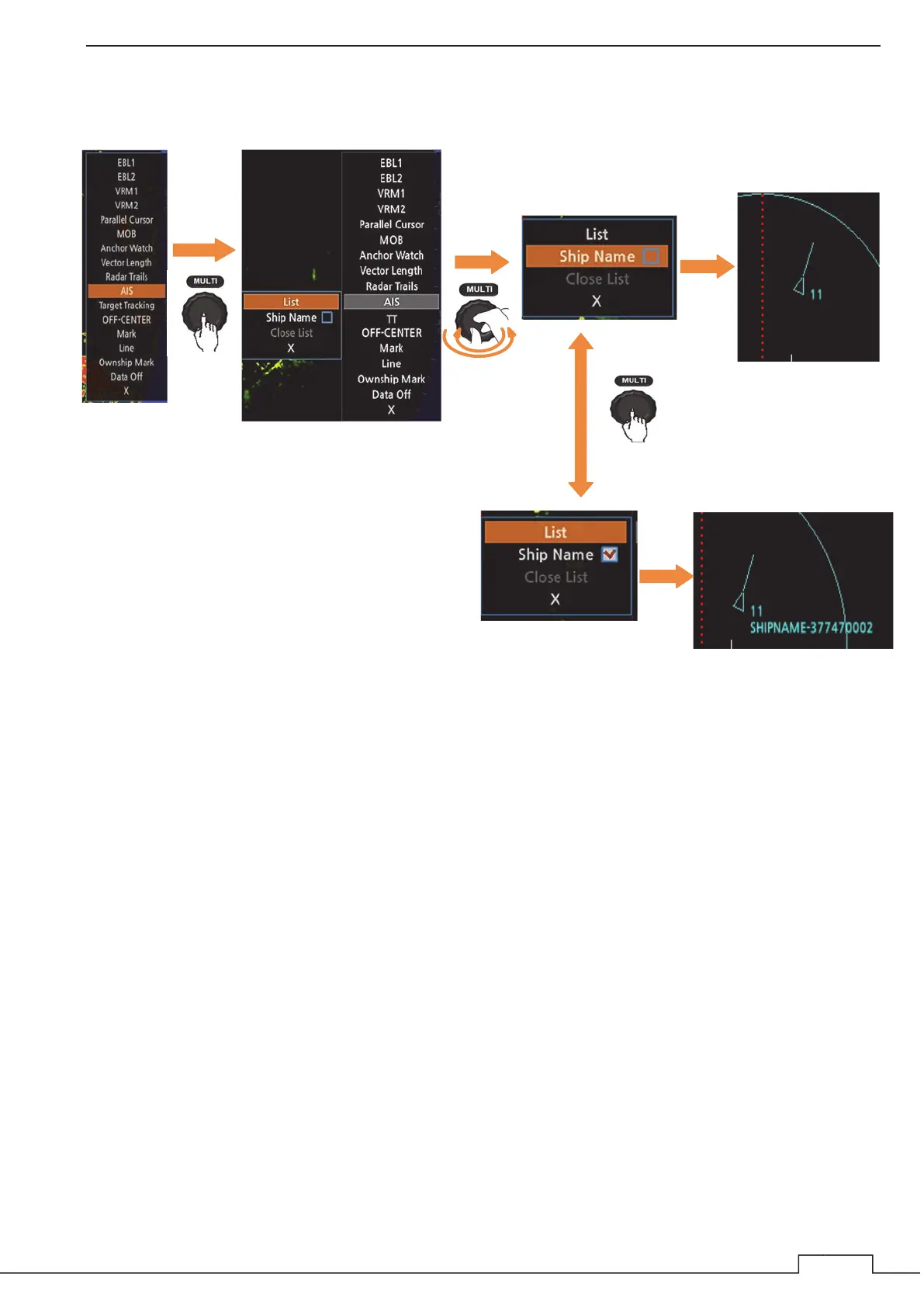

Display AIS ship name on the screen using MULTI control menu.

Ship name display

Press

Turn

Please refer to 5.6.1 AIS List for the above "List"

Press the MULTI control to switch on / of

the ship name display.

Ship name display off

Ship name display on
