ņ41

Be careful not to connect cables faultily.
Adjust the cables for optimal length.
 The recommended length of green cable is 175±5 mm.
 The recommended length of yellow cable is 175±5 mm.
Touching the magnetron with metal (a tool) causes performance
deterioration.


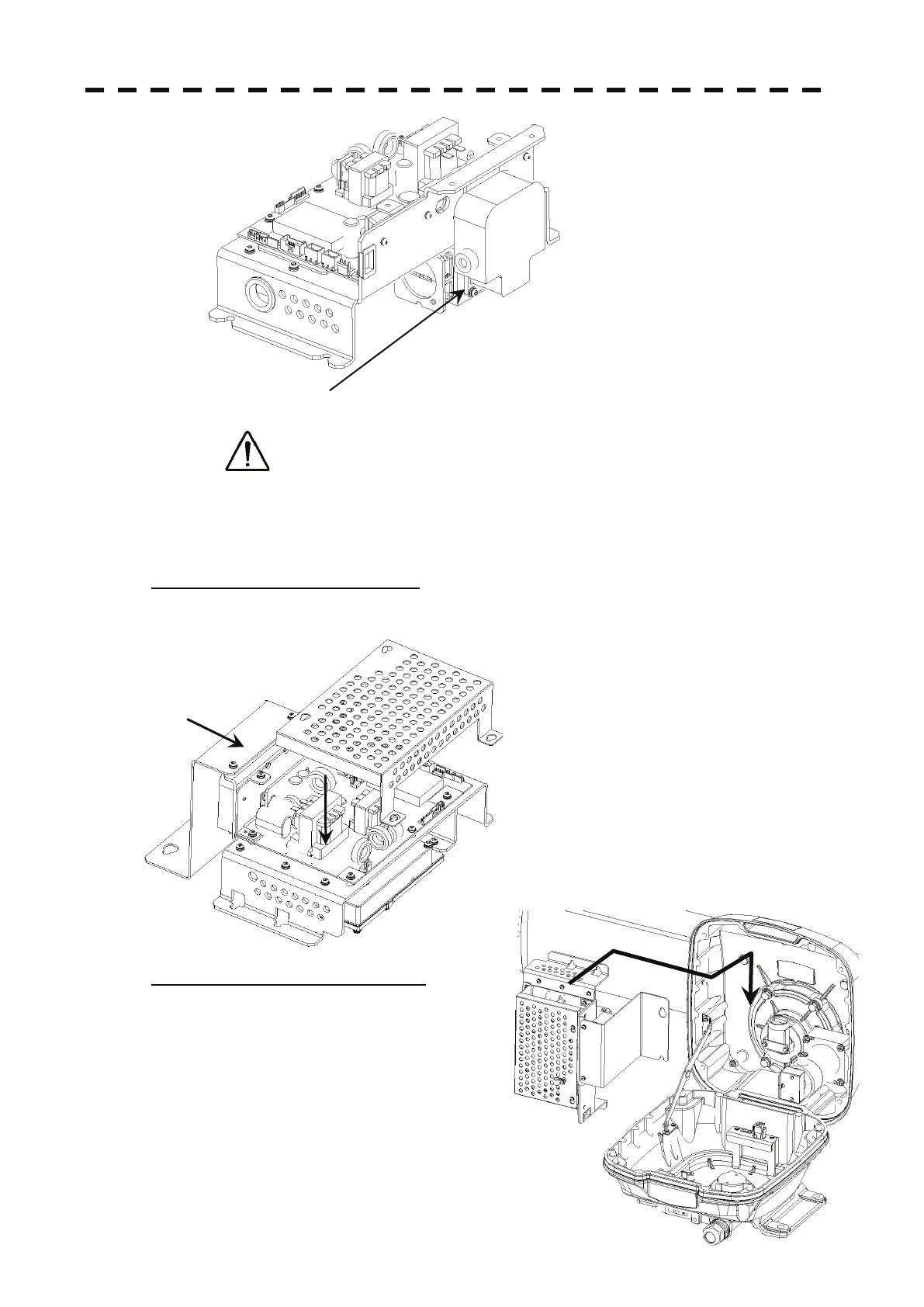

Step 9: Set up the transceiver unit.
Attach the cover and the support plate to the transceiver unit.

Step 10: Install the transceiver unit.
Install the transceiver unit into the scanner unit.
When installing the transceiver unit, put the unit inside, then slide it into the joint of the wave guide tube.
Push the transceiver unit wholly so that the unit and the joint of the wave guide tube stick
together.
Fix the unit with bolts with washer.

After replacement, check that the magnetron is steady.
