JRC JSS-296 - Page 155

JD-1307-05 Attachment 1 3/11

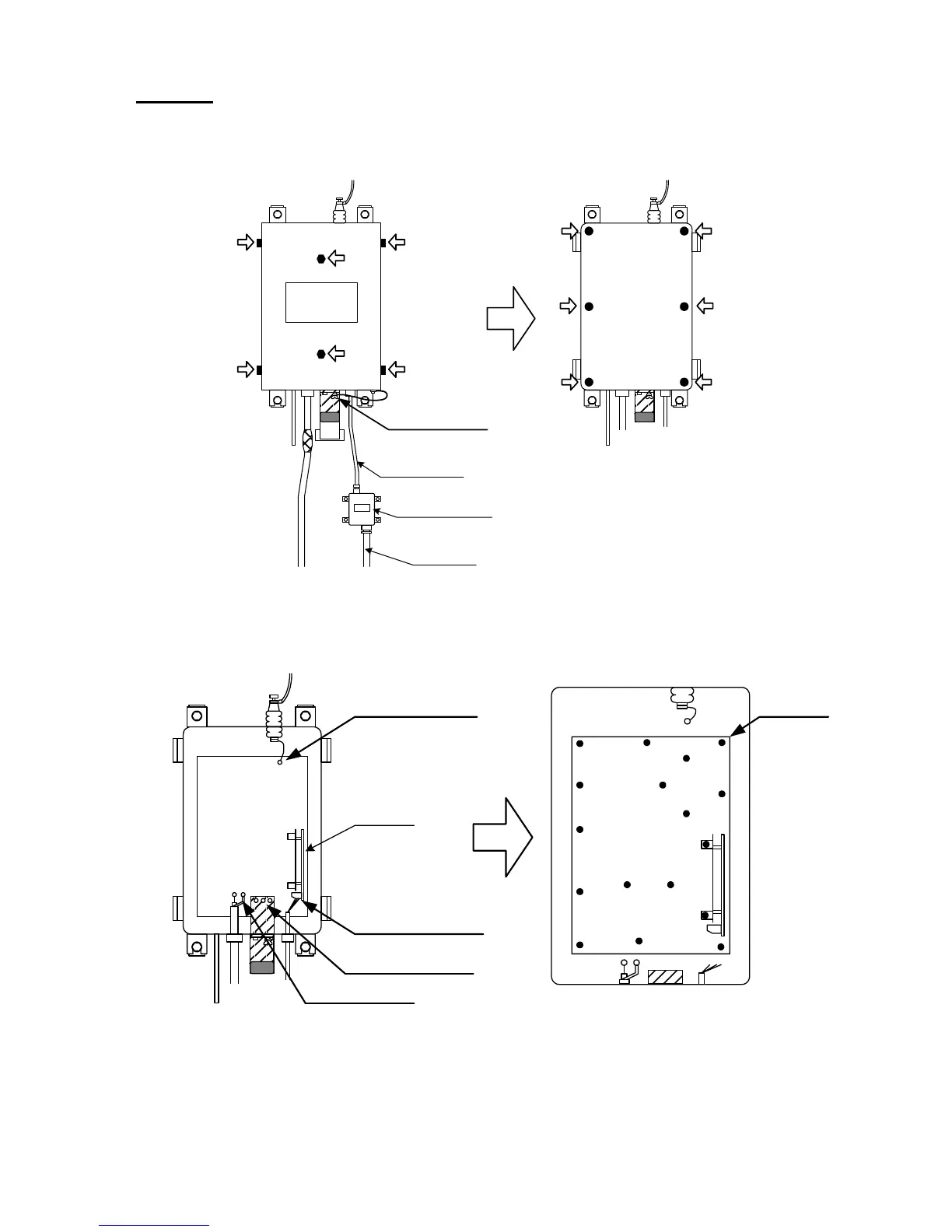

Control cable
JRC
NQD-4190
Junction Box
MPYCYS-12
L=1.3m
Remove earth wire.
Unscrew 6 nuts.
Unscrew 6 screws.
CFG-296
CDJ-2960
Remove antenna wire
Remove control cable.
Remove copper plate.
Remove RF cable.
17 screws
CFG-296
Procedure
1. Turn off AC and DC switches of NAH-692/695/698.
2. Remove earth wire, shade cover and upper cover.
3. Replace CFG-296 of 7PCJD0099A with 7PCJD0099C.
7PCJD0099AÆ7PCJD0099C
4. Connect the antenna wire, copper plate and RF cable disconnected in the paragraph 3.
