JUKI PS-700 - Installing the X-Axis Feed Mechanism

– 7 –

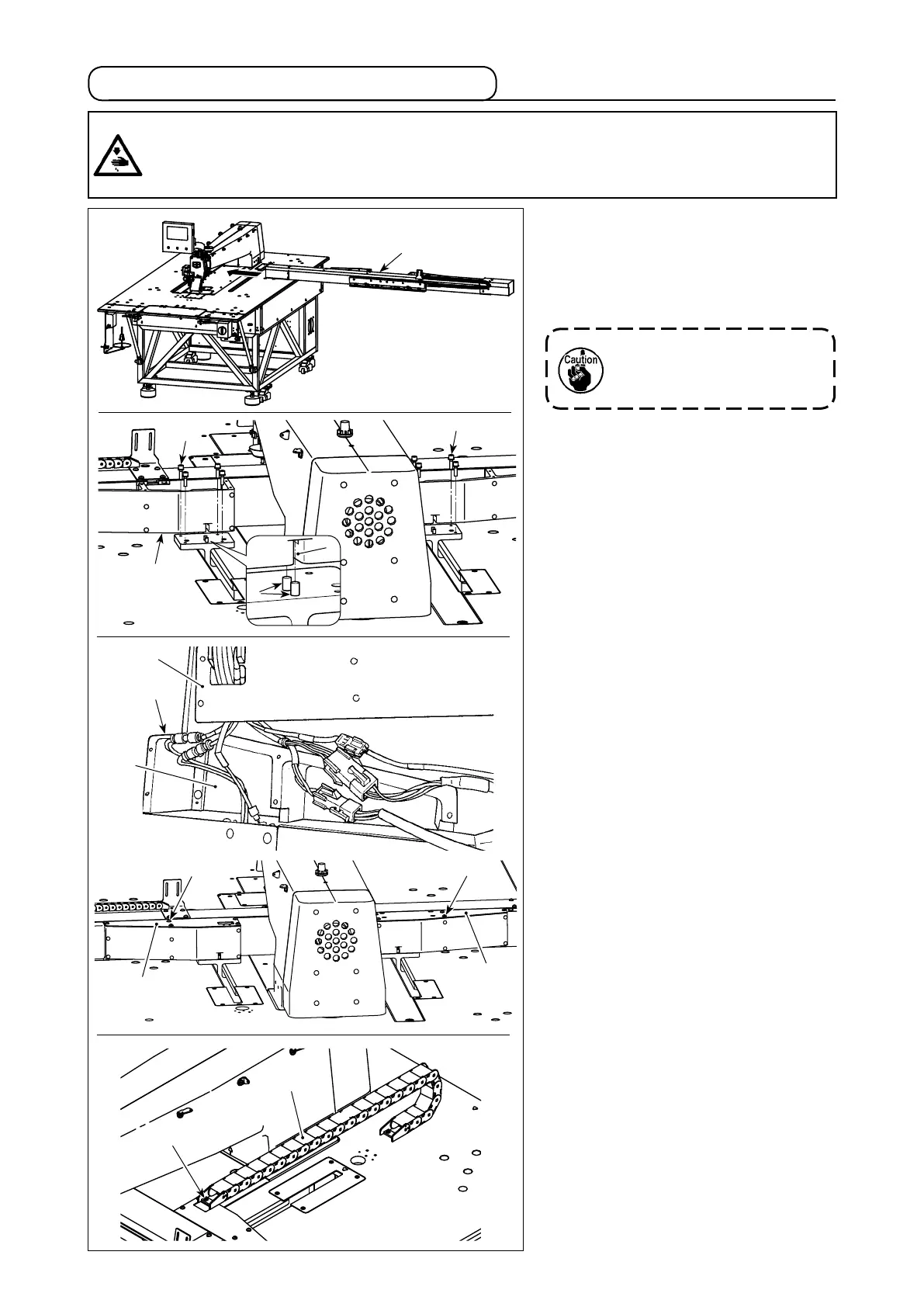

3-5. Installing the X-axis feed mechanism
1) Install X-axis feed mechanism
❶
under
the sewing machine table along the
direction of the arrow. At this time,
carefully check the direction of installa-
tion.
2) Fit grooves
A
on both of the right and
left sides of X-axis feed mechanism
❶
over pins
❷
of the sewing machine
head. Then, tighten setscrews
❸
. At
this time, make sure that pins
❷
are
properly tted in grooves
A
without fail.
3) Connect the cables and air hoses
according to the numbers marked on
them. Fit the connected cables and air
hoses in concave portion
B
in X-axis
feed mechanism
❶
. Then, x left cov-
er
❹
and right cover
❺
with setscrews
❻
and washers
❼
.
4) Fix cable chain
❽
with setscrew
❾
.
X-axis feed mechanism
❶
is heavy. Two workers are
therefore needed to carry it.
❶
❸
❶
❸
❻❼ ❻❼
❺
❹
1)
2)
3)
❶
B
❺
❷
A
❽
❾
4)
WARNING :
1. Before the X-axis feed mechanism is installed, the sewing machine head can be tilted. However, do
not tilt the sewing machine head since it is heavy and can be hazardous to the operator.
2. Take added care not to allow your hands and ngers to be caught in the X-axis feed mechanism
when installing it.
