– 9 –

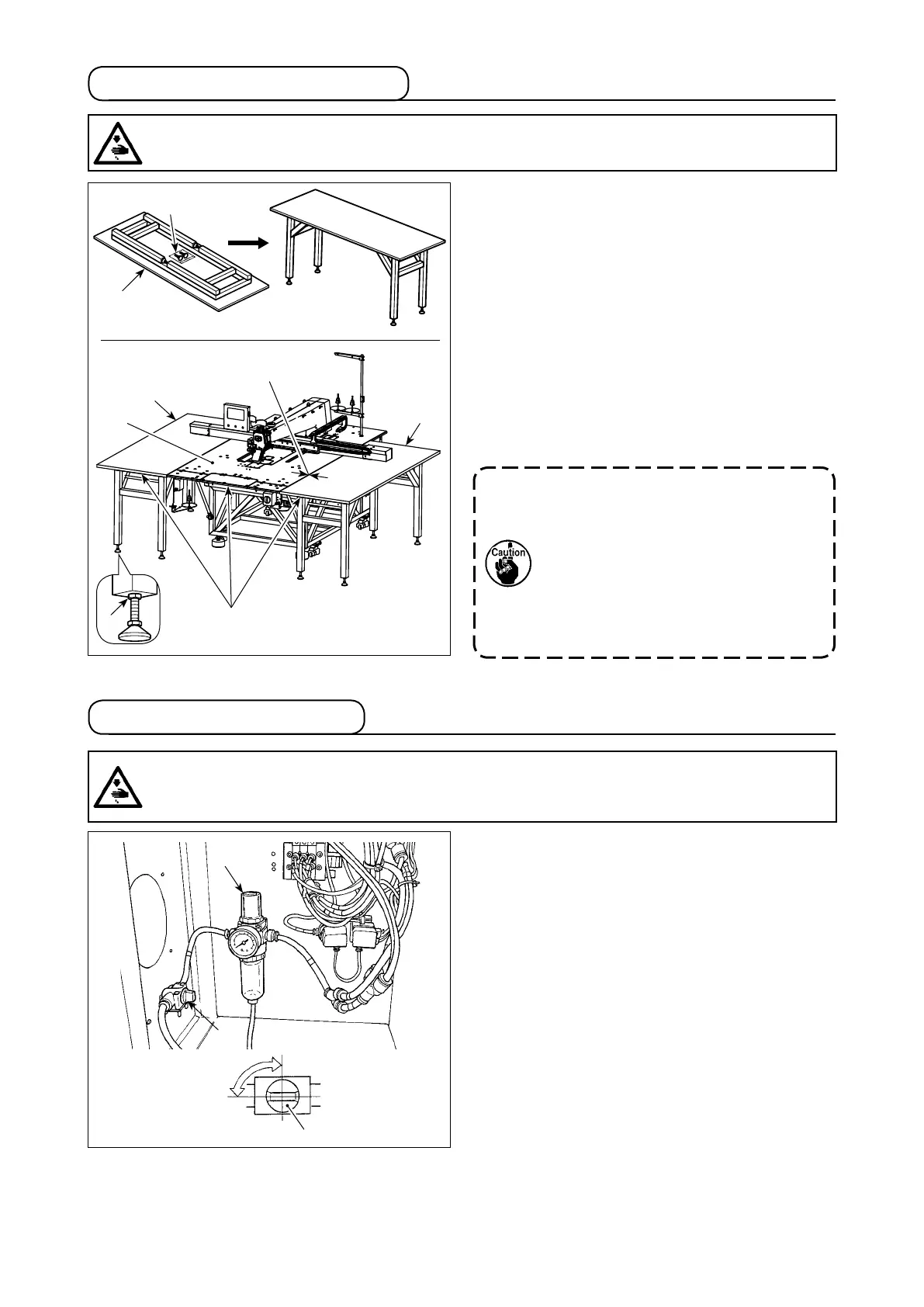

3-8. Installing the air hose
1) Connecting the air hose
Connect the air hose outside diameter of which is
ø8 mm to air cock
❶
.
2) Adjustment of air pressure
Open air cock
❶
, pull up and turn air regulator
knob
❷
and adjust so that air pressure indicates
0.5 to 0.55 MPa. Then, push down air regulator
knob
❷
.
* The maximum air pressure of the air control de-
vice is 0.7 MPa or lower.
❷
❶
Open
Close
❶
3-7. Installing the auxiliary table
1) Take out sub tables
❶
(2 pieces) from the pack-
age. Open the support frame. Attach height ad-
justment support stand
❷
.
2) Install assembled sub tables
❶
to the right and
left sides of table
❸
of the main body of sewing
machine.
Adjust the height of height adjustment support
stand
❷
so that sub tables
❶
are positioned
slightly lower than the top surface of table
❸
of
the main body of sewing machine and so that
the top surfaces of sub tables
❶
are in parallel to
each other. After the adjustment, tighten nuts
❹
.
1. Never place a heavy thing on sub
tables
❶
. In addition, align the front
faces of sub tables
❶
with the front
face of table
❸
of the main body of
sewing machine.
2. Provide a clearance of 0 to 3 mm
between sub tables
❶
and table
❸
of
the main body of sewing machine.
❶
❷
❶
❶
❸
Align the front faces.
Clearance of side faces : 0 to 3 mm
❹
WARNING :
Be sure to attach the sub tables in order to prevent accidents due to the operation of the X-axis feed
mechanism.
WARNING :
Check to be sure that the air hose is fully inserted into the air cock before supplying the air to the
machine so as to prevent the air from being blown directly to the human body. Then, carefully open
the air cock.
