– 3 –
3. INSTALLATION

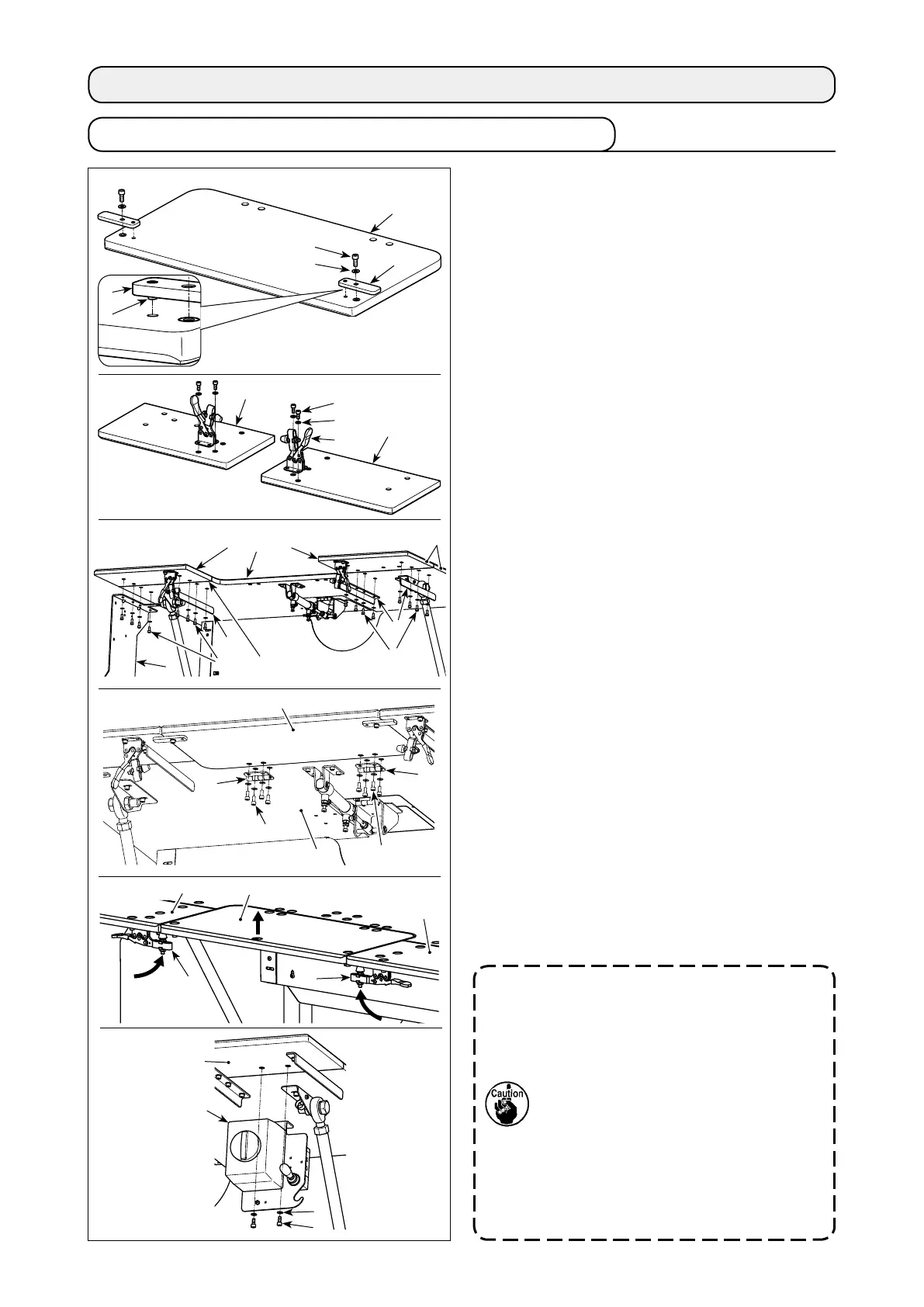

3-1. Installing the extension plate and the power switch
1. Do not lean over extension plate
❶
or push it by hand so as to prevent
bodily injury due to abrupt lowering of
extension plate
❶
.
2. When returning extension plate
❶
to its raised position from the tilted
position, take care not to allow your
hands and ngers to be caught in it.
3. When loosening toggle clamp
❼
,
slowly lower it while supporting
extension plate
❶
by hand. Never let
the toggle clamp fall freely in order to
prevent bodily injury.
4. Do not place any heavy object on the
extension table sections.
1) Insert pin
A
of positioning plate
❷
into the hole
in extension plate
❶
. Then, secure the pin with
hexagon socket head screw
❸
and washer
❹
.
2) Attach toggle clamps
❼
respectively to left exten-
sion plate
❺
and right extension plate
❻
. Then,
secure them respectively with hexagon socket
head screw
❸
and washer
❹
.
3) Firstly, detach power switch (asm.)
from main
table
❾
. Align the position of left extension plate
❺
and right extension plate
❻
with the position
of main table
❾
. In this state, secure the exten-
sion plates and the main table using table support
bracket
❽
and bobbin winder device mounting
plate
with hexagon socket head screws
❸
and
washers
❹
. At this time, carefully align the outer
peripheries of left extension plate
❺
and of right
extension plate
❻
with the outer periphery of
main table
❾
and adjust them so that no clear-
ance is provided between the extension plates
and the main table.
4) Once extension plate
❶
and main table
❾
are
correctly positioned, x extension plate
❶
with
hinge
using hexagon socket head screws
❸
and washers
❹
. At this time, take care not to
provide any clearance between extension plate
❶
and main table
❾
. In addition, make sure that
extension plate
❶
can be normally opened/closed
without getting stuck with the related parts.
5) Lift extension plate
❶
until positioning plate
❷
comes in contact with left extension plate
❺
and
right extension plate
❻
. In this state, lock toggle
clamp
❼
. At this time, adjust clamp height of
toggle clamp
❼
. If the clamp height is too low,
extension plate
❶
drops, or if it is too high, toggle
clamp
❼
cannot be closed. So, correctly adjust
the clamp height of the toggle clamp.
6) Fix power switch (asm.)
on left extension plate
❻
with hexagon socket head screw
❸
and wash-
er
❹
.
❷
❶
❸
❹
❺
❼
❻
❸
❹
A
❷
❸❹
❶
❾
❸❹
❻
❹
❸
❼
❼
❺
❻
❶
1)
2)
3)
4)
5)
6)
❺
❽
❻
Alignment
No clearance here
❾
❽
❸❹
❸❹
