JUKI PS-700 - Draining Waste Oil

– 26 –

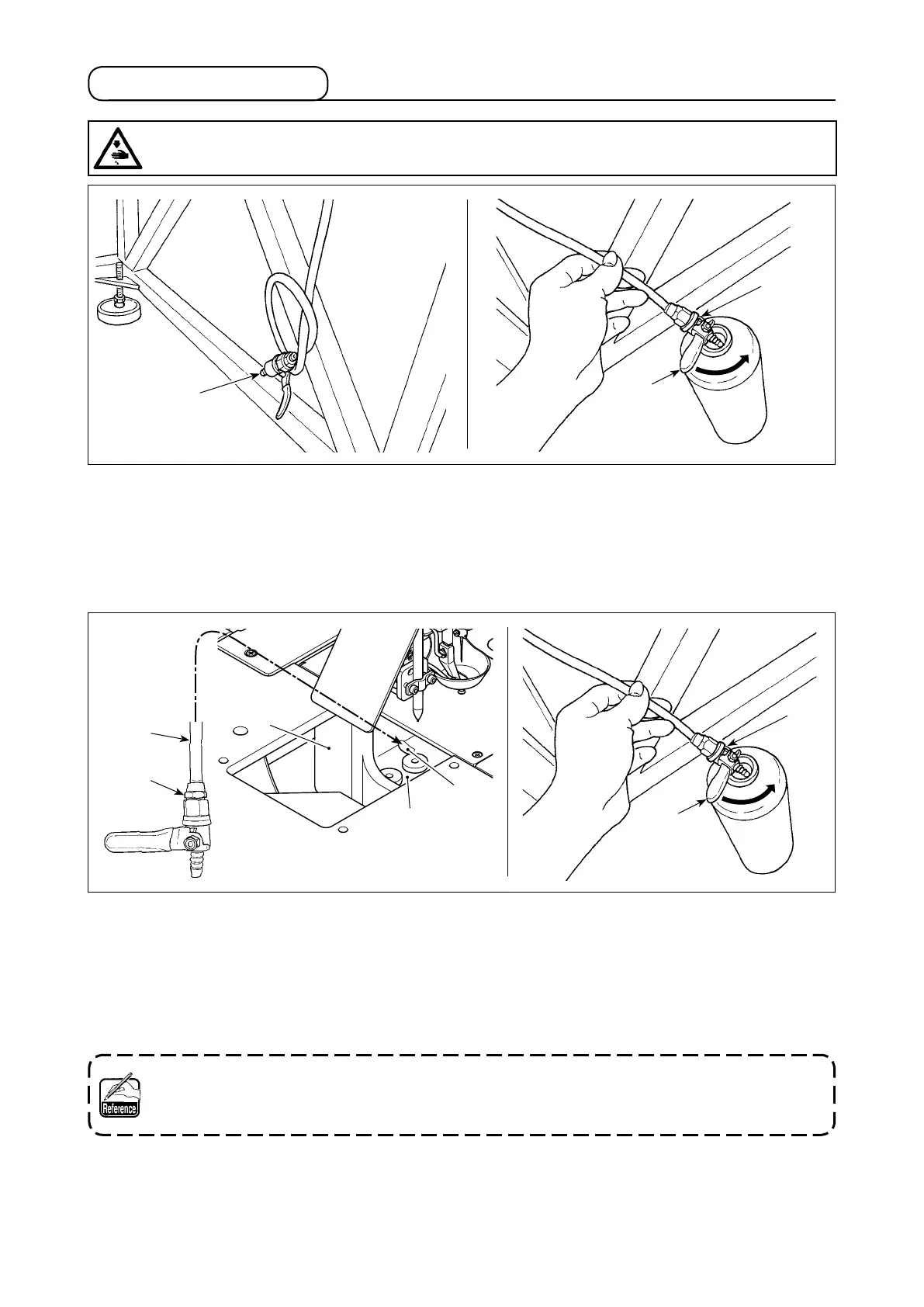

5-2. Draining waste oil
(1) Discharging the waste oil in the oil pan
Discharge the waste oil in the oil pan using oil drain valve
❶
installed under the table stand.
1) Put oil drain valve
❶
in the waste oil container. Turn lever
❷
of drain oil valve
❶
in the direction of the
arrow until the waste oil is entirely discharged from the container.
2) After the completion of discharge of waste oil, return lever
❷
back to its home position.
❶
❷
❹
❺
(2) Discharging the waste oil in the hook section
Waste oil in the hook section accumulates around front end
A
of oil pan (large)
❸
.
1) Put oil drain pipe
❻
into hole
B
as shown in the gure.
2) Put oil drain valve
❹
in the waste oil container. Turn lever
❺
of drain oil valve
❹
in the direction of the
arrow until the waste oil is entirely discharged from the container.
3) After the completion of discharge of waste oil, return lever
❺
back to its home position.
A
❸
B
❶
❻
❹
The waste oil container is not supplied with the unit at the time of delivery. It should be therefore
prepared by the customer. (The bottle for JUKI CORPORATION GENUINE OIL 7 supplied with
the unit can be used as a waste oil container when the bottle is emptied.)
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
