4. PREPARATION OF THE SEWING MACHINE
4-1. Lubricating method and check of the oil quantity
Remove oil sight window
❶
and add oil through lubrication hole
❷
. (JUKI CORPORATION GENUINE OIL 7)
Details of oil-quantity checking procedure are as described below.

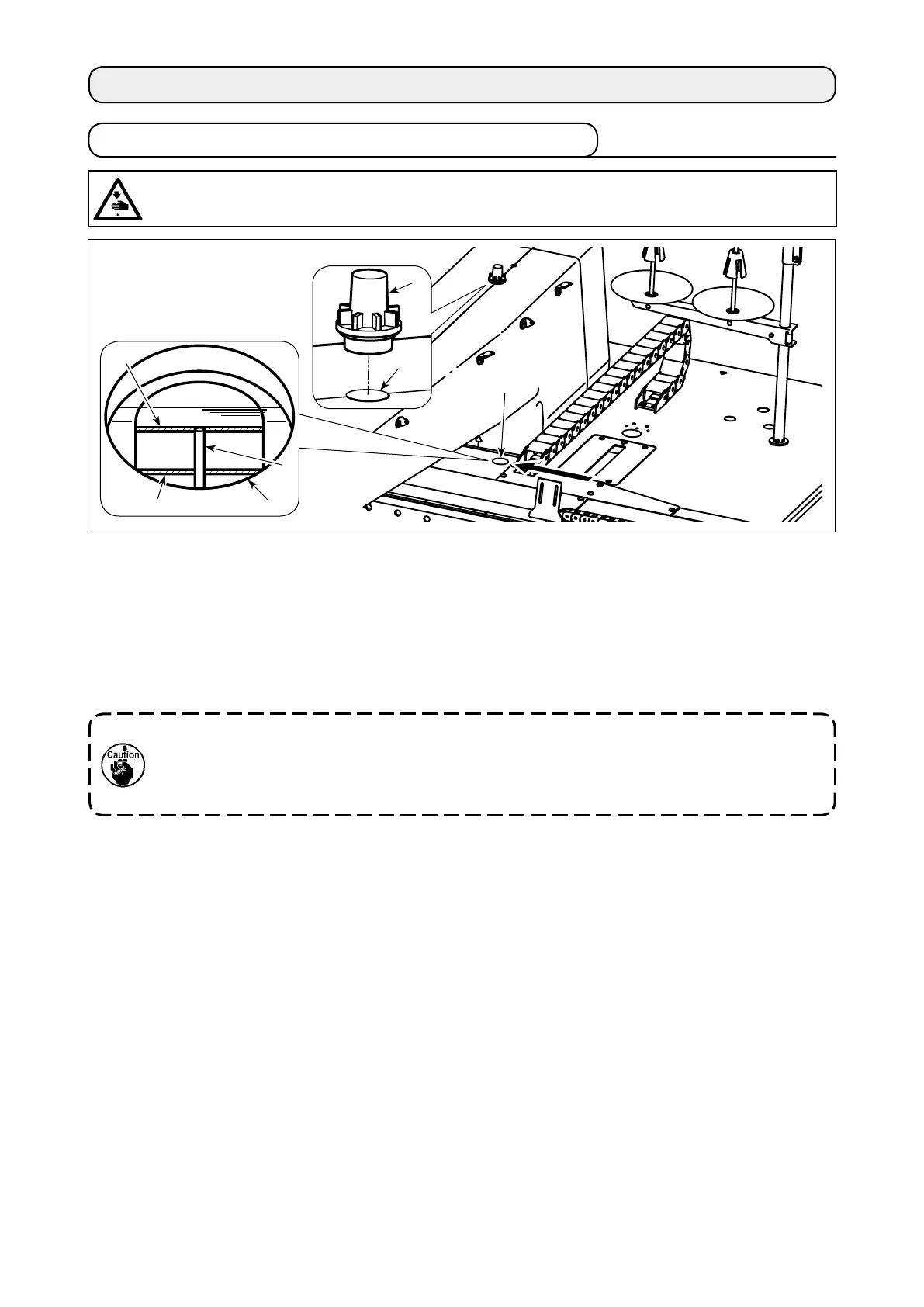

1) Oil amount indicating window
❸
is marked in red. Check the oil quantity through the oil sight window from
the direction of the arrow as shown in the gure.
2) Two red marker lines can be observed. These marker lines respectively indicates the maximum value
A
and minimum value
B
of the oil quantity. As long as the oil gauge
❹
is positioned between these two
marker lines, the oil quantity is adequate. (480 mL ≤ Oil quantity ≤ 800 mL)
1. During the sewing process, check whether oil splashes against sight window
❶
. If not, check the
oil quantity so as to prevent sewing machine seizure.
2. Never use any oil other than the specied one. It is also important to rmly close sight window
❶
after the lubrication.
❹
❸
B
A
❷
❶
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
