MADI Transmitter
Transmitter Channel Count [64 (32) / 56 (28)]
Depends on the internal sample rate and the desired number of
MADI channels. The numbers in brackets are valid for 96kHz.
Transmitter Channel Status [Transparent / Professional]
Channel Mapping @ 96 kHz [Normal]
Set up GUI – INTERFACES – MADI Interface – Local Routing

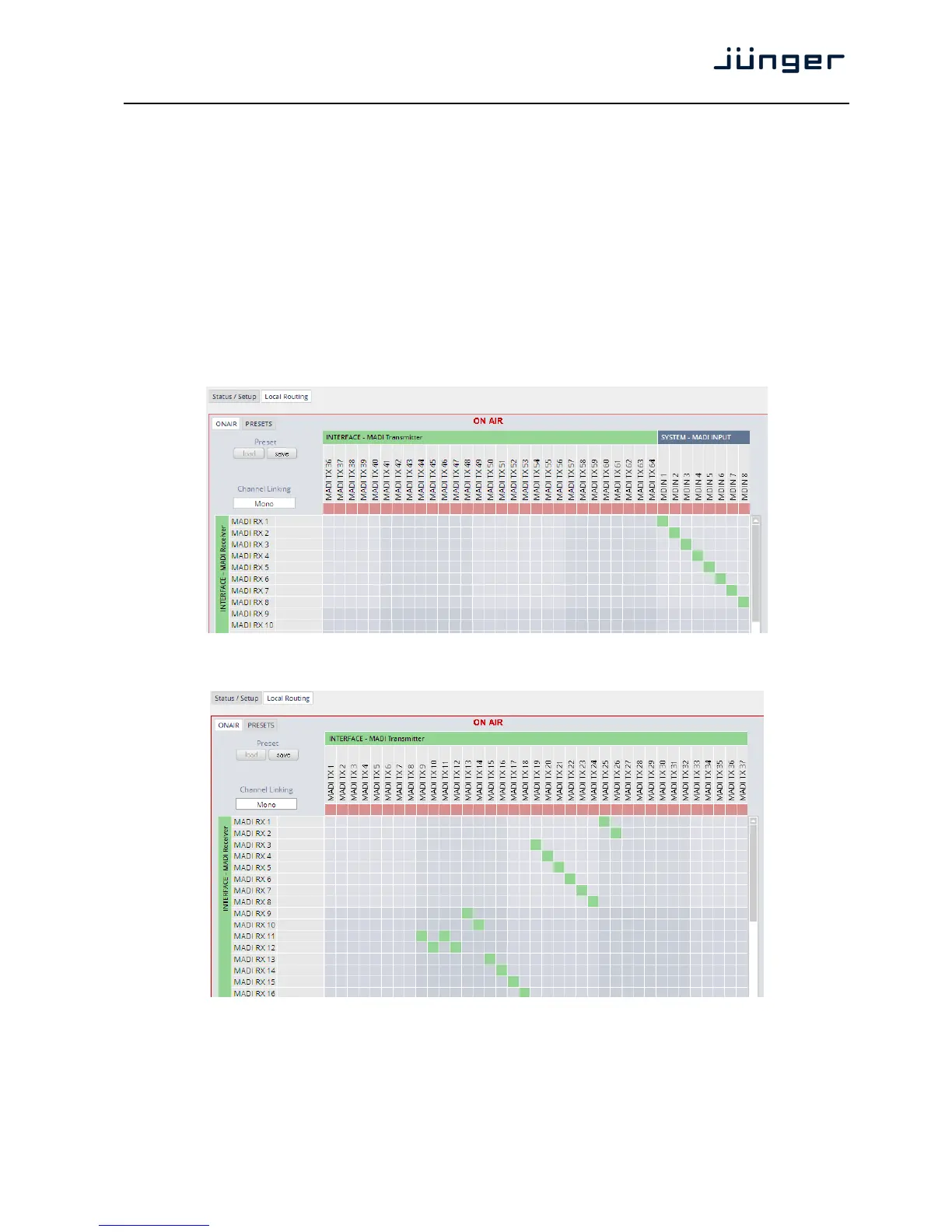

Below are some excerpts from the local routing pane. Single channels from or to the D*AP may be
connected with the MADI transmitter or MADI receiver respectively.
The example below shows the first 8 MADI channels from the receiver (MADI RX 1 … MADI RX 8)
connected with the device inputs SYSTEM MADI INPUT (MDIN 1 … MDIN 8):
The Local Routing pane can also be used to route MADI signals from the receiver directly to the
transmitter and vice versa:
