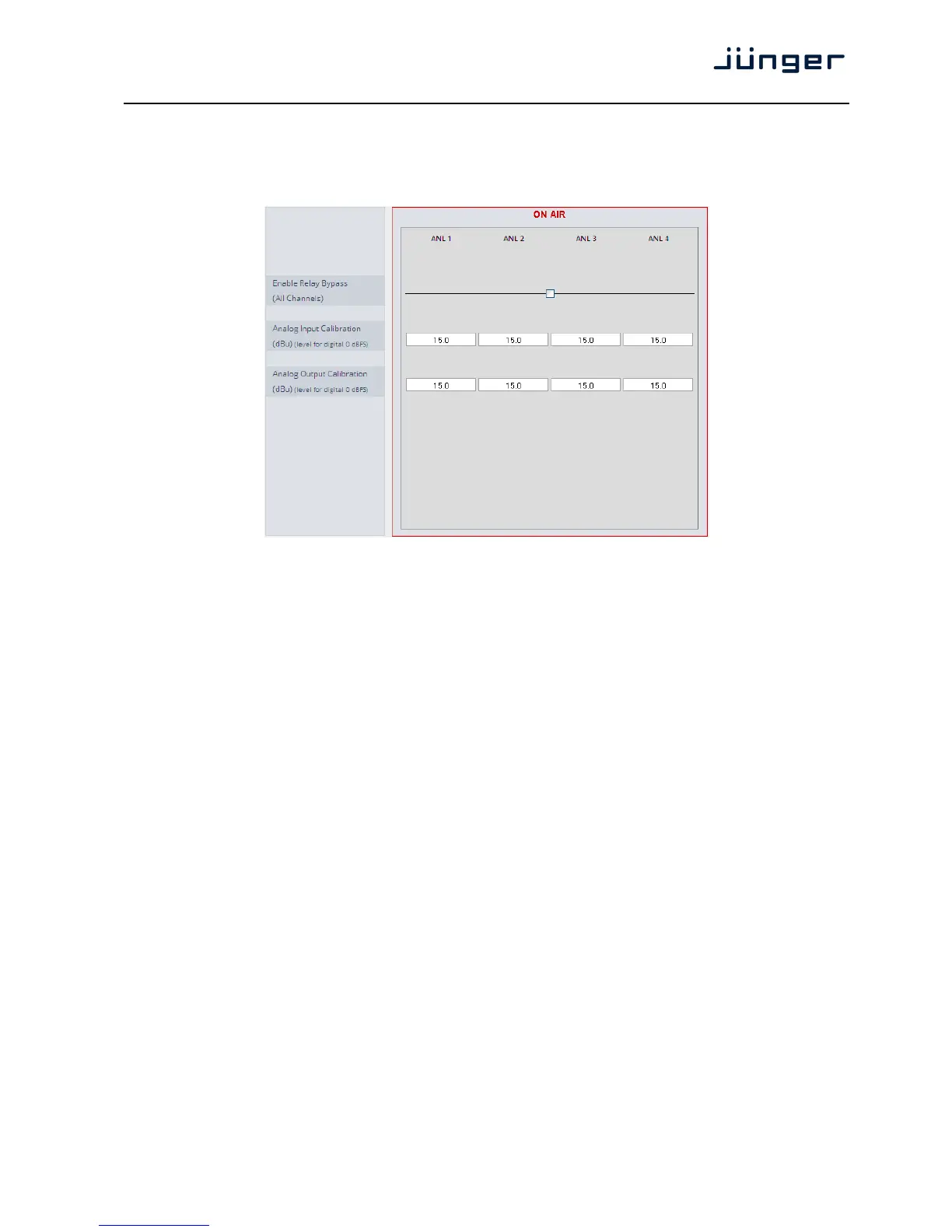

Set up GUI – INTERFACES – 4 Ch ANALOG I/O Interface
An additional analog interface can be installed in the Interface slot.
It provides 4 additional analog line inputs and outputs on a 25pin D-Sub connector:
Enable Relay Bypass [ON / OFF]
(All Channels) Power fail bypass relay that may be activated from the GUI
Analog Input Calibration [0 … 15.0 … 24.0]
(dBu)
(level for digital 0dBFS)
A/D conversion parameter. It defines the analog input level in dBu to
reach a digital full scale signal.
Analog Output Calibration [0 … 15.0 … 24]
(dBu)
(level for digital 0dBFS)
D/A conversion parameter. It defines the analog output level in dBU
for a digital full scale signal.
