The expert mode allows the administrator to set up the parameters of the transmitter and to turn
the MPX Limiter on or off.
Expert [ON / OFF]
Pre-Emphasis [OFF / 50µs / 75µs]
Operating Level (dBFS) [-15.0 … -9.0 … -6.0]
Peak Deviation Target (kHz) [35.0 … 75.0 … 80.0]
Pilot Deviation (kHz) [0.0 … 6.0 … 15.0]
RDS Deviation (kHz) [0.0 … 2.0 … 4.0]
SCA Deviation (kHz) [0.0 … 15.0]
Resulting Ceiling (dBFS) calculated from the operating level, the sub-carrier (pilot-tone) and the
respective RDS and SCA deviation
MPX Limiter [OFF / ON]
Reference Level (dBr) [-4.0 … 0.0 … 4.0]
Low Pass Filter (15kHz) [OFF / ON]

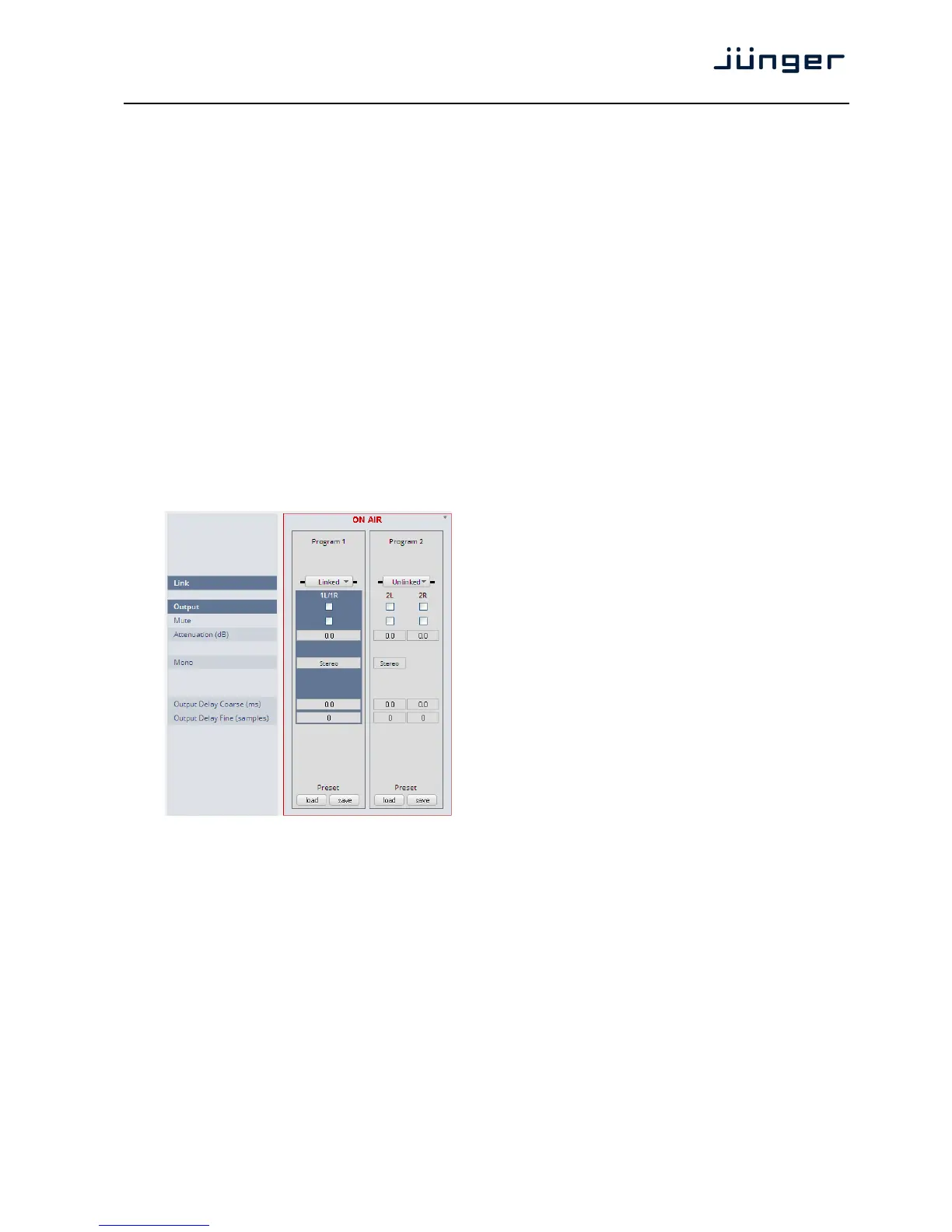

Setup GUI – AUDIO PROCESSOR – Output
Link [unlinked / linked]
defines the coupling of the
control circuits
Output [ON / OFF]]
Mute [ON / OFF]
Attenuation (dB) [-80.0 … 0.0]
Mono [L+R Mono / LL Mono /
RR Mono / Stereo]
Output Delay [0.0 … 2000.0]
Coarse (ms) [
Output Delay [0 … 2000]
Fine (samples) [0 … 2000]
