Hardware Features
•

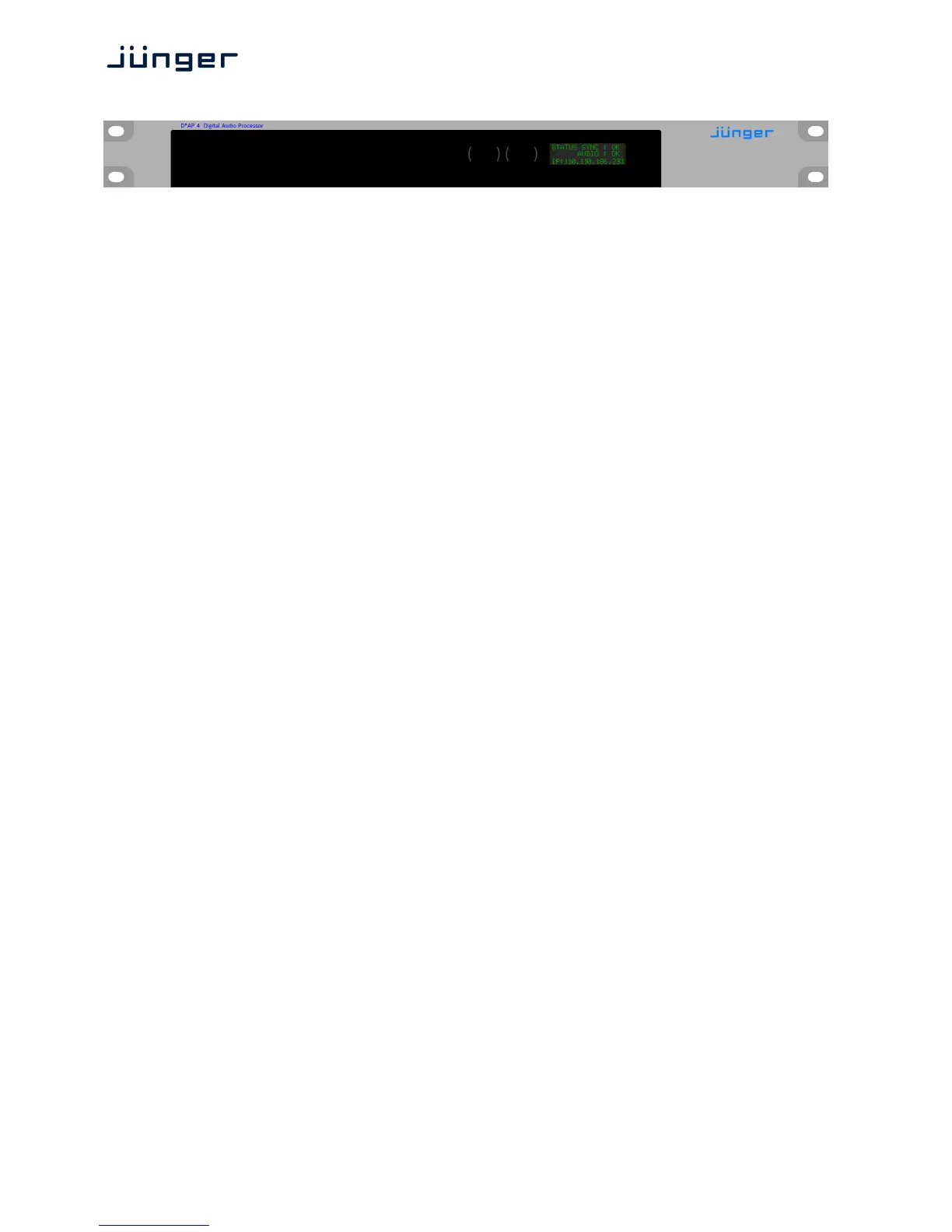

1RU compact 19" processing device with front side info display
• Dual power supply second power supply for redundancy
• Front panel info display for signal activity, IP address, status alert
• Two hidden touch buttons to change the content of the info display
•
Remote Panel optional X*AP RM
1
panel
• Audio inputs balance/unbalanced AES – manual selection
•
Audio o
utputs
balance/unbalanced AES
• One interface slot I/O expansion slot for one option board at a time
• RJ45 network connector 100BaseT full duplex Ethernet interface
• USB B connector built in USB < > serial adapter to access the device service port
• 8 GPI/Os 8 balanced inputs, 8 relay closure combined on a 25pin D-Sub
•
Aux power supply isolated 5V supply for external wiring
•
External sync IN 75Ohm input (Word Clock, AES, Black Burst, Tri-Level)
•
Sync OUT 75Ohm Word Clock output
Software Features in general
The D*AP4 may be purchased as a Level Magic Edition and will appear as D*AP4 LM or based on the
software licenses of the FLX concept. In this case it appears as D*AP4 FLX.
Pls. contact your local dealer for details.
• LevelMagic loudness management according to ITU BS.1770-1/-2/-3
EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59, Portaria 354
• Dynamic filter optional SPECTRAL SIGNATURE™ dynamic EQ
• EQ optional 5 band parametric
•
Dynamics optional compressor, expander / gate
• Fail over optional automatic switch over with signal loss detection
• Voice over optional stereo or mono voice over extra program input, pan
• FM Conditioner optional MPX limiter and Pre-Emphasis
• Loudness measurement in reference to the selected standard
•
SNMP agent SNMP v1, see D*AP4-MIB
• Remote control EmBER plus protocol or X*AP RM1 remote panel, mobile UI
and legacy GPI/Os
