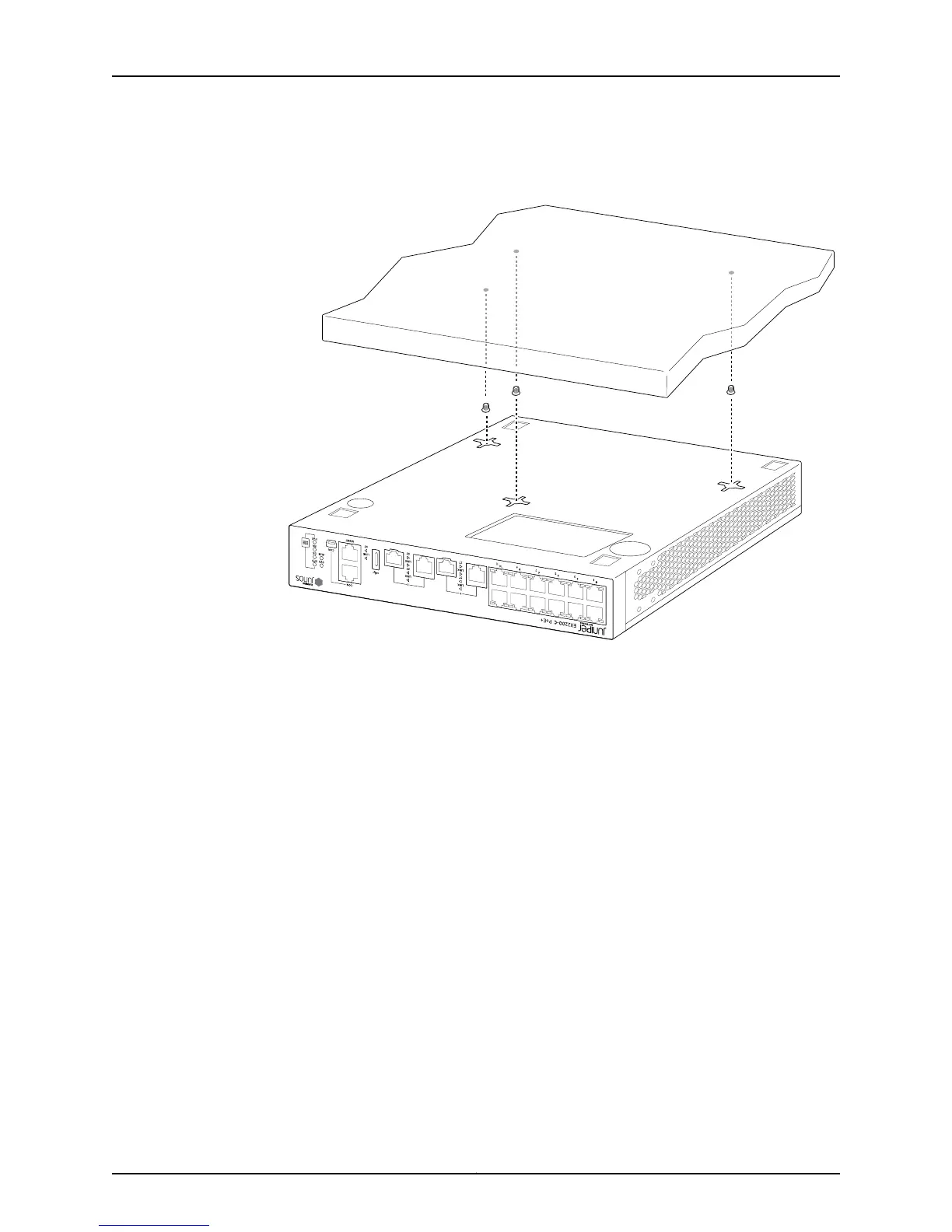

Juniper EX2200 Series - Figure 25: Mounting the EX2200-C Switch on or under a Desk Using Screws

Figure 25: Mounting the EX2200-C Switch On or Under a Desk Using
Screws
g021157
4. (Optional) Attach the cable guard to protect cable connections:
a. Usethe 3 truss-head screws to attach the cable guard to the bottom of the chassis.
b. Use the thumbscrews to tighten or loosen the guard to allow you to insert cables.
See Figure 26 on page 81.
