CHAPTER 10
Connecting the Switch
•
Connecting Earth Ground to an EX Series Switch on page 103
•
Connecting AC Power to an EX2200 Switch on page 109
•
Connecting DC Power to an EX2200 Switch on page 110
•
Connecting an EX Series Switch to a Network for Out-of-Band Management on page 113
•
Connecting an EX Series Switch to a Management Console on page 115
•
Connecting an EX Series Switch to a Modem on page 117
•
Connecting a Fiber-Optic Cable to an EX Series Switch on page 121
Connecting Earth Ground to an EX Series Switch
To meet safety and electromagnetic interference (EMI) requirements and to ensure
proper operation, you must connect the switches to earth ground before you connect
them to power.
For installations that require a separate grounding conductor to the chassis, use the
protective earthing terminal on the EX Series switch chassis to connect to the earth
ground (see Figure 45 on page 103).

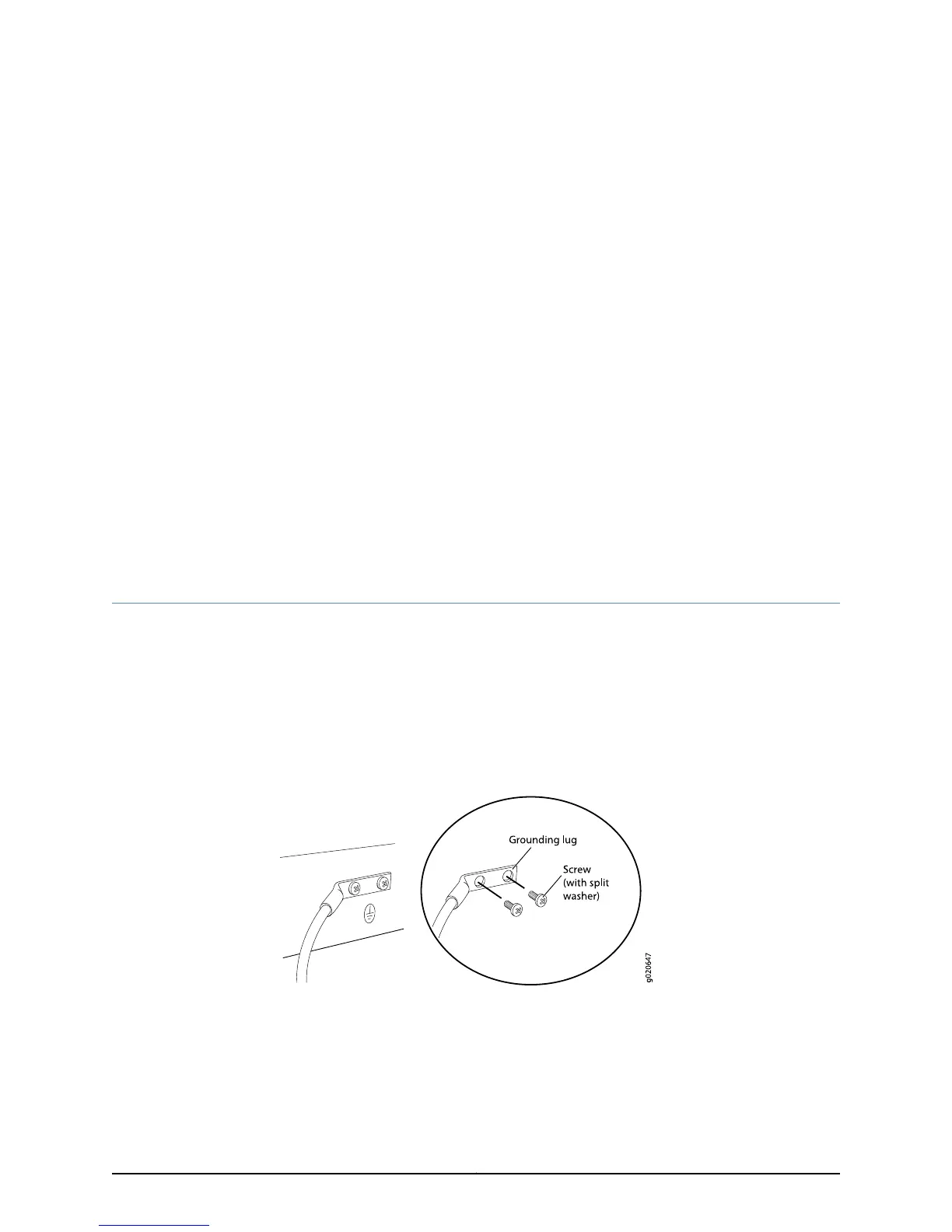

Figure 45: Connecting a Grounding Cable to an EX Series Switch
Before you connect earth ground to the protective earthing terminal of an EX Series
switch, ensure that a licensed electrician has attached an appropriate grounding lug to
the grounding cable.
103Copyright © 2011, Juniper Networks, Inc.
