Juniper EX2200 Series User Manual

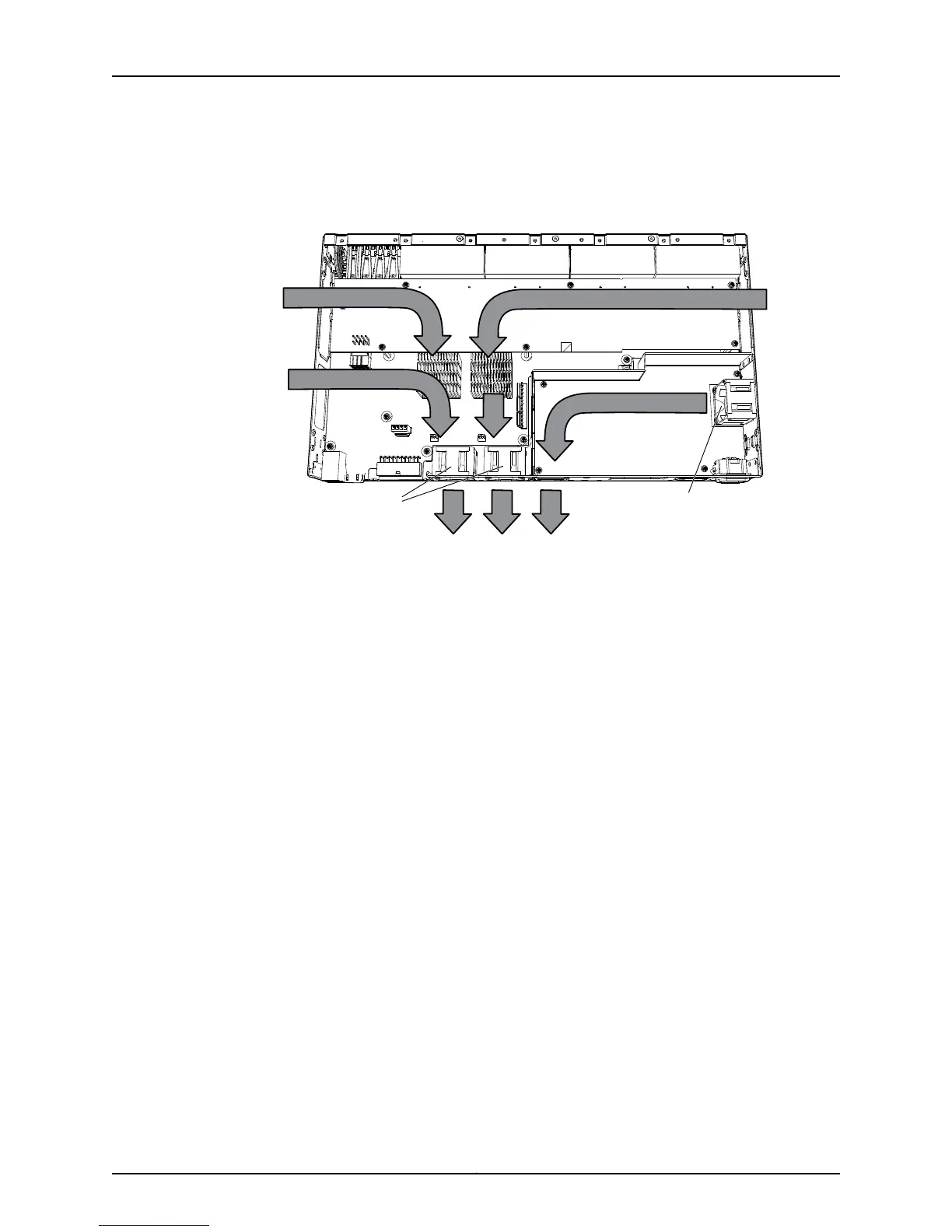

Figure 15: Airflow Through PoE Models of EX2200 Switches Except the
EX2200-C Switch Models
g027008
Chassis rear
Chassis front
Fans Fan
Under normal operating conditions, the fans operate at a moderate speed to reduce
noise. Temperature sensors in the chassis monitor the temperature within the chassis.
If any fan fails or if the temperature inside the chassis rises above the threshold, the
switch raises an alarm and all functioning fans operate at a higher speed than normal.
If the temperature inside the chassis rises above the threshold, the switch shuts down
automatically.
Related
Documentation
• EX2200 Switches Hardware Overview on page 3
• Chassis Status LEDs in EX2200 Switches on page 13
• Understanding Alarm Types and Severity Levels on EX Series Switches
• Prevention of Electrostatic Discharge Damage on page 180
Copyright © 2011, Juniper Networks, Inc.20
Complete Hardware Guide for EX2200 Ethernet Switches

Juniper EX2200 Series Specifications

General

Product Series	EX2200 Series
Operating Temperature	32° to 104° F (0° to 40° C)
Ports	24 or 48 10/100/1000 Ethernet ports, 4 SFP uplink ports
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
JUNOS Software	JUNOS Software
Layer 2 Features	VLAN
Layer 3 Features	Static routing, RIP, OSPF, VRRP
Management	CLI, SNMP
Humidity	5% to 90% non-condensing
