Cooling System and Airflow in an EX2200 Switch
Thecoolingsystemin EX2200 switches, exceptEX2200-C, the compact,fanlessmodels,
consists of two fans along the rear of the chassis that provide side-to-rear chassis cooling.
In the PoE models of these switches, there is an additional fan in the power supply.
In the EX2200-C switch the cooling is done by the vents on top and sides of the chassis
in non-PoE models and by heatsinks in PoE+ models. Do not block the vents on the
chassis. Doing this can lead to overheating of the switch chassis.
Figure 14 on page 19 shows the airflow in non-PoE models of EX2200 switches, except
for the EX2200-C models.

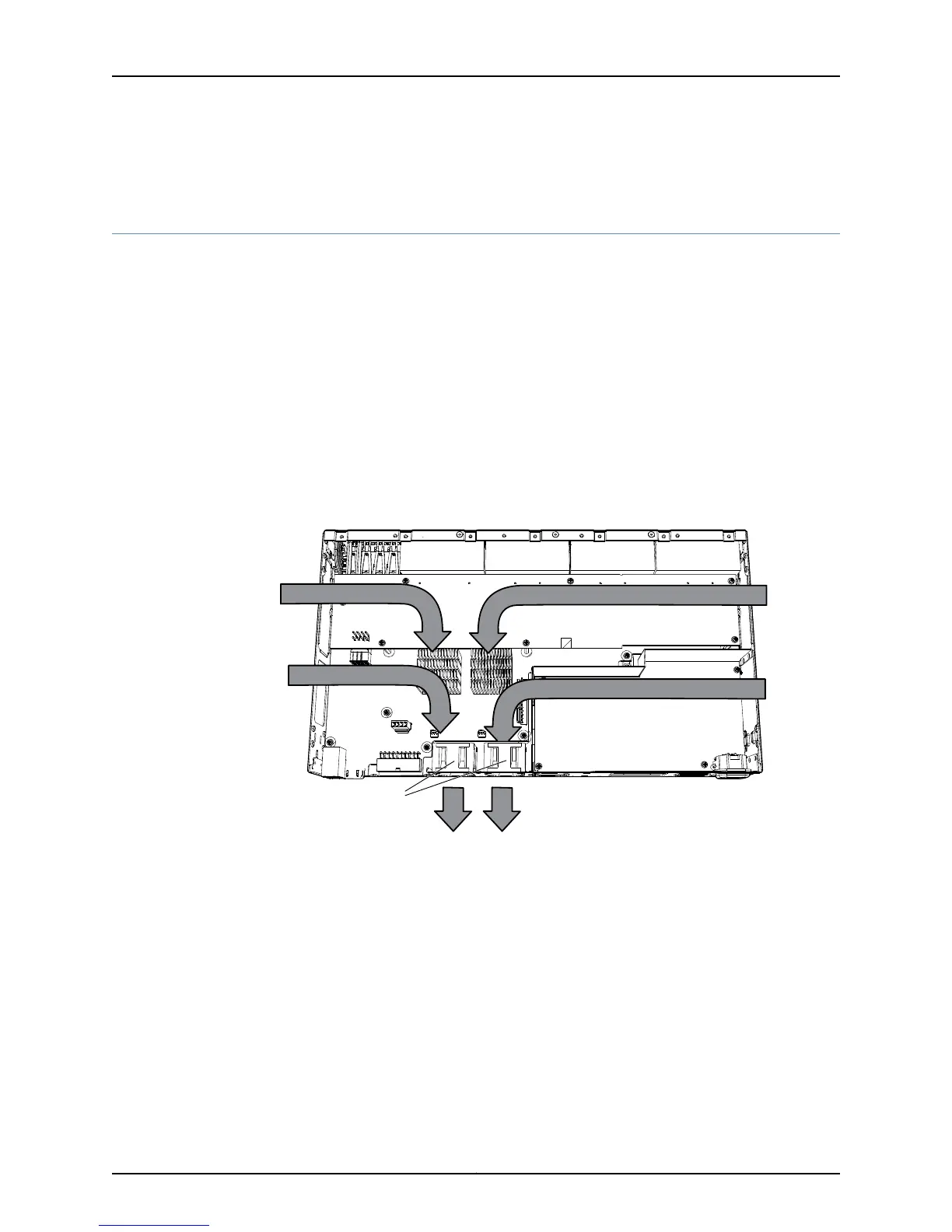

Figure 14: Airflow Through Non-PoE Models of EX2200 Switches Except
the EX2200-C Switch Model
g027021
Chassis rear
Chassis front
Fans
Figure 15 on page 20 shows the airflow in PoE models of EX2200 switches, except
EX2200-C models.
