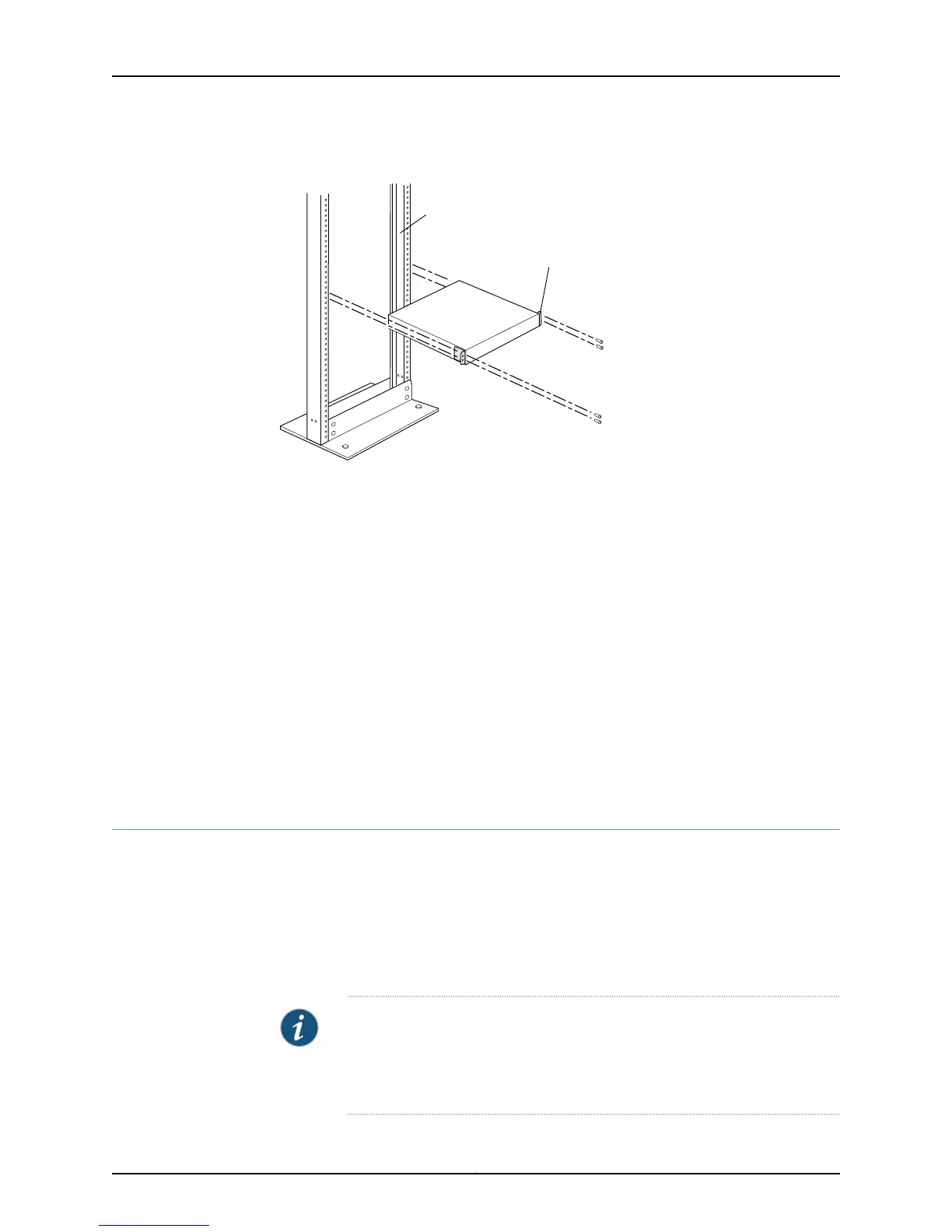

Figure 29: Mounting the Switch on Two Posts of a Rack
g027020
Mounting rack
Mounting bracket
8. Have a second person secure the switch to the rack by using the appropriate screws.
Tighten the screws.
9. Ensure that the switch chassis is level by verifying that all screws on one side of the
rack are aligned with the screws on the other side.
Related
Documentation
Connecting Earth Ground to an EX Series Switch on page 103•
• Connecting AC Power to an EX2200 Switch on page 109
• Connecting DC Power to an EX2200 Switch on page 110
• Connecting and Configuring an EX Series Switch (CLI Procedure) on page 129
• Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 131
• Mounting an EX2200 Switch in a Recessed Position in a Rack or Cabinet on page 88
• Rack-Mounting and Cabinet-Mounting Warnings on page 167
Mounting an EX2200 Switch on Four Posts of a Rack or Cabinet
You can mount an EX2200 switch except an EX2200-C switch model on four posts of
a 19-in. rack or cabinet by using the separately orderable four-post rack-mount kit. (The
remainder of this topic uses “rack” to mean “rack or cabinet.”)
You can mount the switch on two posts of either a two-post rack or a four-post rack by
using the mounting brackets provided with the switch. See “Mounting an EX2200 Switch
on Two Posts of a Rack or Cabinet” on page 81.
NOTE: If you need to mount an EX2200 switch except the EX2200-C switch
model in a recessed position on either a two-post rack or a four-post rack,
you can use the 2-in.-recess front brackets provided in the separately
orderable four-post rack-mount kit.
Copyright © 2011, Juniper Networks, Inc.84
Complete Hardware Guide for EX2200 Ethernet Switches
