Management Port LEDs in EX2200 Switches
The management port on an EX2200 switch has two LEDs that indicate link/activity and
port status. The EX2200 switches except the EX2200-C switch models have the
management port on the rear panel and the EX2200-C switch has the management port
on the front panel. See Figure 12 on page 17 and Figure 13 on page 17.

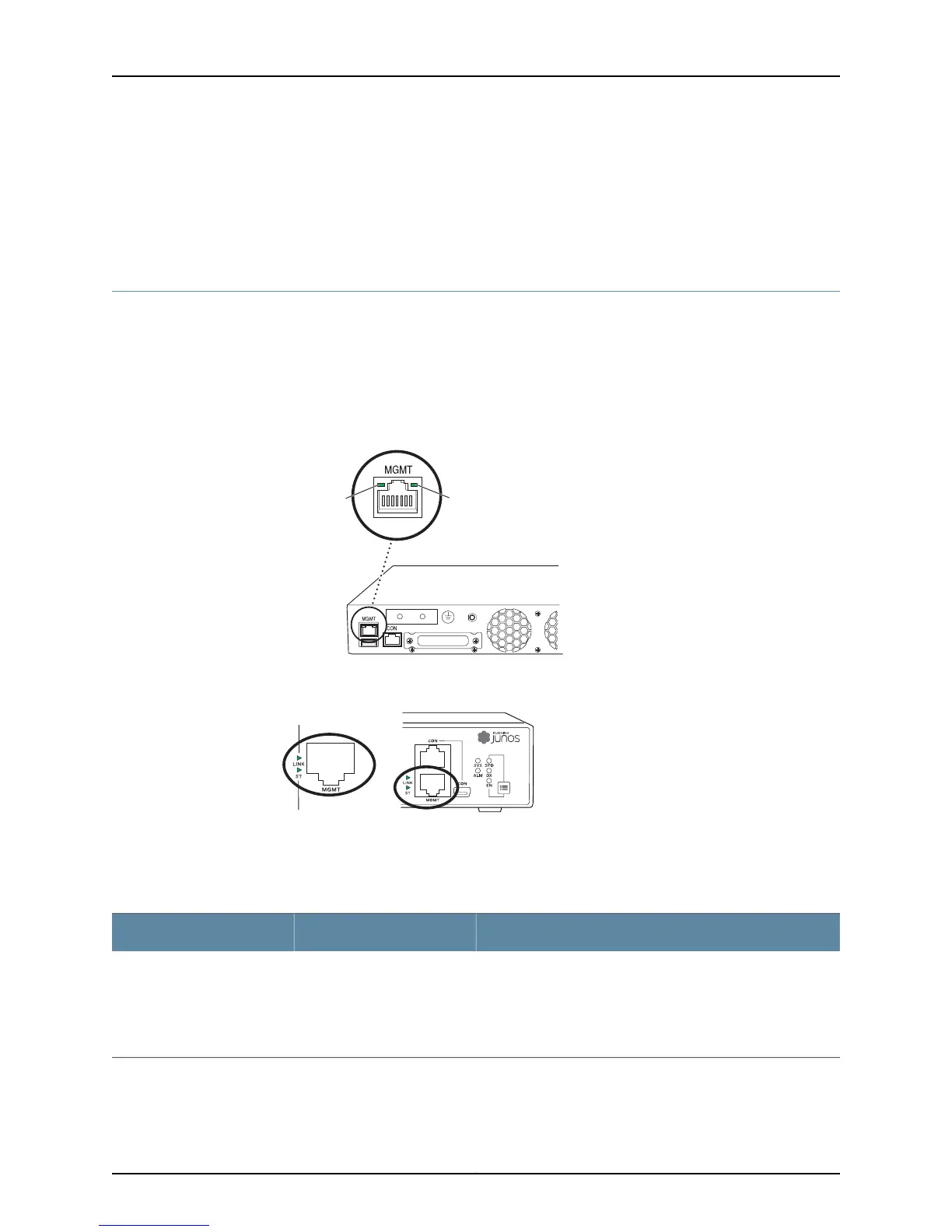

Figure 12: LEDs on the Management Port on an EX2200 Switch Except
the EX2200-C Switch Model
g027006
Link/Activity
LED
Status
LED
Figure 13: LEDs on the Management Port on an EX2200-C Switch
g021155
Status
LED
Link/Activity
LED
Table 7 on page 17 describes the Link/Activity LED.
Table 7: Link/Activity LED on the Management Port on EX2200 Switches
State and DescriptionColorLED
•
Blinking—The port and the link are active, and there is link
activity.
•
On steadily—The port and the link are active, but there is no
link activity.
•
Off—The port is not active.
GreenLink/Activity
Table 8 on page 18 describes the Status LED.
17Copyright © 2011, Juniper Networks, Inc.
Chapter 2: Component Descriptions
