Requirements for Mounting an EX2200 Switch on a Desktop or Wall
You can install the switch on a desktop or wall. When choosing a location, allow at least
6 in. (15.2 cm) of clearance between the front and back of the chassis and adjacent
equipment or walls.
Ensure that the wall onto which the switch is installed is stable and securely supported.
If you are mounting the switch in sheetrock (wall board with a gypsum plaster core) or
in wall board not backed by wall studs, use hollow wall anchors capable of supporting
the combined weight of two fully loaded chassis. Insert the screws into wall studs
wherever possible to provide added support for the chassis.
Use the wall-mount kit from Juniper Networks to mount the switch on a wall. The
wall-mount kit is not part of the standard package and must be ordered separately.
Related
Documentation
Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches
on page 60
•
• Wall-Mounting Warnings for EX2200 Switches on page 171
• Mounting an EX2200 Switch on a Desk or Other Level Surface on page 75
• Mounting an EX2200 Switch on a Wall on page 88
Clearance Requirements for Airflow and Hardware Maintenance for EX2200 Switches
When planning the site for installing an EX2200 switch, you must allow sufficient
clearance around the installed switch. Figure 16 on page 60 shows the clearance
requirement for EX2200 switches except the EX2200-C switch models. Figure 17 on
page 61 shows the clearance requirement for the EX2200-C switch models.

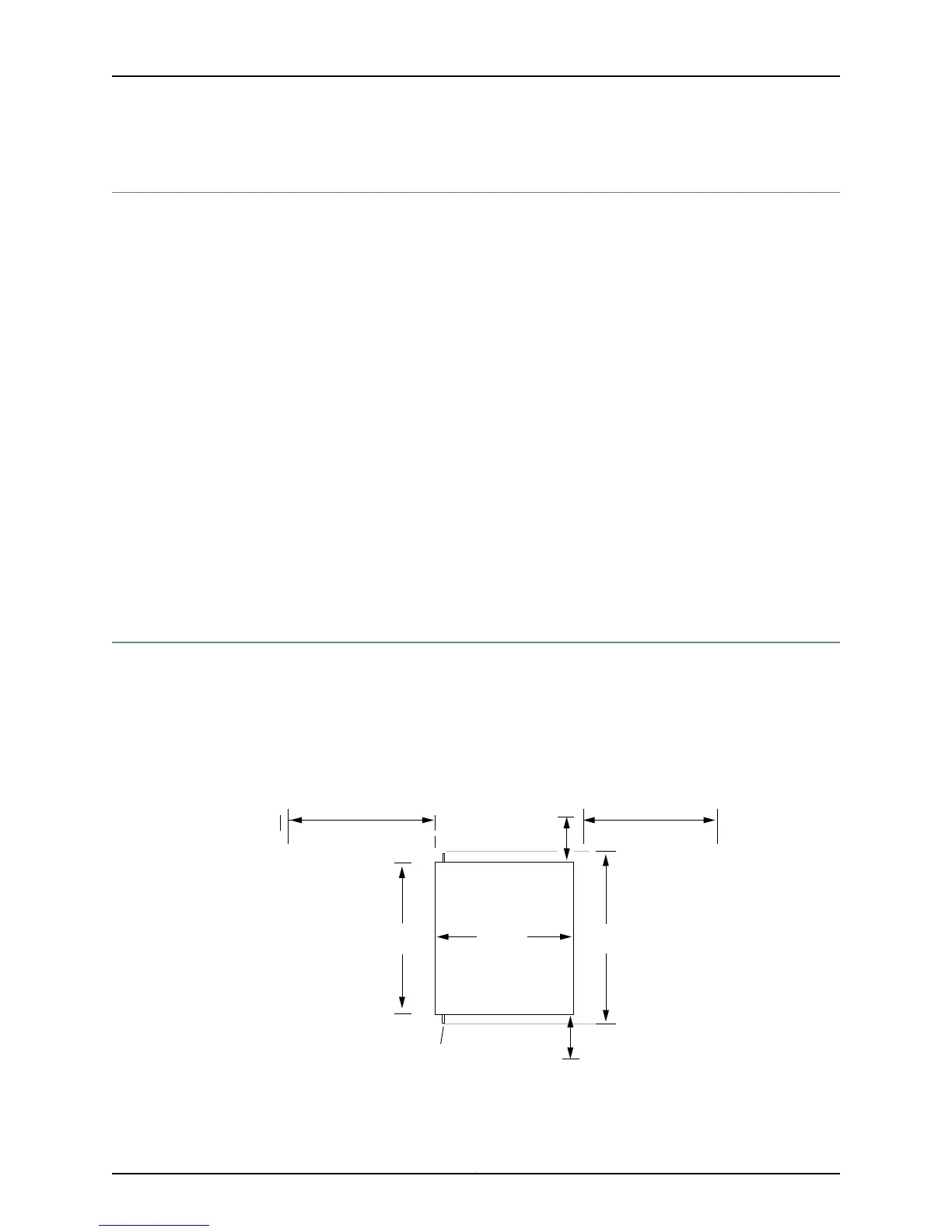

Figure 16: Clearance Requirements for Airflow and Hardware Maintenance
for EX2200 Switches Except EX2200-C Switch Models
g027009
Mounting bracket
6" (15.2 cm)
for airflow
Rear
Front
17.5"
44.5 cm
10.5"
(26.7 cm)
Clearance requiredClearance required
for maintenancefor maintenance
24" (61 cm) 24" (61 cm)
6" (15.2 cm)
for airflow
19"
(48.2 cm)
Copyright © 2011, Juniper Networks, Inc.60
Complete Hardware Guide for EX2200 Ethernet Switches
