Juniper EX2300 Series Hardware Guide

5. Hook the plasc cover on one side of the terminal block and gently bend it inward to hook it on the
other side also.
6. Close the input circuit breaker.
SEE ALSO
Power Supply in EX2300 Switches | 46
Connecng the EX2300 to External Devices
IN THIS SECTION
Connect a Device to a Network for Out-of-Band Management | 147
Connect a Device to a Management Console Using an RJ-45 Connector | 148
Connect an EX Series Switch to a Management Console Using the Mini-USB Type-B Console Port | 149
Connect a Device to a Network for Out-of-Band Management
Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. Figure 81 on page
147 shows the RJ-45 connector of the Ethernet cable supplied with the device.

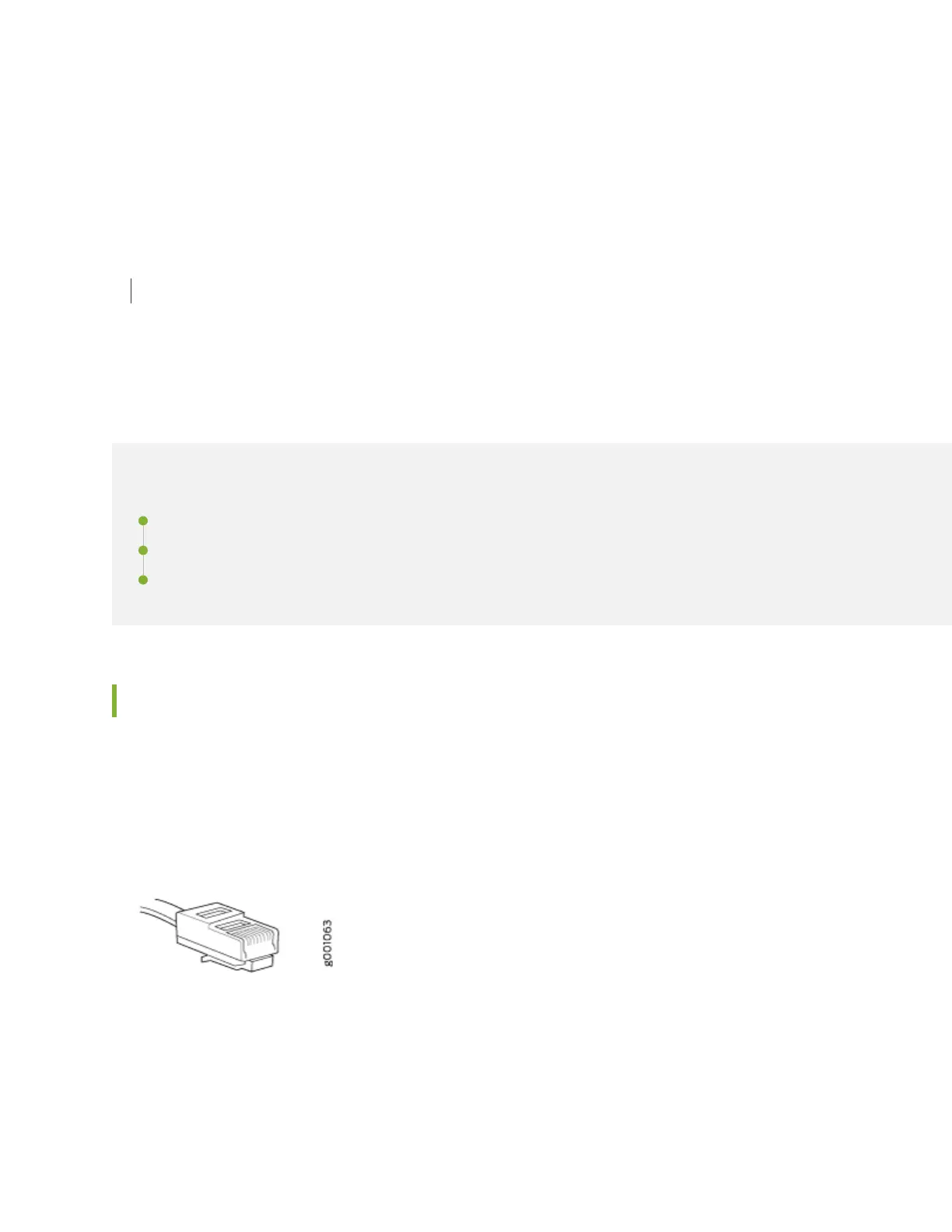

Figure 81: RJ-45 Connector on an Ethernet Cable
You can monitor and manage these devices by using a dedicated management channel. Each device has
a management port to which you can connect an Ethernet cable with an RJ-45 connector. Use the
management port to connect the device to the management device.
To connect a device to a network for out-of-band management (see Figure 82 on page 148):
147

Juniper EX2300 Series Specifications

General

Software	Junos OS
Model	EX2300
Ports	24 or 48 10/100/1000BASE-T ports
Uplinks	4 x 1GbE/10GbE SFP+/SFP uplinks
Power Supply	Internal or external power supply options
Rack Units	1U
PoE/PoE+ Ports	Available on some models (EX2300-C and EX2300)
Operating Temperature	0° to 45°C
Input Voltage	100 to 240 VAC
Layer 3 Features	RIP, OSPF, VRRP
Layer 2 Features	VLAN, STP, RSTP, MSTP, LACP
Security Features	802.1X, DHCP snooping
Management	CLI, Web UI, SNMP
