Juniper EX2300 Series Hardware Guide

b. Insert the lock into the security slot on your chassis and set the lock to the locked posion using
the key. See Figure 16.

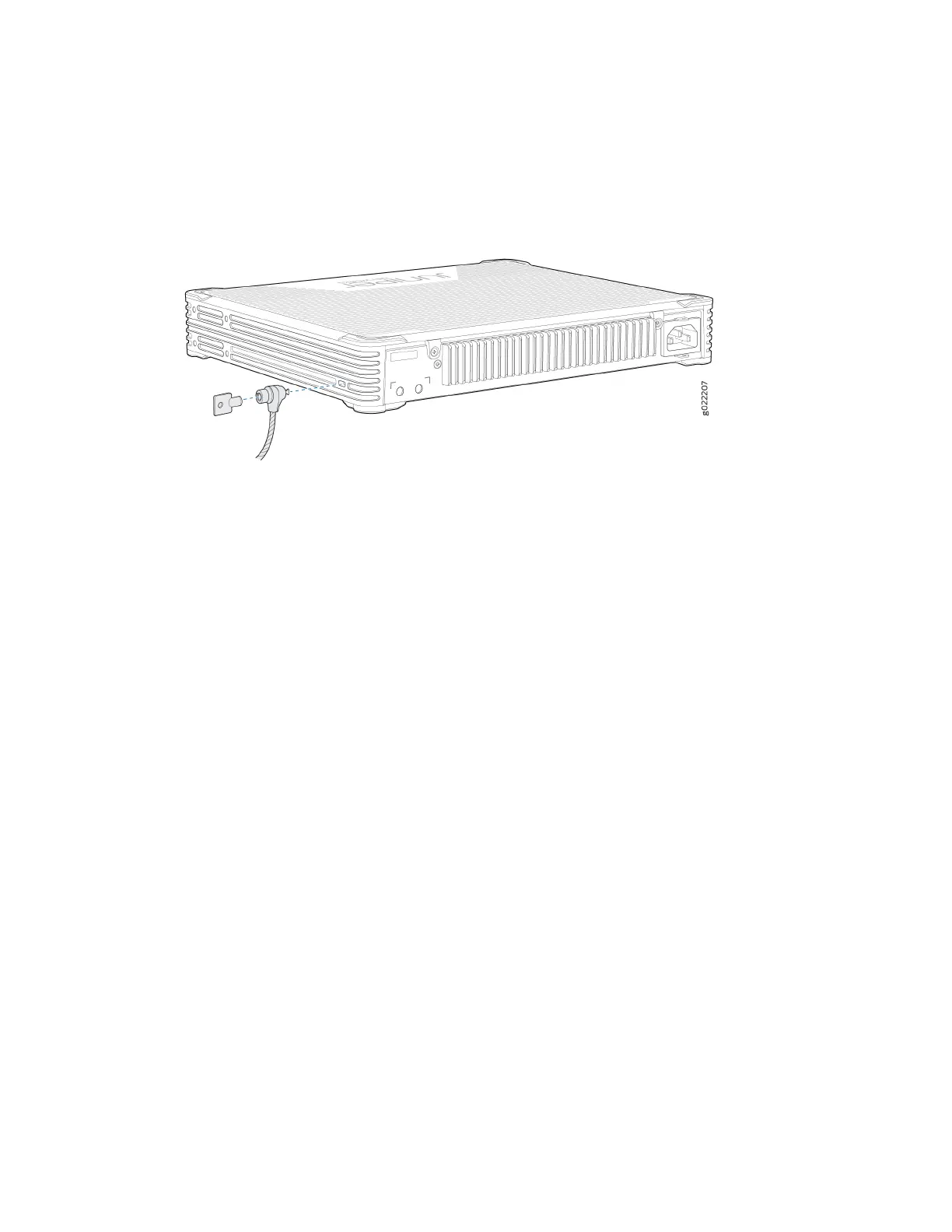

Figure 65: Securing the EX2300-C Switch by Using the Security Slot
Mounng an EX2300 Switch Except the EX2300-C Switch and the EX2300-24MP
and EX2300-48MP Models on a Wall
Before mounng the switch on a wall:
• Verify that the site meets the requirements described in "Site Preparaon Checklist for EX2300
Switches" on page 53.
• Read
General Safety Guidelines and Warnings , with parcular aenon to Chassis and Component
Liing Guidelines .
Ensure that you have the following parts and tools available:
• 2 wall-mounng brackets (provided in the wall-mount kit)
• 12 wall-mounng bracket screws (provided in the wall-mount kit)
• 6 mounng screws (8-32 x 1.25 in. or M4 x 30 mm) (not provided)
• Hollow wall anchors rated to support up to 75 lb (34 kg) if you are not screwing the screws directly
into wall studs (not provided)
• Phillips (+) screwdriver, number 2
You can mount an EX2300 switch except the EX2300-C switch and the EX2300-24MP and
EX2300-48MP models on a wall by using the separately orderable wall-mount kit.
To mount the switch on a wall:
1. Remove the switch from the shipping carton (see "Unpacking an EX2300 Switch" on page 101).
124

Juniper EX2300 Series Specifications

General

Software	Junos OS
Model	EX2300
Ports	24 or 48 10/100/1000BASE-T ports
Uplinks	4 x 1GbE/10GbE SFP+/SFP uplinks
Power Supply	Internal or external power supply options
Rack Units	1U
PoE/PoE+ Ports	Available on some models (EX2300-C and EX2300)
Operating Temperature	0° to 45°C
Input Voltage	100 to 240 VAC
Layer 3 Features	RIP, OSPF, VRRP
Layer 2 Features	VLAN, STP, RSTP, MSTP, LACP
Security Features	802.1X, DHCP snooping
Management	CLI, Web UI, SNMP
