Juniper EX2300 Series Hardware Guide

Table 5: System LEDs in EX2300-24MP and EX2300-48MP Models (Connued)
LED Label Color State and Descripon
Unlit The switch is powered o or halted.
SEE ALSO
Chassis Component Alarm Condions on EX2300 Switches | 233
Check Acve Alarms with the J-Web Interface | 235
Understand Alarm Types and Severity Levels on EX Series Switches | 231
Management Port LEDs in EX2300 Switches
The management port on an EX2300 switch has two LEDs that indicate link/acvity and port status.
The EX2300 switches except the EX2300-C switch and EX2300-24MP and EX2300-48MP models have
the management port on the rear panel; the EX2300-C switches and EX2300-24MP and EX2300-48MP
models have the management port on the front panel. See Figure 20 on page 30, Figure 21 on page
31, Figure 22 on page 32, and Figure 23 on page 32.

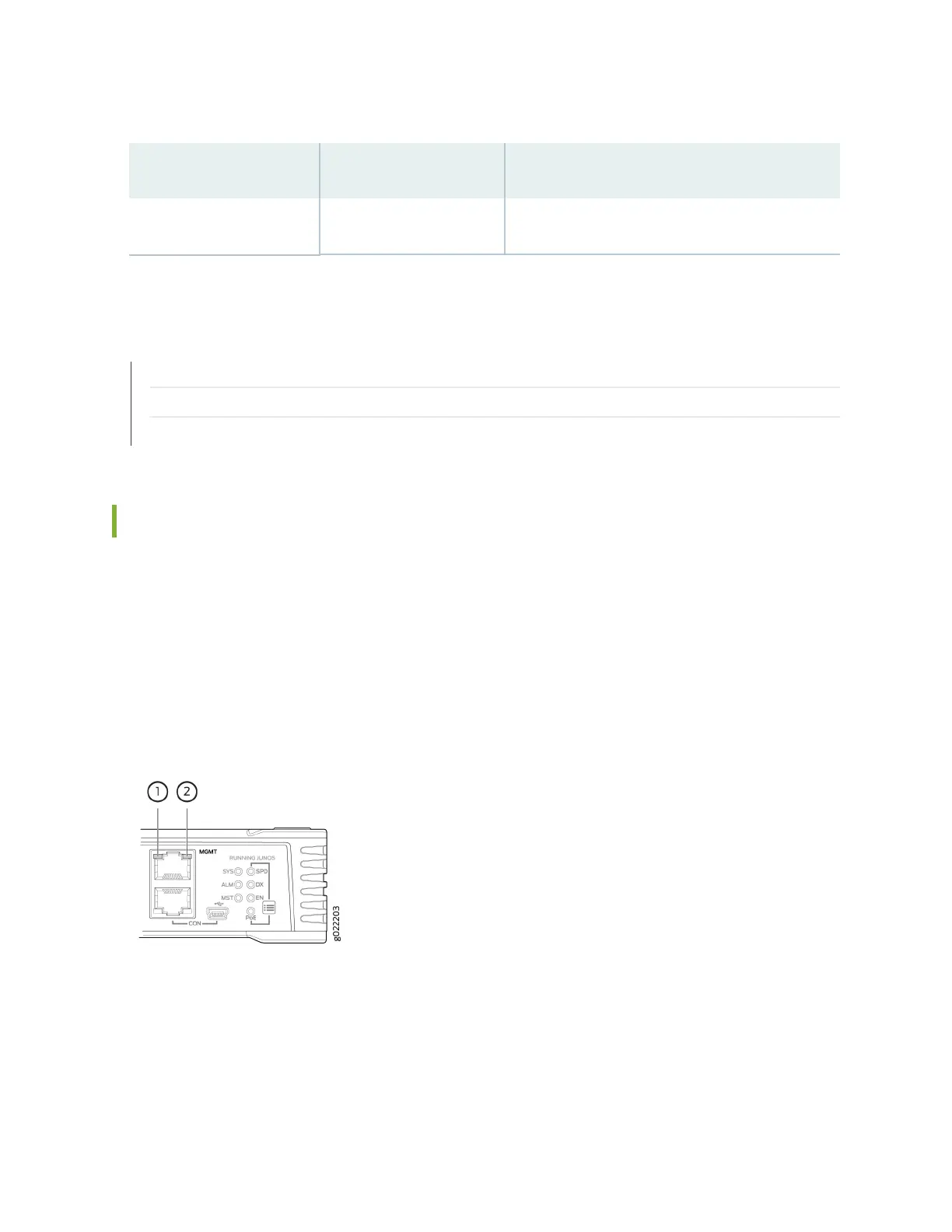

Figure 20: LEDs on the Management Port on EX2300-C Switches
30

Juniper EX2300 Series Specifications

General

Software	Junos OS
Model	EX2300
Ports	24 or 48 10/100/1000BASE-T ports
Uplinks	4 x 1GbE/10GbE SFP+/SFP uplinks
Power Supply	Internal or external power supply options
Rack Units	1U
PoE/PoE+ Ports	Available on some models (EX2300-C and EX2300)
Operating Temperature	0° to 45°C
Input Voltage	100 to 240 VAC
Layer 3 Features	RIP, OSPF, VRRP
Layer 2 Features	VLAN, STP, RSTP, MSTP, LACP
Security Features	802.1X, DHCP snooping
Management	CLI, Web UI, SNMP
