1—
Link/Acvity LED
2—
Status LED

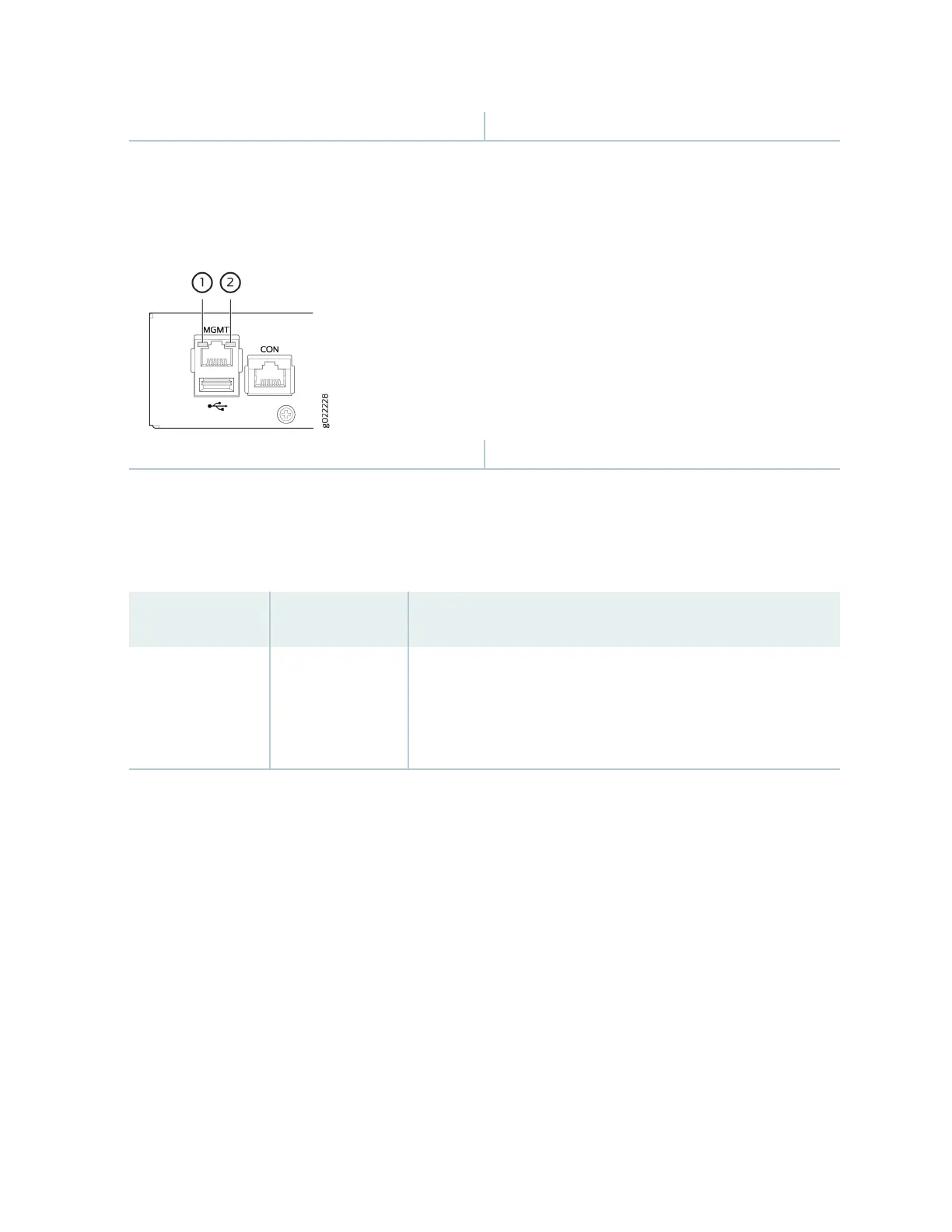

Figure 21: LEDs on the Management Port on EX2300 Switches Except EX2300-24MP and
EX2300-48MP Models
1—
Link/Acvity LED
2—
Status LED
Table 6 on page 31 describes the Link/Acvity LED on the management port on EX2300 switches
except the EX2300-24MP and EX2300-48MP switch models.
Table 6: Link/Acvity LED on the Management Port on EX2300 Switches Except the EX2300-24MP
and EX2300-48MP Switch Models
LED Color State and Descripon
Link/Acvity Green
• Blinking—The port and the link are acve, and there is link
acvity.
• O—The port is not acve.
Table 7 on page 32 describes the Status LED on the management port on EX2300 switches except the
EX2300-24MP and EX2300-48MP switch models.
