Juniper EX2300 Series Hardware Guide

3—
Port status mode LEDs. The LED labeled PoE
is present only on models with PoE
capability.
6—
10-Gigabit Ethernet uplink ports

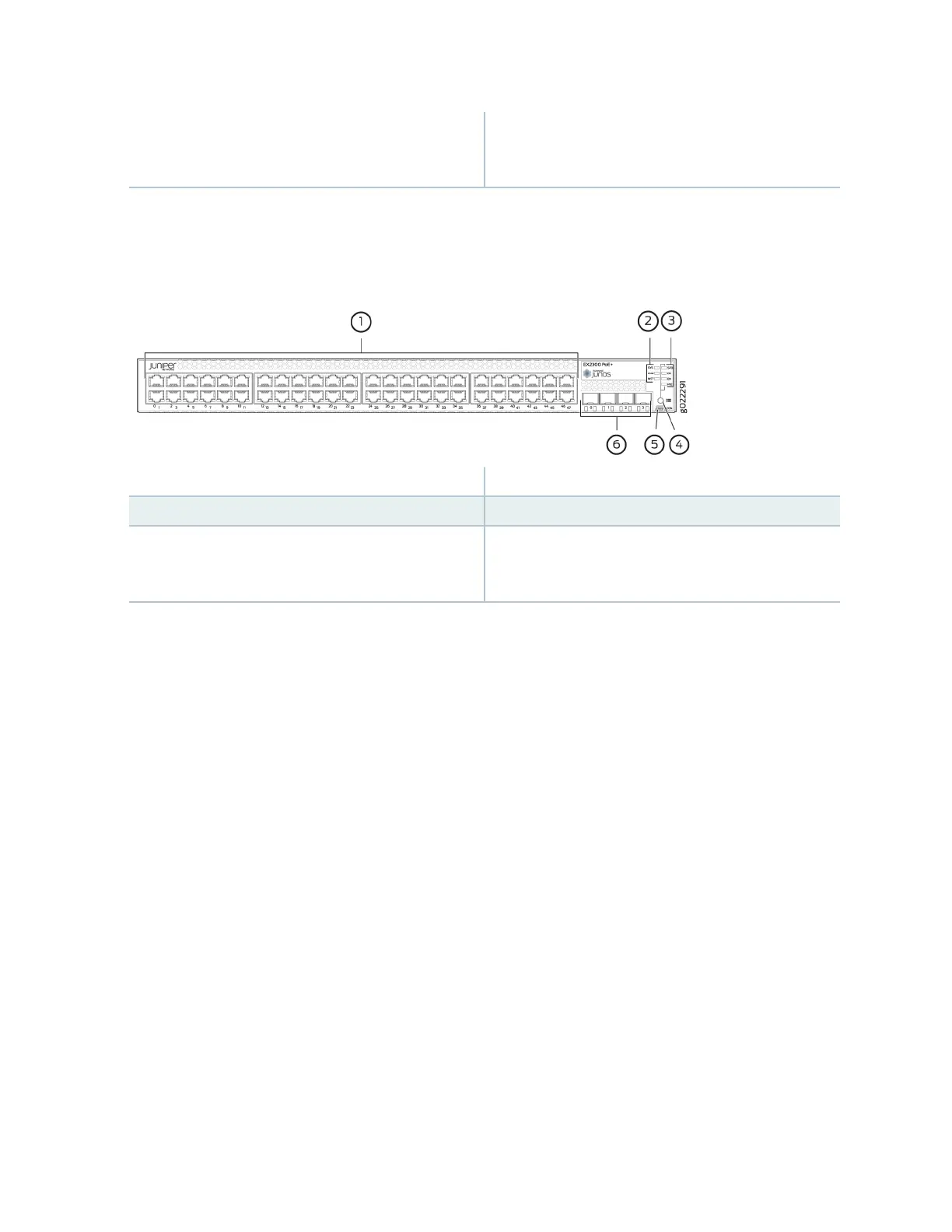

Figure 4: Front Panel of an EX2300 Switch with 48 Gigabit Ethernet Ports with PoE Capability Except
the EX2300-48MP Model
1—
RJ-45 network ports
4—
Factory Reset/Mode buon
2—
Chassis status LEDs
5—
Mini-USB console port
3—
Port status mode LEDs. The LED labeled PoE
is present only on models with PoE
capability.
6—
10-Gigabit Ethernet uplink ports
The front panel of EX2300-24MP switch models consists of the following components:
• QR code
• System LEDs
• One USB port
• One management port
• Eight 100/1000/2500 BASE-T Gigabit Ethernet ports with PoE/PoE+ capability
• 16 10/100/1000 BASE-T Gigabit Ethernet ports with PoE/PoE+ capability
• Four built-in 10-Gigabit Ethernet uplink ports. You can use these ports to forward network trac or
congure them into VCPs to interconnect EX2300 switches into a Virtual Chassis.
• One RJ-45 console port
The front panel of EX2300-48MP switch models consists of the following components:
• QR code
• System LEDs
8

Juniper EX2300 Series Specifications

General

Software	Junos OS
Model	EX2300
Ports	24 or 48 10/100/1000BASE-T ports
Uplinks	4 x 1GbE/10GbE SFP+/SFP uplinks
Power Supply	Internal or external power supply options
Rack Units	1U
PoE/PoE+ Ports	Available on some models (EX2300-C and EX2300)
Operating Temperature	0° to 45°C
Input Voltage	100 to 240 VAC
Layer 3 Features	RIP, OSPF, VRRP
Layer 2 Features	VLAN, STP, RSTP, MSTP, LACP
Security Features	802.1X, DHCP snooping
Management	CLI, Web UI, SNMP
