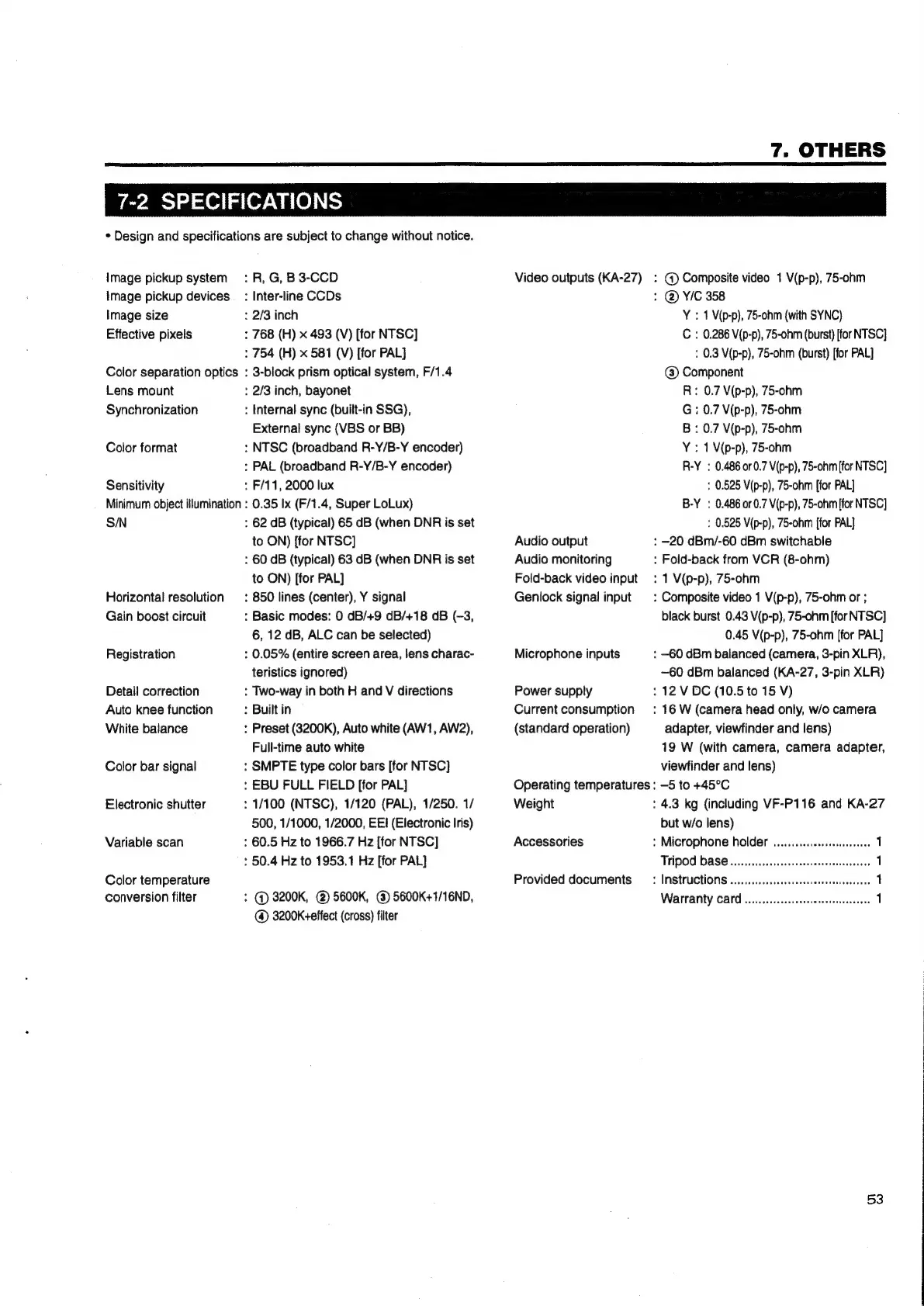

7. OTHERS
7-2. SPECIFICATIONS
* Design and specifications are subject to change without notice.
Image pickup system: R, G, B 3-CCD Video outputs (KA-27)
Image pickup devices _ : Inter-line CCDs
Image size : 2/3 inch
Effective pixels : 768 (H) x 493 (V) [for NTSC]
: 754 (H) x 581 (V) [for PAL]
Color separation optics : 3-block prism optical system, F/1.4
: @ Composite video 1 V(p-p), 75-ohm
: @ YC 358
Y : 1 V(p-p), 75-ohm (with SYNC)
C : 0.286 Vp-p), 75-ohm (burst) [for NTSC}
: 0.3 V(p-p), 75-ohm (burst) [for PAL]
@) Component
Lens mount : 2/3 inch, bayonet R: 0.7 V(p-p), 75-ohm
Synchronization : Internal sync (built-in SSG), G: 0.7 V(p-p), 75-ohm
External sync (VBS or BB) B : 0.7 Vp-p), 75-ohm
Color format : NTSC (broadband R-Y/B-Y encoder) Y : 1 V(p-p), 75-ohm
: PAL (broadband R-Y/B-Y encoder) R-Y : 0.486 or 0.7 V(p-p), 75-ohm [for NTSC]
Sensitivity : F/11, 2000 lux : 0.525 V(p-p), 75-ohm [for PAL]
Minimum object illumination : 0.35 Ix (F/1.4, Super LoLux) B-Y : 0,486 or 0.7 V(p-p), 75-ohm [for NTSC}
S/N : 62 dB (typical) 65 dB (when DNR is set : 0.525 V(p-p), 75-ohm [for PAL]
to ON) {for NTSC] Audio output : -20 dBm/-60 dBm switchable
: 60 dB (typical) 63 dB (when DNR is set Audio monitoring : Fold-back from VCR (8-ohm)
to ON) [for PAL] Fold-back video input : 1 V(p-p), 75-ohm
Horizontal resolution : 850 lines (center), Y signal Genlock signal input — : Composite video 1 V(p-p), 75-ohm or ;
Gain boost circuit : Basic modes: 0 dB/+9 dB/+18 dB (-3, black burst 0.43 V(p-p), 75-ohm [for NTSC]
6, 12 dB, ALC can be selected) 0.45 V(p-p), 75-ohm [for PAL]
Registration : 0.05% (entire screen area, lens charac- Microphone inputs : -60 dBm balanced (camera, 3-pin XLR),
teristics ignored) ~60 dBm balanced (KA-27, 3-pin XLR)
Detail correction : Two-way in both H and V directions Power supply : 12 V DC (10.5 to 15 V)
Auto knee function : Built in Current consumption : 16 W (camera head only, w/o camera
White balance : Preset (3200K), Auto white (AW1, AW2), (standard operation) adapter, viewfinder and lens)
Full-time auto white 19 W (with camera, camera adapter,
Color bar signal : SMPTE type color bars [for NTSC} viewfinder and lens)
: EBU FULL FIELD [for PAL] Operating temperatures : —5 to +45°C
Electronic shutter : 1/100 (NTSC), 1/120 (PAL), 1/250. 1/ Weight : 4.3 kg (including VF-P116 and KA-27
500, 1/1000, 1/2000, EE! (Electronic Iris) but w/o lens)
Variable scan : 60.5 Hz to 1966.7 Hz [for NTSC] Accessories : Microphone holder ........cceesseeseee 1
: 50.4 Hz to 1953.1 Hz [for PAL] THIPOd DASE... ceseceseeeeesesteveesstaeenes 1
Color temperature Provided documents —: INStrUCTIONS 0... sec eeeceteeeseettteeteeee 1
conversion filter : @ 8200K, @ 5600K, @ 5600K+1/16ND, Warranty Card ...cecescsssessssessesssssesssens 1
@ 3200K+effect (cross) filter
