JVC KY-D29 - Camera Adapter (Ka-27)

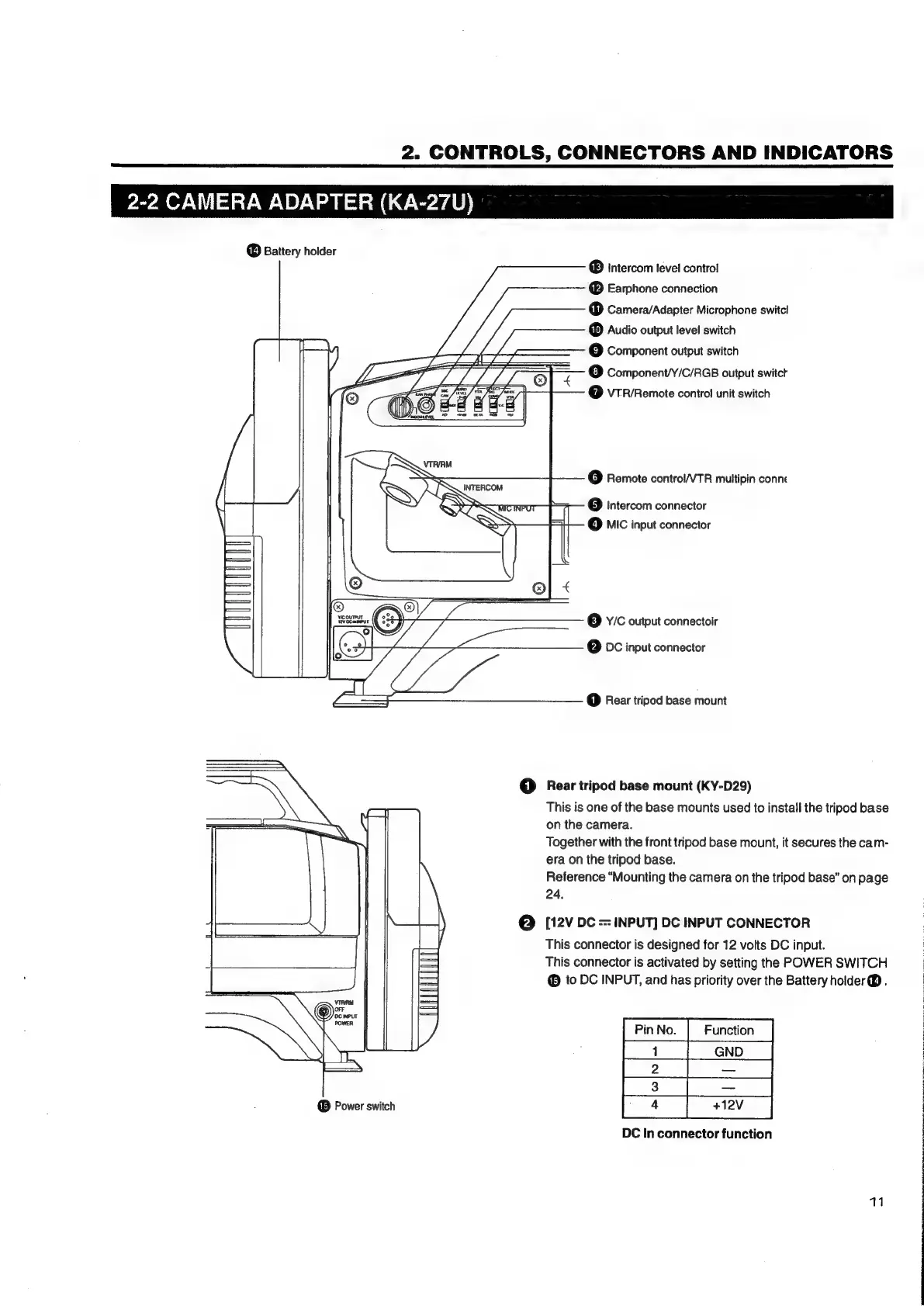

2. CONTROLS, CONNECTORS AND INDICATORS
2-2 CAMERA ADAPTER (KA-27U) .
® Battery holder
® Intercom level control
® Earphone connection
®@ Camera/Adapter Microphone switcl
@® Audio output level switch
9] Component output switch
8 ] Component/Y/C/RGB output switct
7 VTR/Remote control unit switch
® Power switch
e Remote control/VTR multipin conne
@ intercom connector
@ MIC input connector
3 ] Y/C output connectoir
@ DC input connector
@ Rear tripod base mount
@ Rear tripod base mount (KY-D29)
This is one of the base mounts used to install the tripod base
on the camera.
Together with the front tripod base mount, it secures the cam-
era on the tripod base.
Reference “Mounting the camera on the tripod base” on page
24.
@ [12V DC = INPUT] DC INPUT CONNECTOR
This connector is designed for 12 volts DC input.
This connector is activated by setting the POWER SWITCH
® to DC INPUT, and has priority over the Battery holder®.
[rae [raion
DC In connector function
11
