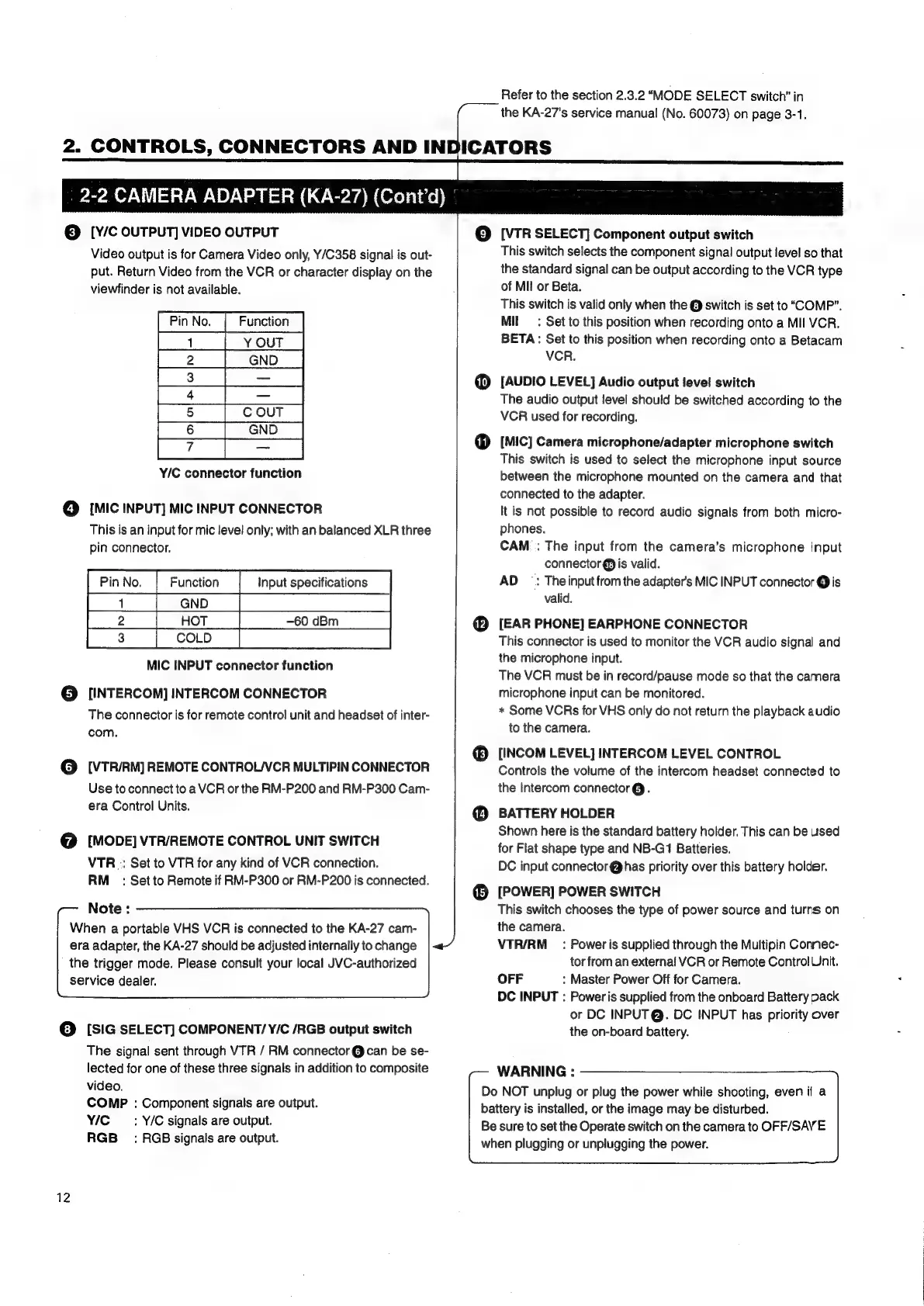

2.
CONTROLS,
CONNECTORS
AND
IN
2-2
CAMERA
ADAPTER
(KA-27)
(Cont'd)
Refer
to
the
section
2.3.2
“MODE
SELECT
switch”
in
the
KA-27's
service
manual
(No.
60073)
on
page
3-1.
ICATORS
©
[Y/C
OUTPUT]
VIDEO
OUTPUT
Video
output
is
for
Camera
Video
only,
Y/C358
signal
is
out-
put.
Return
Video
from
the
VCR
or
character
display
on
the
viewfinder
is
not
available.
PinNe_|
Function
|
Y/C
connector
function
@
IMIC
INPUT]
MIC
INPUT
CONNECTOR
This
is
an
input
for
mic
level
only;
with
an
balanced
XLR
three
pin
connector.
Input
specifications
|
2)
|
HOTT
800m
Pate
8)
RCOUD.
he
ete
MIC
INPUT
connector
function
©
[INTERCOM]
INTERCOM
CONNECTOR
The
connector
is
for
remote
control
unit
and
headset
of
inter-
com.
@
[VTR/RM]
REMOTE
CONTROL/VCR
MULTIPIN
CONNECTOR
Use
to
connect
to
a
VCR
or
the
RM-P200
and
RM-P300
Cam-
era
Control
Units.
@
[MODE]
VTR/REMOTE
CONTROL
UNIT
SWITCH
VTR
:
Set
to
VTR
for
any
kind
of
VCR
connection.
RM_:
Set
to
Remote
if
RM-P300
or
RM-P200
is
connected.
Note
:
When
a
portable
VHS
VCR
is
connected
to
the
KA-27
cam-
era
adapter,
the
KA-27
should
be
adjusted
internally
to
change
the
trigger
mode.
Please
consult
your
local
JVC-authorized
service
dealer.
©
[SIG
SELECT]
COMPONENT/
Y/C
/RGB
output
switch
The
signal
sent
through
VTR
/
RM
connector
@
can
be
se-
lected
for
one
of
these
three
signals
in
addition
to
composite
video.
COMP
:
Component
signals
are
output.
YiC
—_:
Y/C
signals
are
output.
RGB:
RGB
signals
are
output.
12
©
[VTR
SELECT]
Component
output
switch
This
switch
selects
the
component
signal
output
jevel
so
that
the
standard
signal
can
be
output
according
to
the
VCR
type
of
MIi
or
Beta.
This
switch
is
valid
only
when
the
@
switch
is
set
to
“COMP”.
MII:
Set
to
this
position
when
recording
onto
a
MII
VCR.
BETA:
Set
to
this
position
when
recording
onto
a
Betacam
VCR.
®
[AUDIO
LEVEL]
Audio
output
level
switch
The
audio
output
level
should
be
switched
according
to
the
VCR
used
for
recording.
@
[MIC]
Camera
microphone/adapter
microphone
switch
This
switch
is
used
to
select
the
microphone
input
source
between
the
microphone
mounted
on
the
camera
and
that
connected
to
the
adapter.
It
is
not
possible
to
record
audio
signals
from
both
micro-
phones.
CAM
:
The
input
from
the
camera’s
microphone
input
connector
€D
is
valid.
AD
_
:
Theinput
from
the
adapters
MIC
INPUT
connector
@
is
valid.
@
[EAR
PHONE]
EARPHONE
CONNECTOR
This
connector
is
used
to
monitor
the
VCR
audio
signal
and
the
microphone
input.
The
VCR
must
be
in
record/pause
mode
so
that
the
camera
microphone
input
can
be
monitored.
*
Some VCRs
for
VHS
only
do
not
return
the
playback
audio
to
the
camera.
®
[INCOM
LEVEL]
INTERCOM
LEVEL
CONTROL
Controls
the
volume
of
the
intercom
headset
connected
to
the
Intercom
connector
@.
@®
BATTERY
HOLDER
Shown
here
is
the
standard
battery
holder.
This
can
be
used
for
Flat
shape
type
and
NB-G1
Batteries.
DC
input
connector@has
priority
over
this
battery
holder.
@®
[POWER]
POWER
SWITCH
This
switch
chooses
the
type
of
power
source
and
turns
on
the
camera.
VTR/RN
_
:
Poweris
supplied
through
the
Multipin
Connec-
tor
from
an
external
VCR
or
Remote
Control
Unit.
OFF
:
Master
Power
Off
for
Camera.
DC
INPUT
:
Power
is
supplied
from
the
onboard
Battery
pack
or
DC
INPUT@.
DC
INPUT
has
priority
over
the
on-board
battery.
WARNING
:
Do
NOT
unplug
or
plug
the
power
while
shooting,
even
if
a
battery
is
installed,
or
the
may
be
disturbed.
Be
sure
to
set
the
Operate
switch
on
the
camera
to
OFF/SAVE
when
plugging
or
unplugging
the
power.
