4.3.3 Recommendations for cooling and combined heat/cooling applications
Cooling and combined heat/cooling applications
Threaded meter housing with q
p
≤ 2,5 m
3
/h
Threaded meter housing with q
p
≥ 3,5 m
3
/h
and flange meters
(a)
(b)

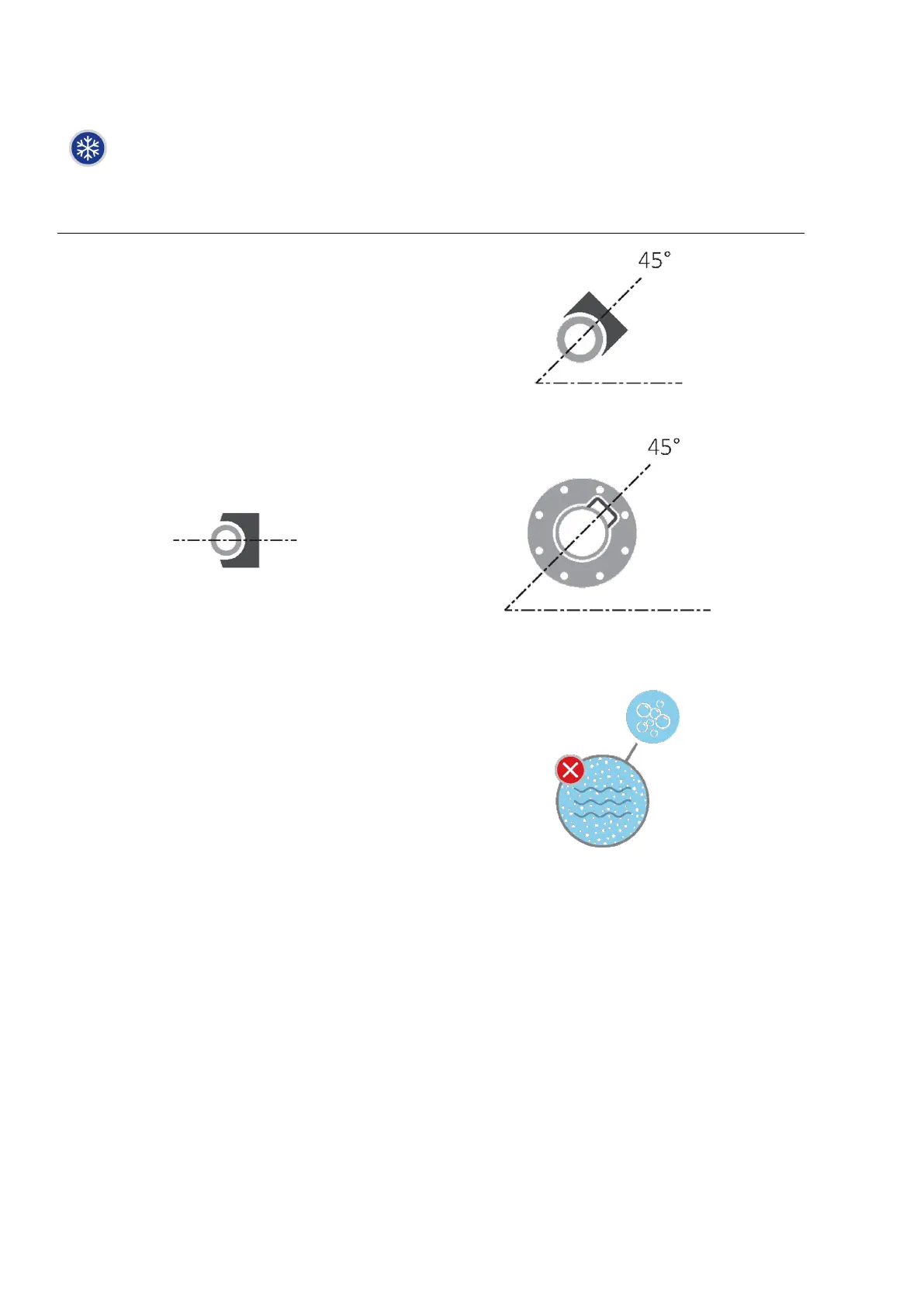

Figure 5.
Recommended orientation of Kamstrup flow sensors around the pipe axis at horizontal mounting
for cooling and combined heat/cooling applications.
(a) Threaded meter housings with q
p
≤ 2,5 m
3
/h.
(b) Threaded meter housings with q
p
≥ 3,5 m
3
/h and flange meters.
Note: District heating and cooling water must be free of air. Air bubbles will interfere severely with the ultrasound
signal. If there is risk of air, mount all flow sensors like in position (a) with the transducers to the side.
