Kamstrup MULTICAL 403 - 5 Dimensioned Sketches

MULTICAL® 403
Kamstrup A/S · Technical description · FILE100000166_B_EN-55121689_M1_07.2023
57

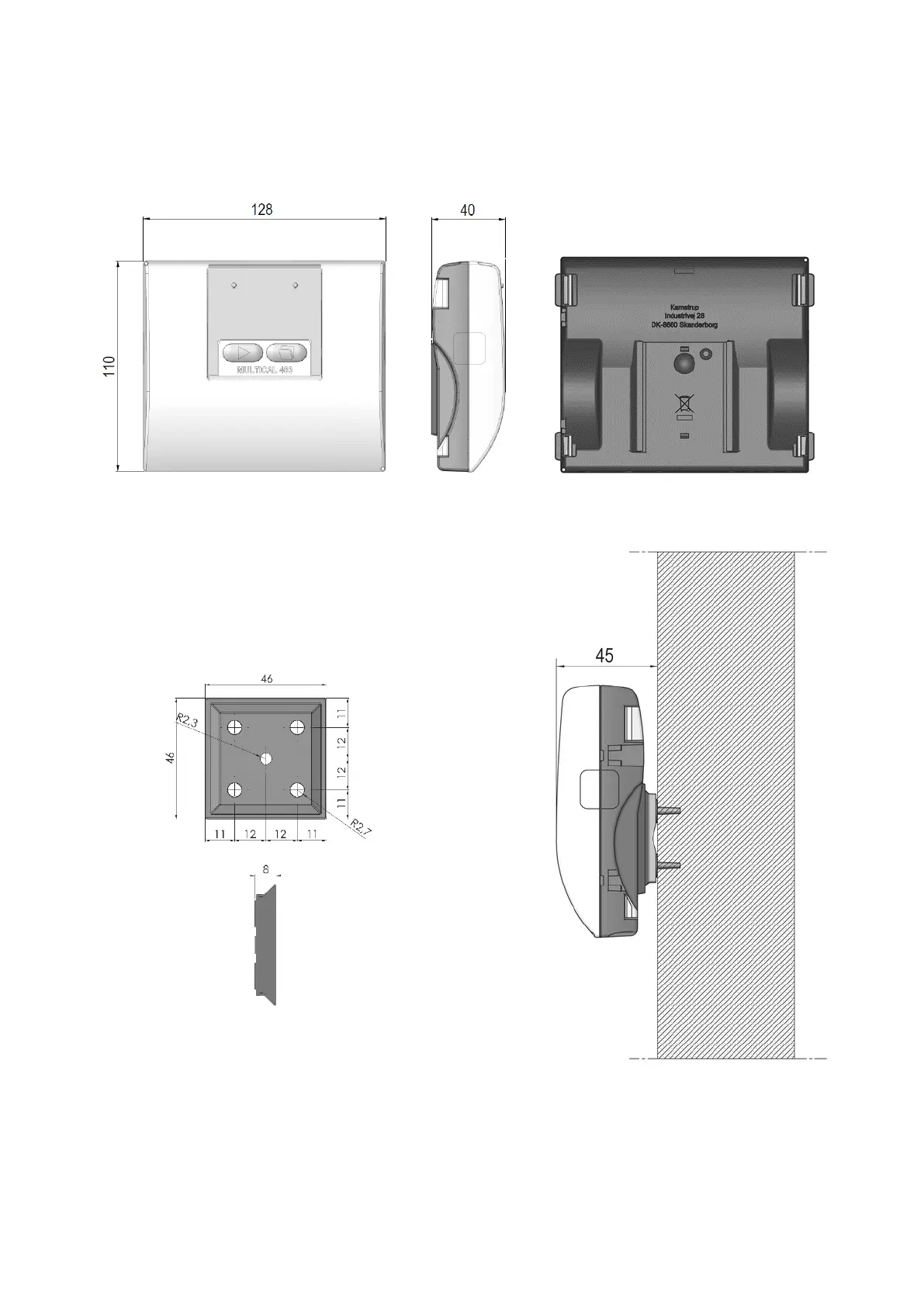

5 Dimensioned sketches
Note: All measurements in [mm]
Figure 7: Mechanical measurements of calculator
Figure 8: Wall bracket Figure 9: Mounted with wall bracket
