MULTICAL® 403
126
Kamstrup A/S · Technical description · FILE100000166_B_EN-55121689_M1_07.2023

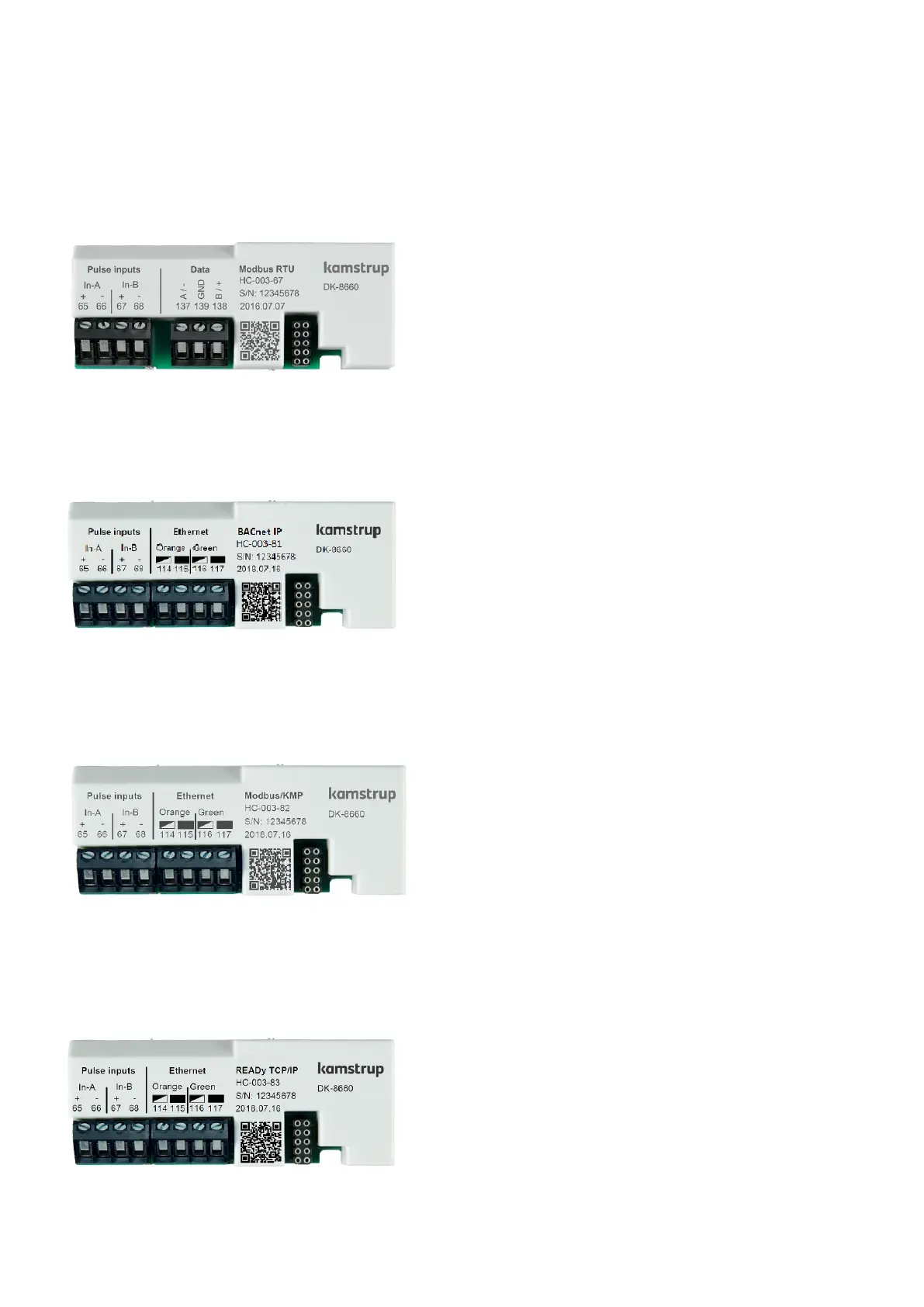

11.2.20 HC-003-67: Modbus RTU, inputs (In-A, In-B)
The Modbus RTU module are for use on a RS-485 industrial network. The Module is Compatible with Modbus
implementation guide V1.02 and supports communication speeds up to 115200 bit/s.
Modbus module enables reading of meters by building- and industrial-automation systems.
11.2.21 HC-003-81: BACnet IP, inputs (In-A, In-B)
The Module supports BACnet communication via Ethernet.
The BACnet IP enables reading of meters by building- and industrial-automation systems.
11.2.22 HC-003-82: Modbus/KMP TCP/IP, inputs (In-A, In-B)
The module supports two communication protocols via Ethernet, Modbus TCP and KMP.
The Modbus TCP module enables the reading of the meter via building and industry automation and KMP enables
the reading of current and logged values as well as configurations.
11.2.23 HC-003-83: READy Ethernet, inputs (In-A, In-B)
READy Ethernet module is a plug-and-play module. Once the meter is commissioned, the module starts sending
hourly data on the ethernet network.
Actual values are sent to the utility every hour 24/7/365.

Kamstrup MULTICAL 403 Specifications

General

Type	Ultrasonic Heat Meter
Flow Sensor	Ultrasonic
Pressure Rating	PN16
Battery Life	Up to 16 years
Approval	MID Class 2
Display	LCD
Communication	M-Bus, Wireless M-Bus, Modbus, BACnet
Power Supply	Battery
Accuracy	Class 2
Protection Class	IP54
Housing Material	Composite
Flow Rate Range	0.6 m3/h to 15 m3/h
