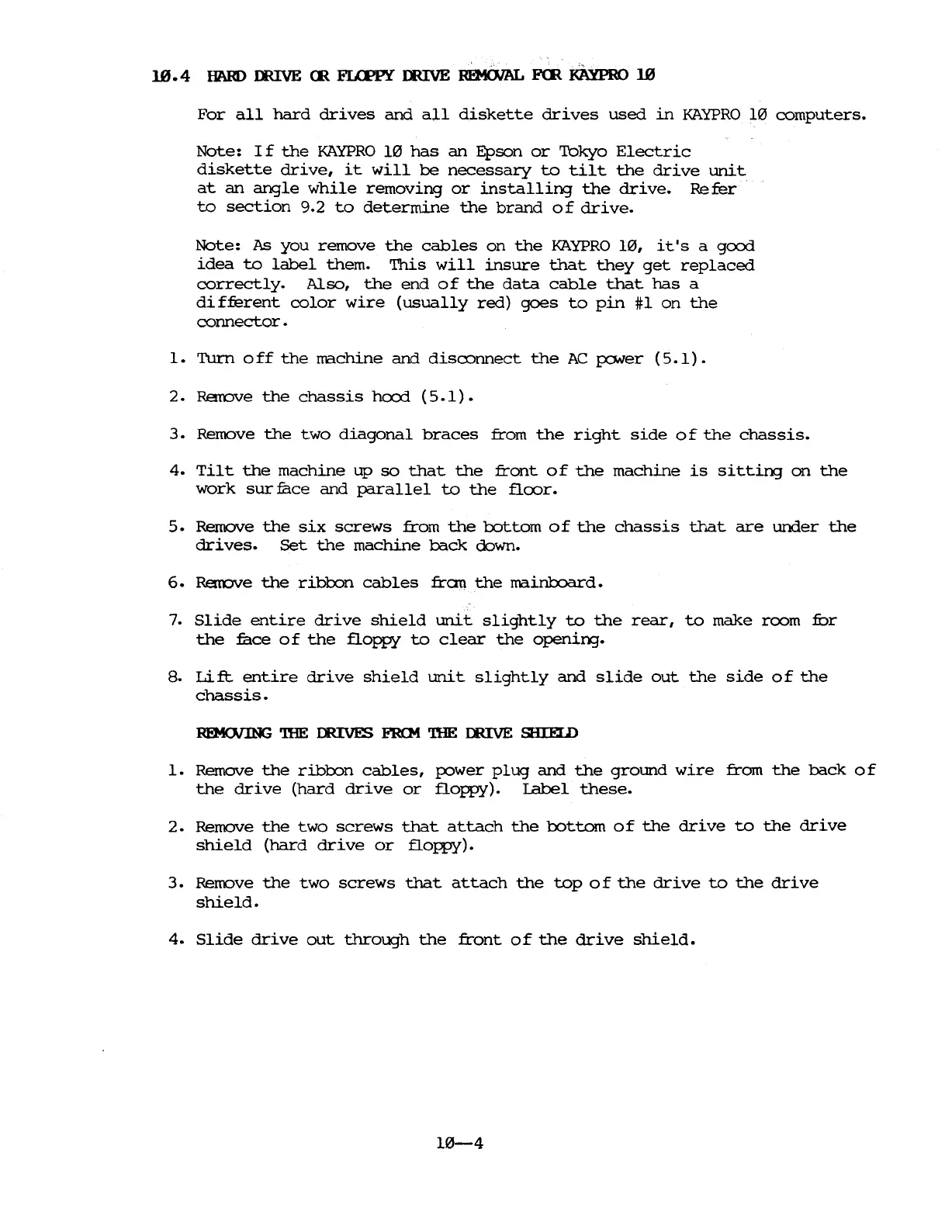

Kaypro 2 - 10-04.TIFF

For all hard drives and all diskette drives used in KAYPRO 10 computers.
Note: If the KAYPRO 10 has an Epson or Tokyo Electric
diskette drive, it will be necessary to tilt the drive unit
at an angle while removing or installing the drive. Re fer
to section 9.2 to determine the brand of drive.
Note: As you remove the cables on the KAYPRO 10, it's a good
idea to label them. This will insure that they get replaced
correctly. Also, the end of the data cable that has a
different color wire (usually red) goes to pin #l on the
connector.
1. Turn 0 ff the machine and disconnect the AC poNer (5. 1) .
2. Rarove the chassis hood (5.1).
3. Remove the two diagonal braces from the right side of the chassis.
4. Tilt the machine up so that the front of the machine is sitting on the
work sur face and Parallel to the floor.
5. Remove the six screws from the bottom of the chassis tr.at are under the
drives. set the machine back down.
6. Ratove the ribbon cables fran the main1::xJard.
7. Slide entire drive shield unit slightly to the rear, to make room fur
the face 0 f the floppy to clear the oPening.
8. Lift. entire drive shield unit slightly and slide out the side of the
chassis.
1. Remove the ribbon cables, power plug and the ground wire from the back of
the drive (hard drive or floppy). label these.
2. Remove the two screws that attach the bottom of the drive to the drive
shield (hard drive or floppy).
3. Rerrove the two screws that attach the top of the drive to the drive
shield.
4. Slide drive out through the front of the drive shield.
10-4
