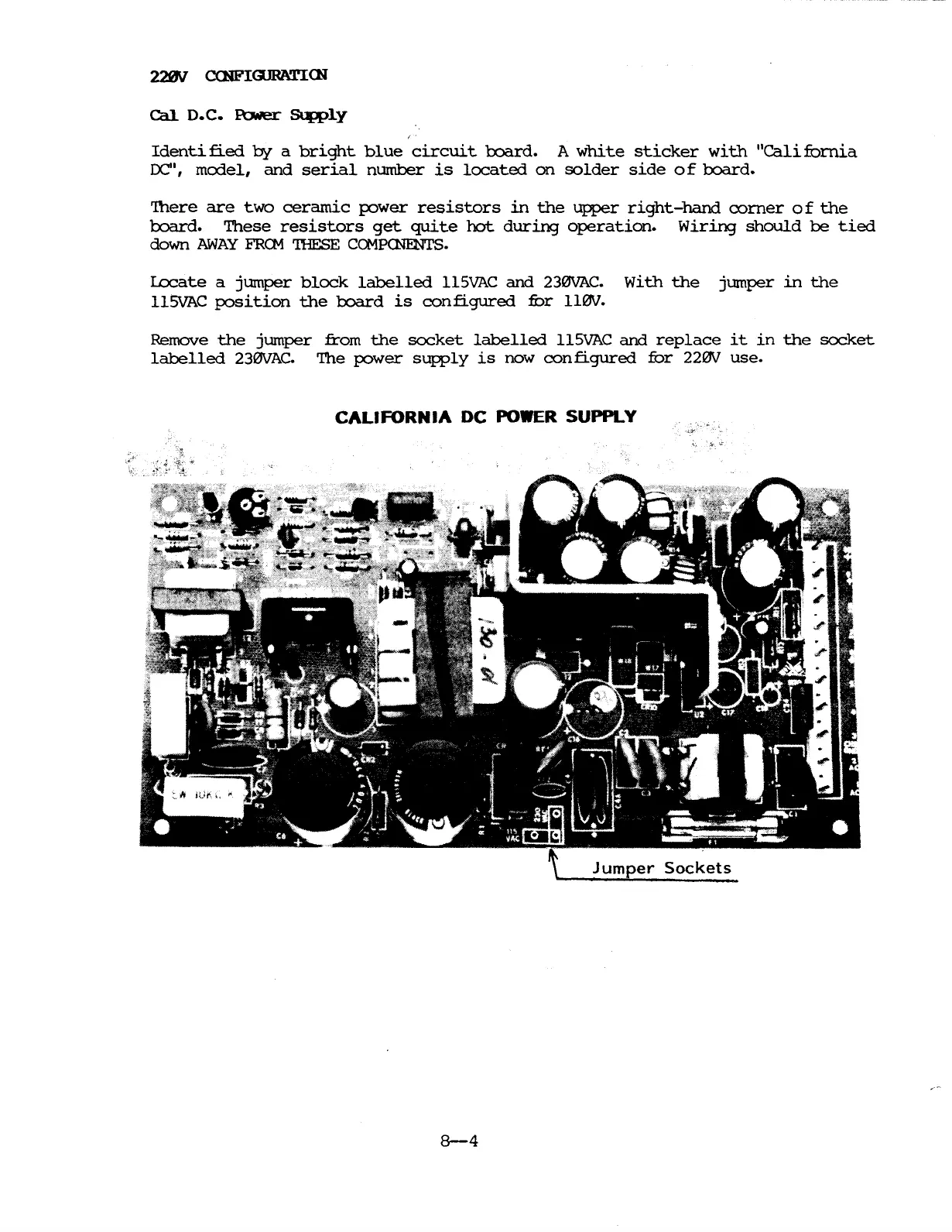

21!lN CCNFIGJRATICN
Cal D.C. IbNer &g>ly
Identified by a bright blue circuit b::>ard. A white sticker with "California
DC", mmel, and serial number is located on solder side 0 f l:x:>ard.
'Ihere are two ceramic fOwer resistors in the upper right-hand corner 0 f the
board. 'Ihese resistors get quite hot during operation. Wiring should lJe tied
down AWAY FRCM 'lliESE CCMPCNENTS.
Locate a jumper block labelled 115VAC and 230VAC. With the jumper in the
llSVAC position the l:x:>ard is configured fur 110\1.
Remove the jumper from the socket labelled l1SVAC and replace it in the socket
labelled 230VAC. 'Ihe fOwer supply is now configured fur 220\1 use.
CALIFORNIA DC POWER SUPPLY
Jumper Sockets
8-4
