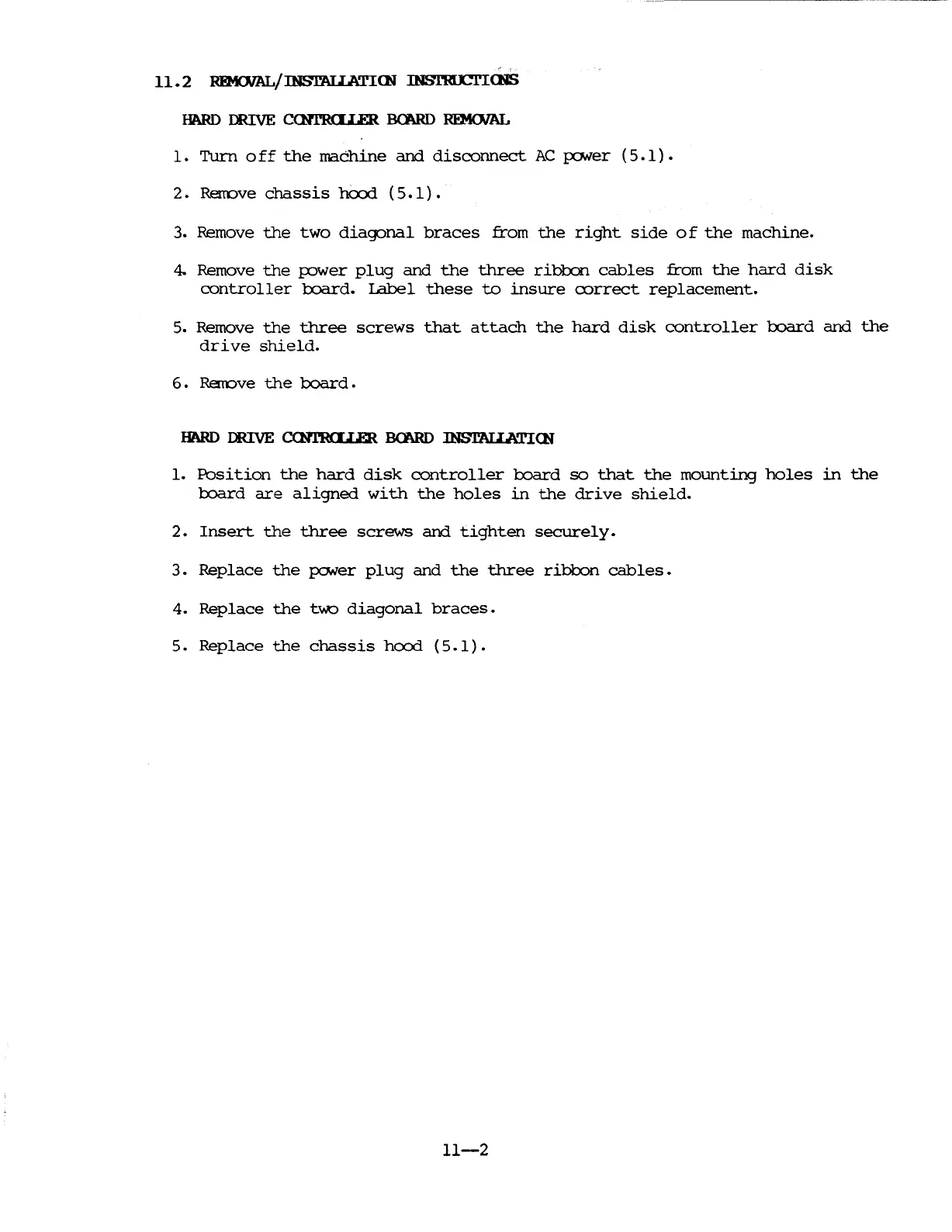

1. Turn off the maChine and disconnect AC po.ver (5.1).
2. Remove chassis hood (5.1).
3. Remove the two diagonal braces from the right side 0 f the machine.
4. Remove the FOwer plug and the three ribbon cables from the hard disk
controller board. Label these to insure correct replacement.
5. Remove the three screws that attach the hard disk controller board and the
drive shield.
6. Remove the board.
HARD DRIVE CCNTRa.LER Ba\RD INSTALIATICN
1. Position the hard disk controller board so that the mounting holes in the
board are aligned with the holes in the drive shield.
2. Insert the three screws and tighten securely.
3. Replace the po.ver plug and the three ribbon cables.
4. Replace the two diagonal braces.
5. Replace the chassis hood (5. 1) .
