The high-densi ty diskette drives are currently being 0 fiered in the KAYFRO
ROUE, and KAYFRO 4X. These are 5-1/4 inch, double-sided drives with 192
tracks per inch. Each drive has 160 cylinders with a total of 320 tracks
and a fOrmatted storage capacity of 2.6 megabytes.
HIGH-DENSITY DISKEI'!'tS
'Ihe diskettes used with the high-density drives MUST be pre-fOrmatted 17
sector, 192 TPI diskettes.
DRIVE CCNFIGJRATICN

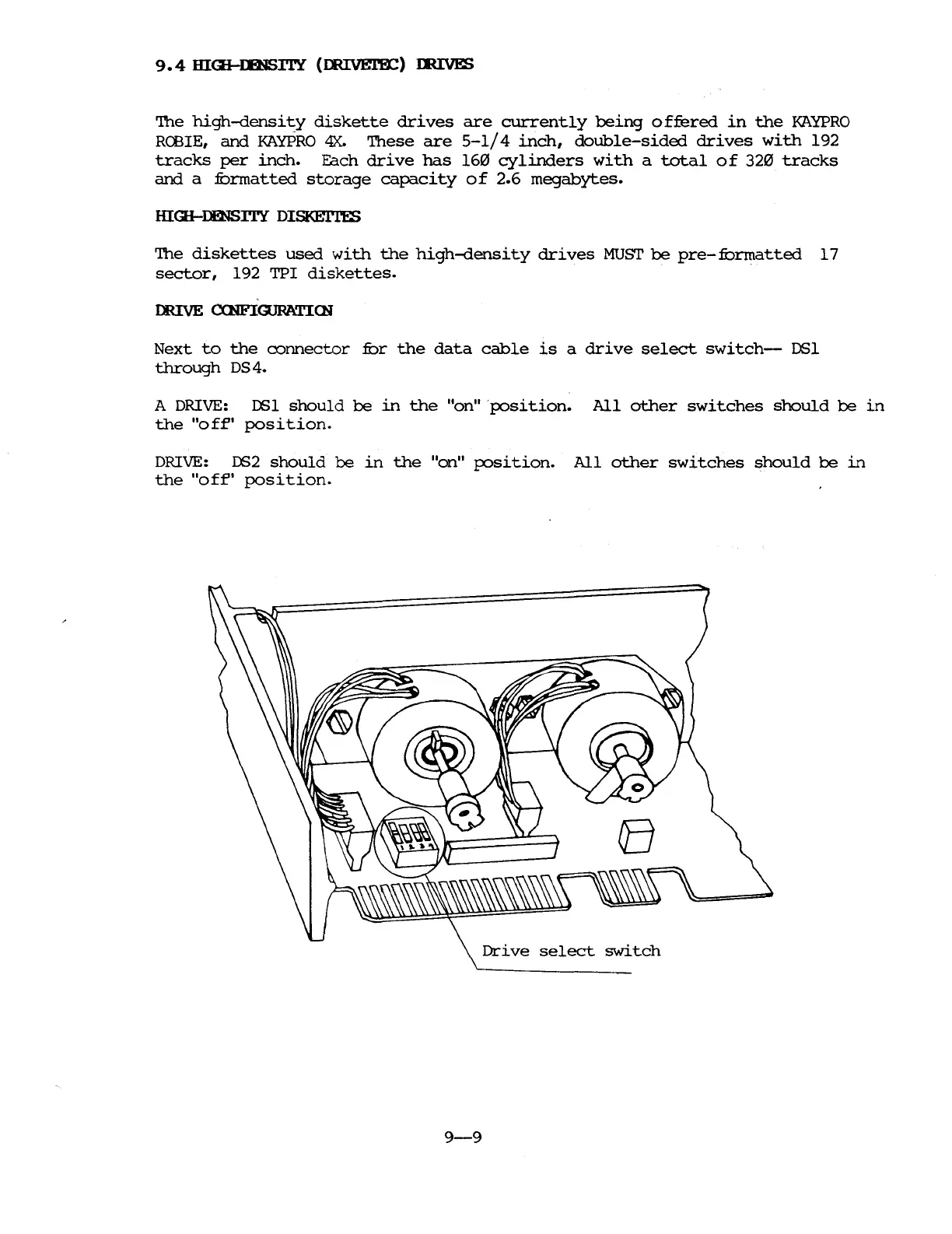

Next to the connector fOr the data cable is a drive select switch- DSI
through DS 4.
A DRIVE: DSI should be in the "on" position. All other switches should be in
the "off' position.
DRIVE: DS2 should be in the "on" position. All other switches should be in
the "off' position.
Drive select switch
9-9
