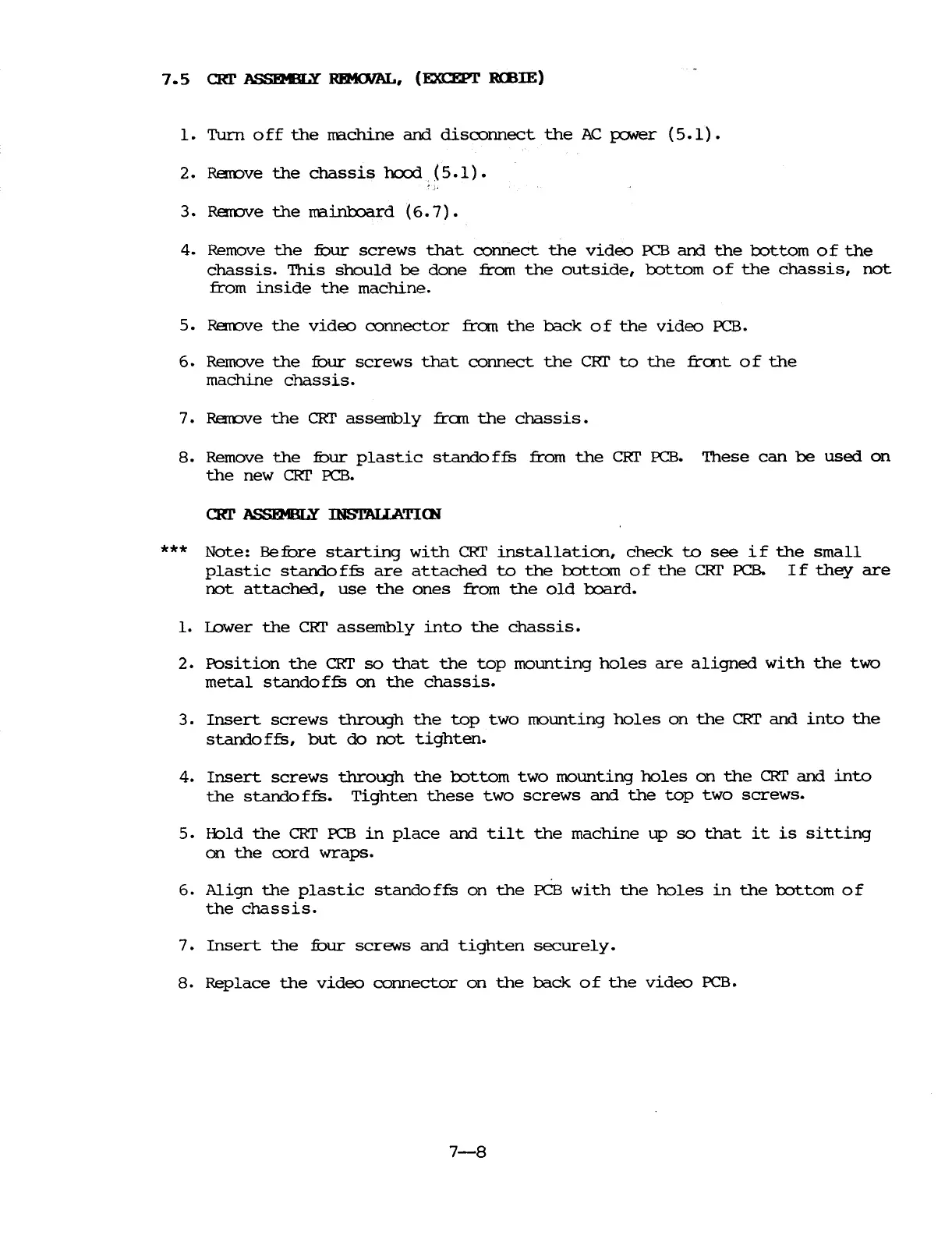

7.5 CRI' ASSIM:ILY RI!M07AL, (EXCEPI' RCBIE)
1. Tum 0 ff the machine and disconnect the AC po.Ner (5.1).
2. Rem::>ve the chassis hcxJd (5.1).
3. Rarove the maintoard (6. 7) •
4. Remove the fuur screws that connect the video PCB and the 1:x>ttom of the
chassis. This should be done from the outside, 1:x>ttom of the chassis, not
from inside the machine.
5. Rem::>ve the video connector from the reck 0 f the video PCB.
6. Remove the fuur screws that connect the CRI' to the frent 0 f the
machine chassis.
7. Rarove the CRI' assembly fran the chassis.
8. Remove the fuur plastic stando ffs from the CRI' PCB. These can be used on
the new CRI' PCB.
***
Note: Befure starting with CRl' installation, check to see if the small
plastic standoffs are attached to the bottom of the CRr PCB. If they are
not attached, use the ones from the old 1:x>ard.
1. Lower the CRI' assembly into the chassis.
2. Position the CRl' so that the top mounting holes are aligned with the two
metal standoffs on the chassis.
3. Insert screws through the top two mounting holes on the CRI' and into the
standoffs, but do not tighten.
4. Insert screws through the 1:x>ttom two mounting holes on the eRr and into
the standoffs. Tighten these two screws and the top two screws.
5. IbId the CRl' PCB in place and tilt the machine up so that it is sitting
on the cord wraps.
6. Align the plastic standoffs on the PCB with the holes in the bottom of
the chassis.
7. Insert the :fOur screws and tighten securely.
8. Replace the video connector on the back of the video PCB.
