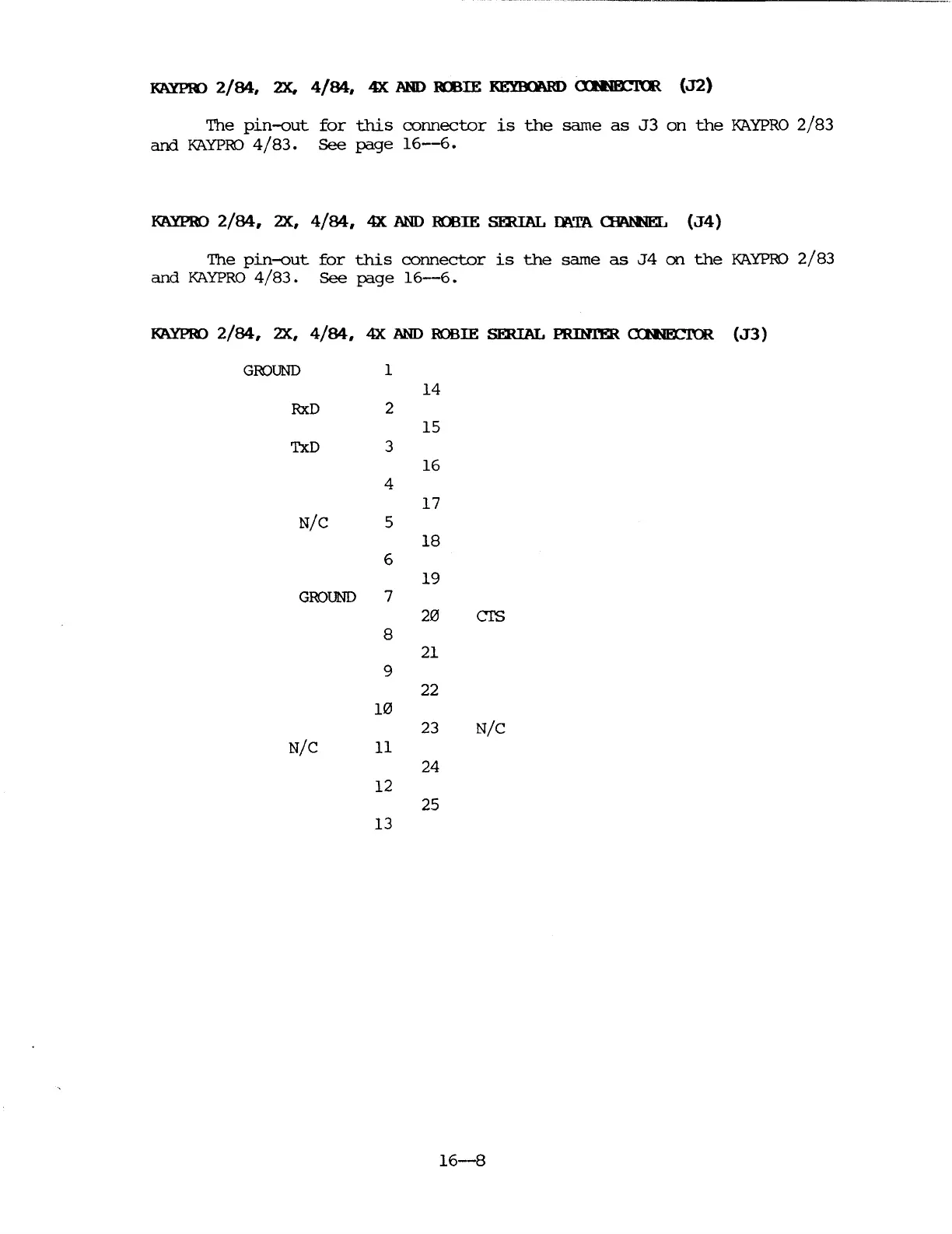

KAYPK> 2/84, 2X, 4/84, 4X AND lU3IE KEYOOARD ~ (J2)
The pin-out for this connector is the same as J3 on the KAYPRO 2/83
and KAYPRO 4/83. see page 16--6.
KAYPRO 2/84, 2X, 4/84, 4X AND RCBIE smIAL DATA rnANNEL (J4)
The pin-out for this connector is the same as J4 on the KAYPRO 2/83
and KAYPRO 4/83. see page 16-6.
KAYPRO 2/84, 2X, 4/84, 4X AND ROBIE smIAL PRIm'ER ~ (J3)
GROUND
1
14
RxD
2
15
TxD
3
16
4
17
N/C
5
18
6
19
GROUND
7
20
8
21
9
22
10
23
N/C
11
24
12
25
13
crs
N/C
16--8
