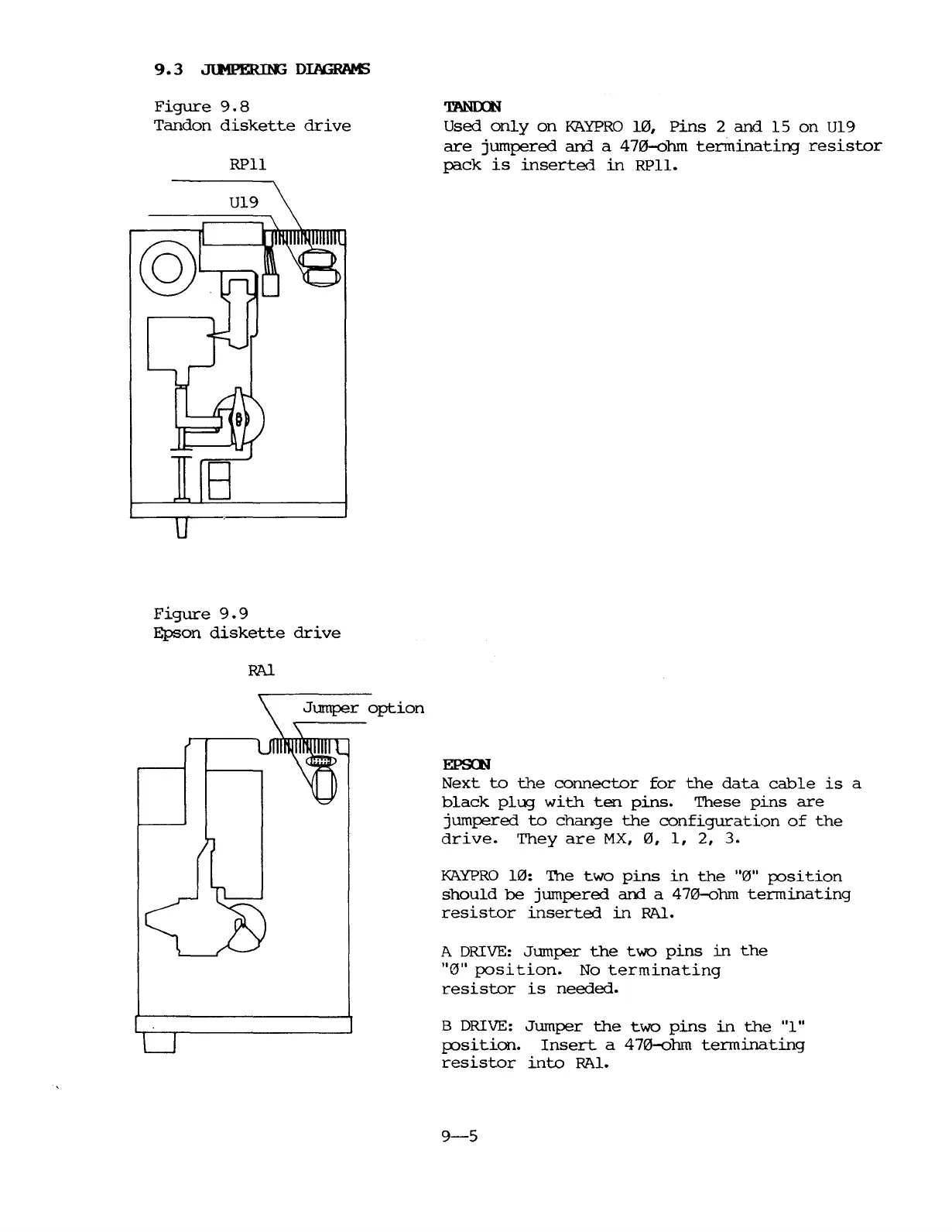

JlH'EI.illl3
DIAGRAMS
Figure
9.8
Tandon
diskette
drive
RPll
Figure
9.9
Epson
diskette
drive
RAl
~
Used
only
on
KAYPRO
10,
Pins
2
and
15
on
U19
are
jumpered
and
a
470-0hm
terminating
resistor
pack
is
inserted
in
RPll.
:EI?&E
Next
to
the
connector
for
the
data
cable
is
a
black
plug
with
ten
pins.
These
pins
are
jumpered
to
change
the
configuration
of
the
drive.
They
are
MX,
0,
1,
2,
3.
KAYPRO
10:
The
two
pins
in
the
"0"
position
should
be
jumpered
and
a
470-0hm
terminating
resistor
inserted
in
RAl.
A DRIVE:
Jrnnper
the
two
pins
in
the
"0"
position.
No
terminating
resistor
is
needed.
B DRIVE:
Jumper
the
two
pins
in
the
"1"
fX>sition.
Insert
a
470-ohm
terminating
resistor
into
Ml.
9-5
