Kaypro 2 - 06-12.TIFF

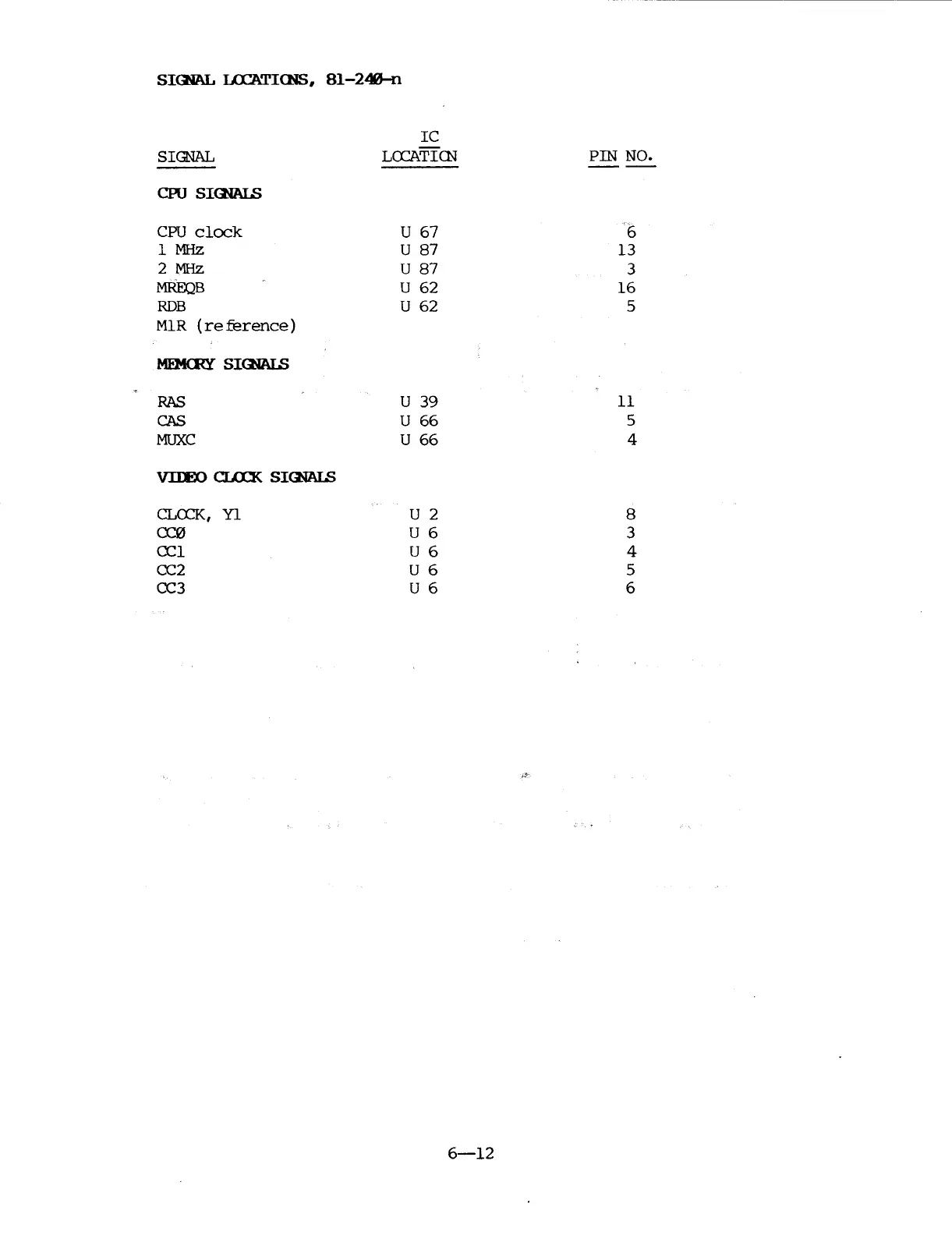

SI~ r.<rATICNS, 81-240-0
IC
SIGNAL
LOCATICN'
PIN NO.
--
CPU SIGIALS
CPU clock
U 67
(;
1 MHz U 87
13
2 MHz
U 87
3
MREQB
U 62
16
RDB U 62 5
M1R (re ference)
MEMrnY SIGIALS
RAS
U 39 11
CAS
U 66
5
MUXC U 66 4
VIIEO CLOCK SIGW.S
CLOCK,
Yl
U 2 8
CC0
U 6
3
CCl U 6 4
CC2 U 6 5
CC3 U 6 6
6-12
