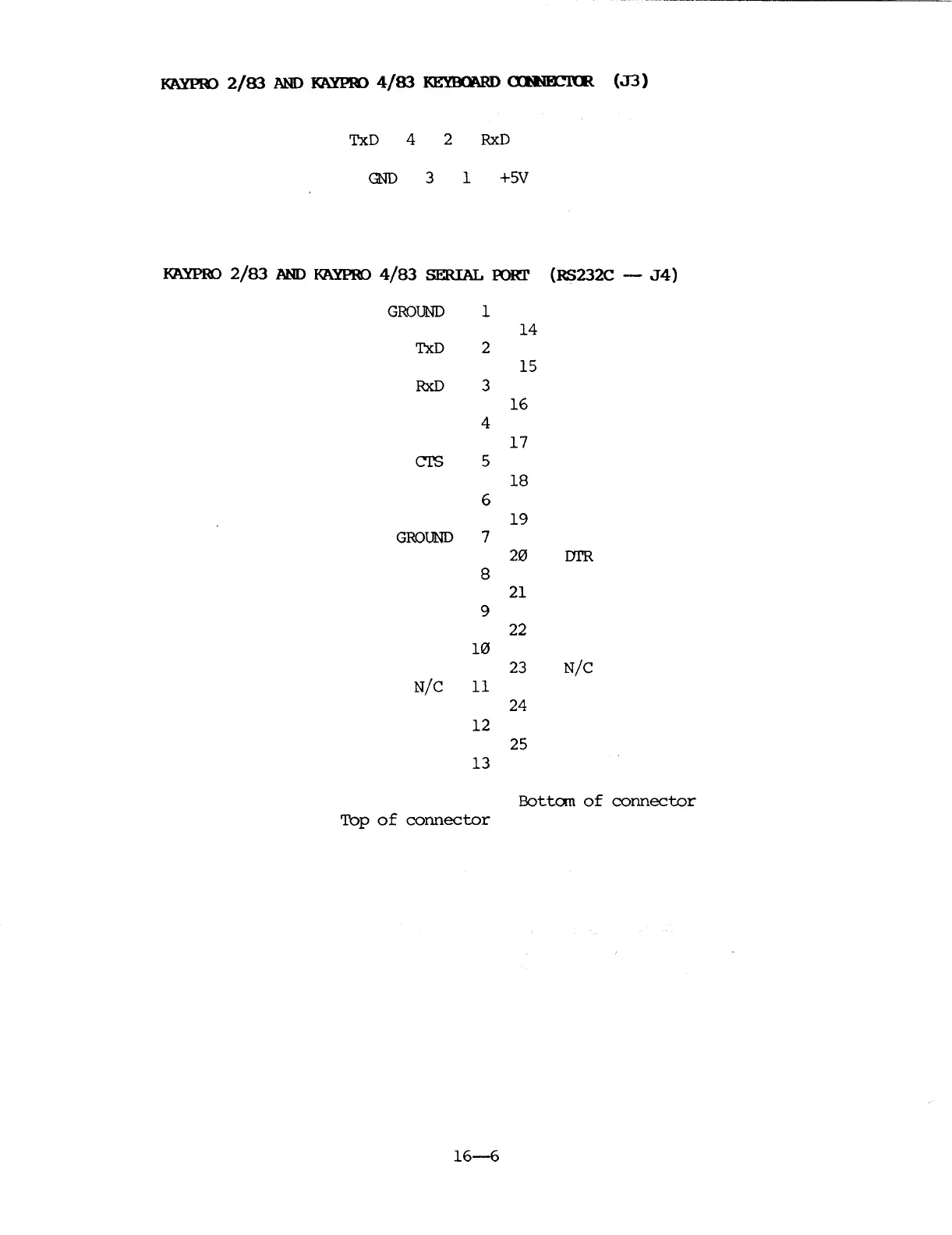

KAYPOO 2/83 AND KAYPK> 4/83 KEYOOl\RD ~ (J3)
TxD 4 2 RxD
GNU 3 1 +5V
KAYPRO 2/83 AND KAYPRO 4/83 SERIAL roRT (RS232C - J4)
GROUND 1
14
TxD 2
15
RxD 3
16
4
17
crs
5
18
6
19
GROUND
7
20
DI'R
8
21
9
22
10
23
N/C
N/C
11
24
12
25
13
Bottan of connector
'Ibp of connector
16-6
